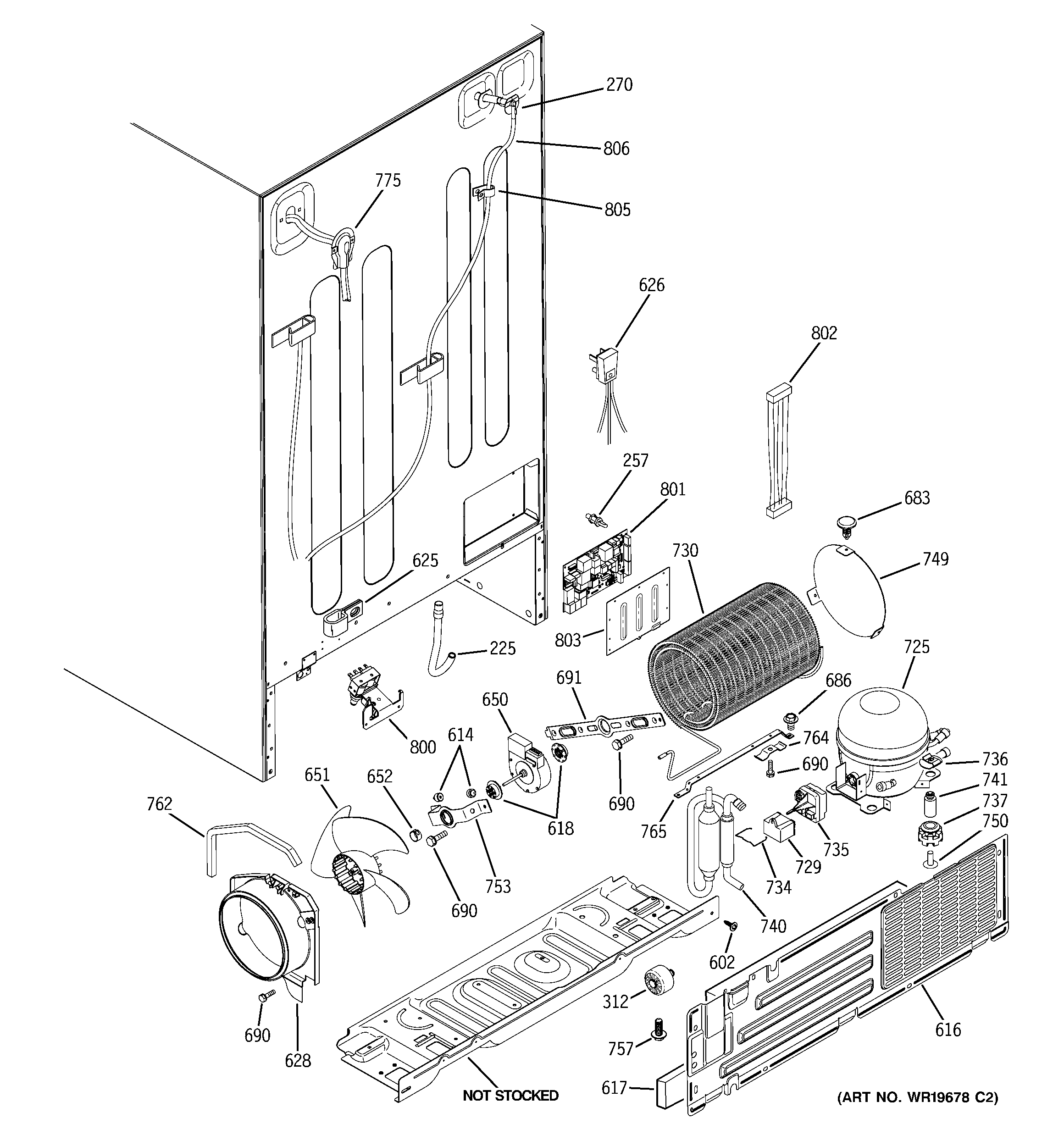

PSS27NGSCCC SEALED SYSTEM & MOTHER BOARD

PSS27NGSCCC SEALED SYSTEM & MOTHER BOARD

Written by

in

PSS27NGSCCC SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR1X1591 GE Refrigerator Screw
614BUMPER
616GEN WR82X10100
617WR14X10198 GE Insulation Cover Assembly Access
618WR02X11331 GE Refrigerator Grommet
625WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628GEN WR17X11650
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X11742 GE Refrigerator Bracket Condenser Fan
725COMPRESSOR VCC3 REPL. KI
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
730WR84X10022 GE Refrigerator Condenser Replacement Kit
734WR02X12004 GE Retainer Clip
735GEN WR08X10069
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753GEN WR02X11621
757WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X10796 GE Refrigerator Water Line Cover
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR49X10152 GE Refrigerator Main Electronic Control Board
802GEN WR23X10205
803WR02X12025 GE Main Board Enclosure
806WR17X11625 GE Refrigerator Plastic Tube
