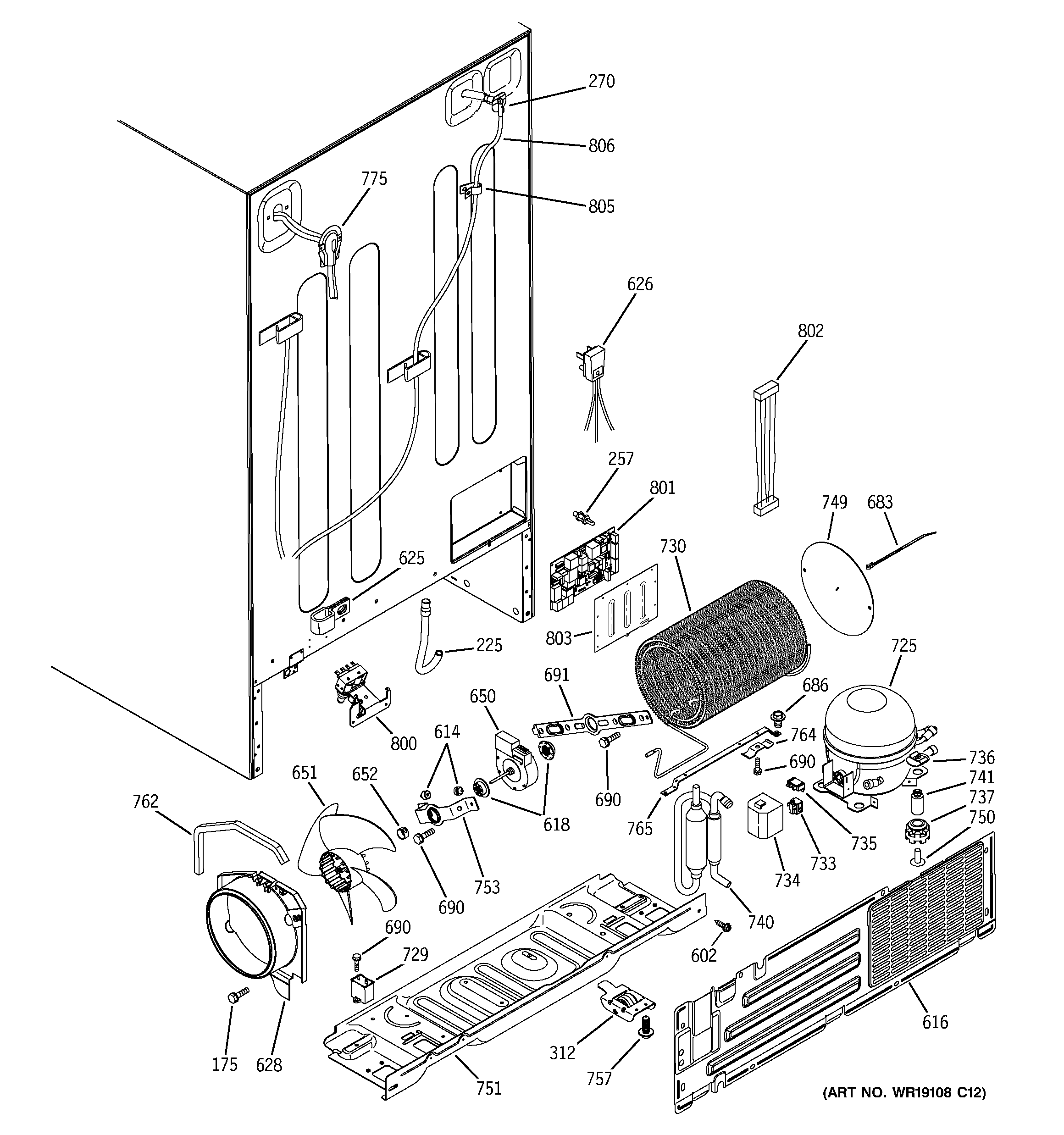

PSS29NHPBCC SEALED SYSTEM & MOTHER BOARD

PSS29NHPBCC SEALED SYSTEM & MOTHER BOARD

Written by

in

PSS29NHPBCC SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X12288 GE Refrigerator Back Mobility Assembly
602WR1X1591 GE Refrigerator Screw
614BUMPER
616WR82X10103 GE Refrigerator Access Cover
618WR02X11331 GE Refrigerator Grommet
625WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628WR17X35527 GE Refrigerator Condenser Fan Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10226 GE Refrigerator Compressor Kit EGYS90
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X26749 GE Refrigerator Start Relay
734GEN WR02X10556
735GEN WR08X10026
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10693
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X10796 GE Refrigerator Water Line Cover
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
802WR23X10507 GE Refrigerator Harness Board INDIV
803GEN WR02X11473
806WR17X11625 GE Refrigerator Plastic Tube
