PSS93BP1TS BODY PARTS

PSS93BP1TS BODY PARTS

Written by

in

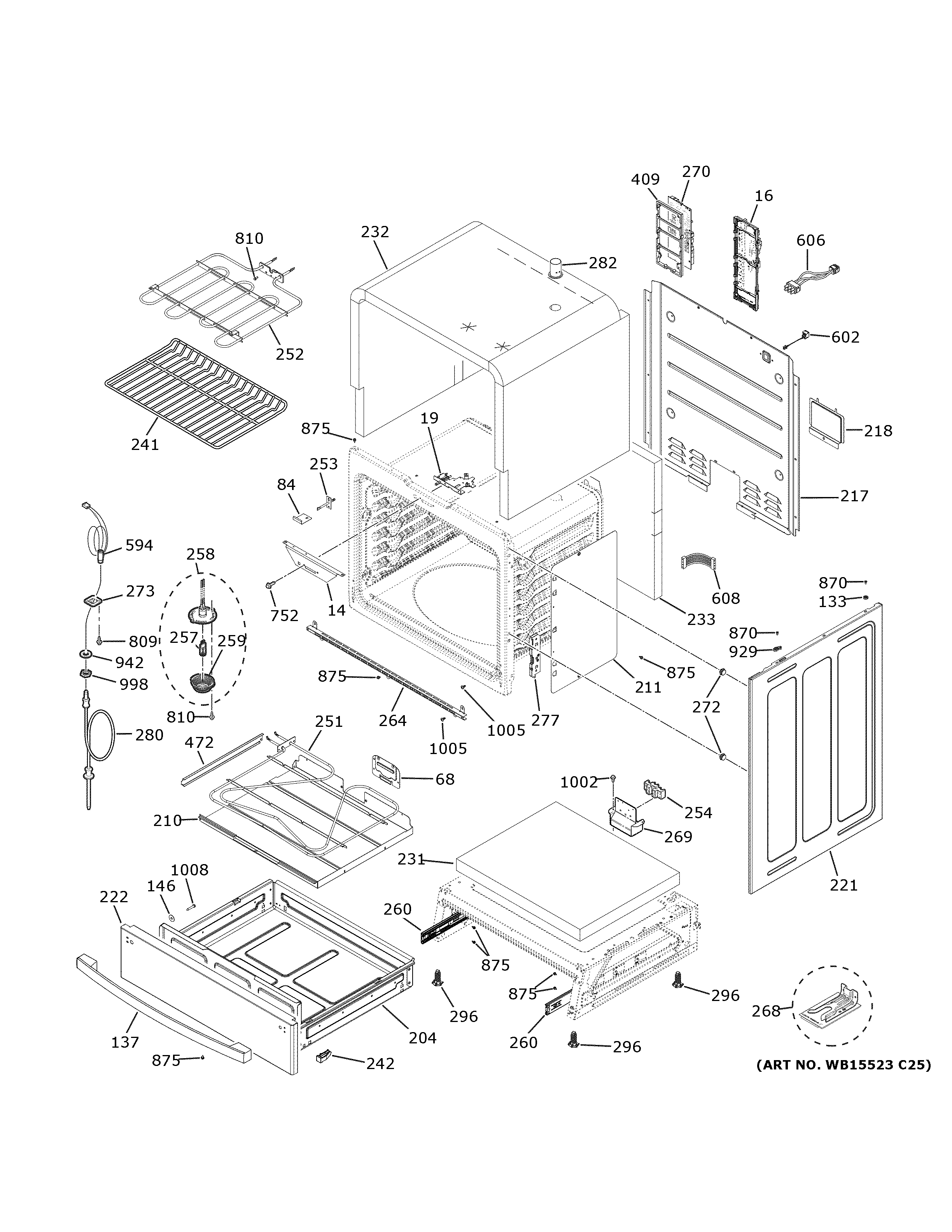

PSS93BP1TS BODY PARTS

Products

PositionProduct
14LATCH COVER
16WB27X44051 GE Control Assembly
19WB18X36540 GE Latch (Plunger Only)
68PLATE COVER (BK)
84WB02T10118 GE Oven Clip Seam
133WB02X29562 GE Range Top Bumper
137WB15X35054 GE Handle and Endcap Assembly
146WB1K5117 GE Oven Washer
204WB63X29521 GE Oven Drawer Body and Slides Assembly
210WB02T10509 GE Bake Element Reflector Pan
211WB34X29158 GE Side Insulation Retainer
217WB34X29069 GE Oven Main Wire Cover
218WB02T10560 GE Range Terminal Cover Assembly
221WB63X28679 GE Oven Side Panel
222WB56X29161 GE Oven Drawer Panel
231WB35X29643 GE Oven Bottom Insulation
232WB35X29076 GE Oven Insulation Wrapper
233WB35X29074 GE Oven Back Insulation
241WB48T10083 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
251WB44X45499 GE Oven Bake Element
252WB44X45491 GE Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258WB25X40248 GE Assembly Halogen Lamp
259WB25T10027 GE Oven Lens Lamp
260WB63X29185 GE Oven Drawer Slide and Bracket Assembly
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
270WB27X29202 GE Oven Control Relay Board
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33651 GE Vent Tube
296WB02X10521 GE Oven Leveling Leg
409WB02X30450 GE Machine Control Frame
472WB49T10007 GE Side Reflector
594WB18X25985 GE Meat Probe with Harness Receiver
602WB18X29523 GE RJ45 Connector Harness
606WB18X36541 GE Temperature Sensor Harness
608WB18X30731 GE Hidden Bake Harness Wire
752WB1K5200 GE Oven Screw 340531
809WB1X536 GE Oven Screw
810WB01M10002 GE Oven Screw
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
929WB02T10026 GE Oven Strike Maintop
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
1008WB1X5364 GE Oven Mounting Screw
