PSW26RSWASS FRESH FOOD SECTION

PSW26RSWASS FRESH FOOD SECTION

Written by

in

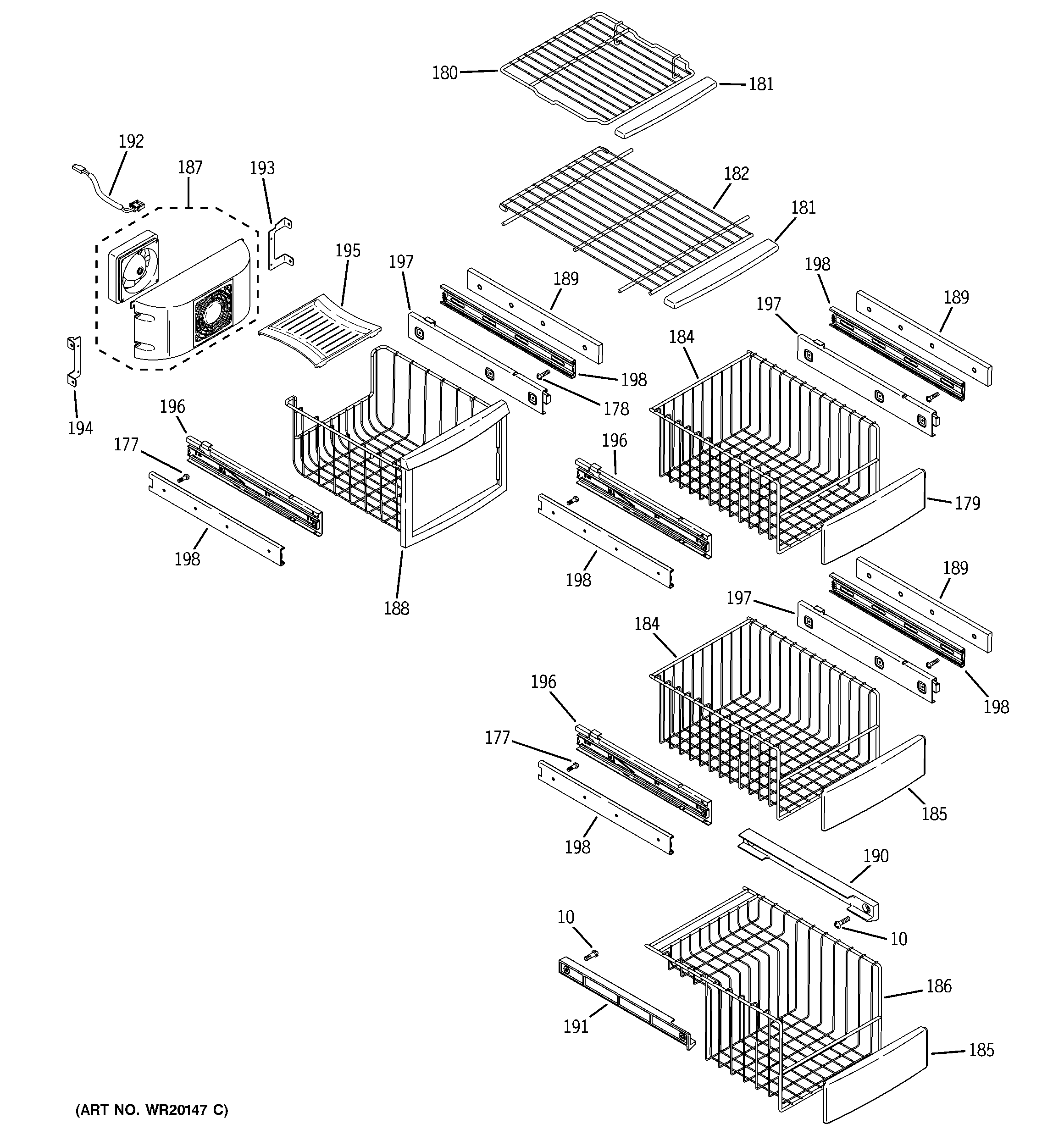

PSW26RSWASS FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
177WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
178WR01X10614 GE Refrigerator Screw 8-18 AB PNT 20 13/16
179WR12X10625 GE Refrigerator Door Handle
180WR71X10965 GE Fixed Refrigerator Shelf
181WR38X10456 GE Refrigerator Trim Shelf
182WR71X10502 GE Refrigerator Adjustable Shelf
184WR21X10155 GE Refrigerator Basket
186WR21X10035 GE Refrigerator Wire Basket Short
187GEN WR71X10742
188GEN WR32X10601
189WR17X10913 GE Spacer
190WR17X10916 GE Refrigerator Slide Basket Right Hand
191WR17X10917 GE Refrigerator Slide Basket Left Hand
192GEN WR23X10534
193GEN WR17X12236
194GEN WR17X12237
195GEN WR31X10055
196WR72X10197 GE Refrigerator Slide & Bracket Assembly L
197WR72X10198 GE Refrigerator Slide Bracket Assembly R
198WR72X10199 GE Refrigerator Slide Liner
200GEN WR17X11702
201GEN WR17X11703
202GEN WR14X10188
204WR02X12188 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
208WR01X10431 GE Refrigerator Nut 6-32 UN
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10154 GE Refrigerator Dial Chill Pan
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220GEN WR02X11851
221WR02X11852 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
224GEN WR02X11853
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256WR17X11713 GE Refrigerator Light Shield
259GEN WR17X11712
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
449WR13X10456 GE Refrigerator Top Hinge & Pin Assembly
451GEN WR13X10445
453WR23X10209 GE Refrigerator Thermostat Assembly
454WR01X10212 GE Refrigerator 8-32 Nut
456WR71X10595 GE Refrigerator Light Bezel
552WR01X10631 GE Screw
609REFRIGERATOR DOOR LIGHT SWITCH
727GEN WR17X12171
758WD2X323D GE Dishwasher Screw Package
790MSWF GE Refrigerator Fast Fill Water Filter
791WR17X22064 GE Refrigerator MSWF Bypass
792MSWF MANIFOLD
793WR17X12205 GE Refrigerator Manifold Insulation
794GEN WR17X12229
810GEN WR17X12238
813GEN WR17X11710
815TROUGH DRAIN ASM
816GEN WR17X11915
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
