PT7050DF1BB BODY PARTS

PT7050DF1BB BODY PARTS

Written by

in

PT7050DF1BB BODY PARTS

Products

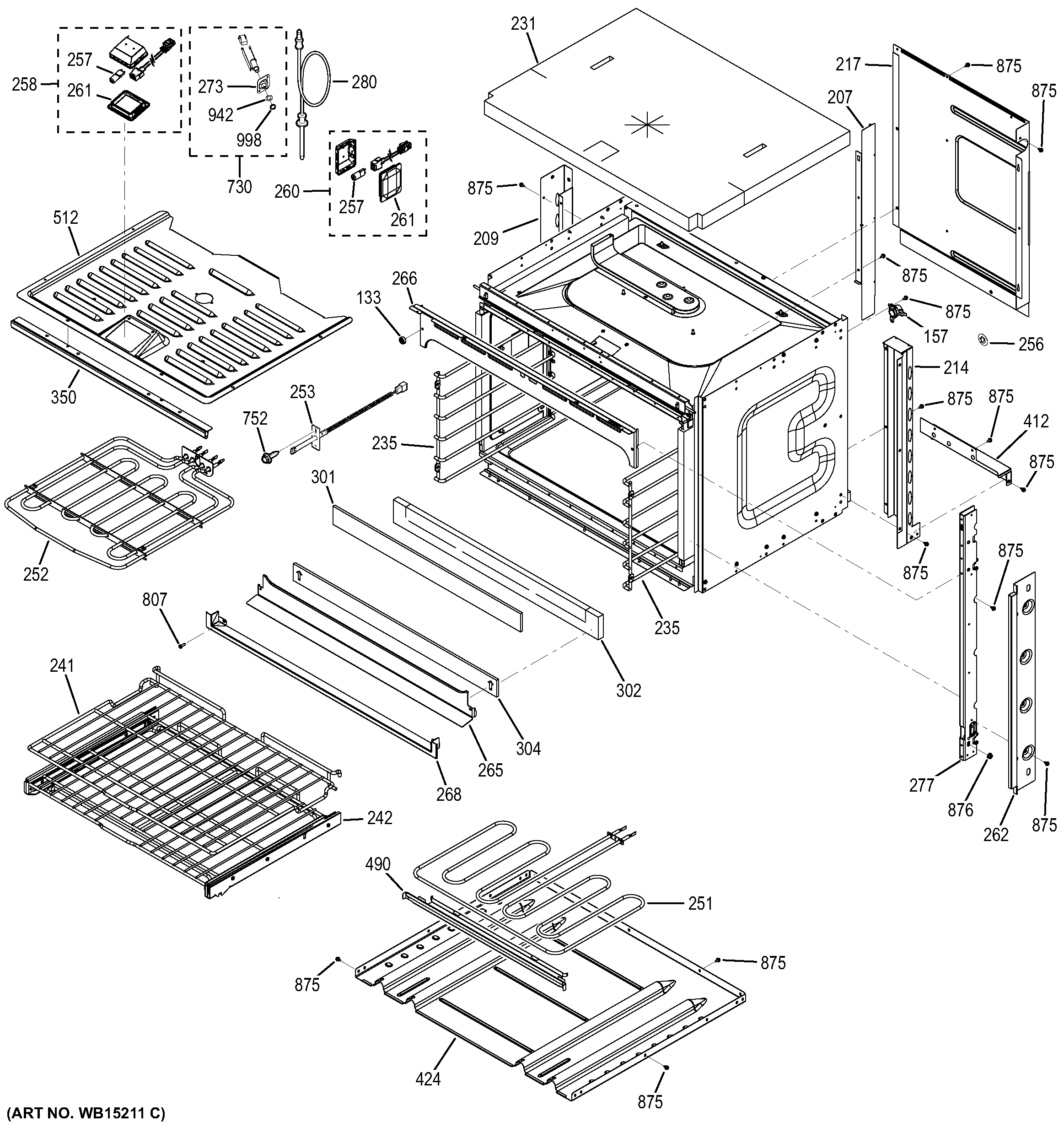

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
231GEN WB35X10019
235WB48T10106 GE Oven Right Rack Guide
235WB48X21766 GE Oven Guide Rack Left
241WB48X23857 GE Oven Flat Rack
242GEN WB48T10104
251WB44T10129 GE Bake Oven Element
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
260WB25X20200 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07X11402 GE Oven Vertical Side Trim (Black)
265TRIM VENT LWR
266WB07T10797 GE Oven Upper Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
273PROBE COVER
277WB07T10754 GE Oven Vertical Right Brace Black
277WB07X35692 GE Left Vertical Brace
280WB20T10024 GE Oven Thermistor Probe
301GEN WB35T10256
302WB35X21666 GE Wall Oven Insulation
304WB35T10274 GE Oven Bottom Trim Insulation
350GEN WB07T10787
412WB34T10151 GE Air Duct Lower Right Cover
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730GEN WB08T10050
752WB1K5200 GE Oven Screw 340531
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
