PT7050DF1WW CONTROL PANEL

PT7050DF1WW CONTROL PANEL

Written by

in

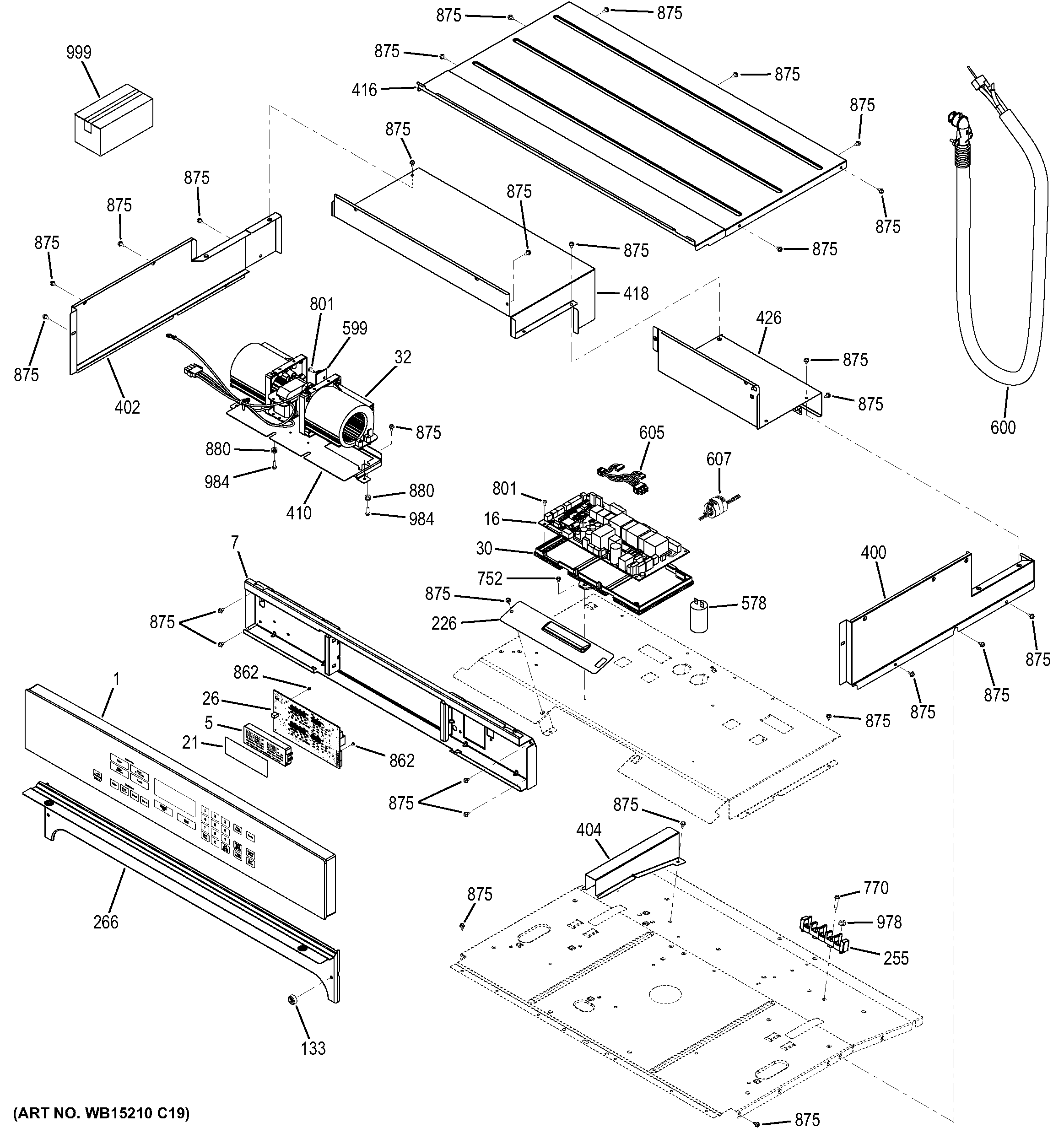

PT7050DF1WW CONTROL PANEL

Products

PositionProduct
1WB56X25729 GE Oven Control Panel Glass Assembly
7MOUNTING PANEL – CONTROL
16BOARD MACHINE CONTROL
21WB27X29602 GE Oven Control Board and Overlay AS
30WB02X20274 GE Plastic Frame Board
32COOLING FAN
133WB03T10341 GE Oven Door Bumper
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07T10797 GE Oven Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10578 GE Oven Optional 6 ft Conduit
600WB18T10567 GE Oven Wire Conduit Assembly
605WB18T10576 GE Main Wire Harness
607GEN WB18X20173
752WB1K5200 GE Oven Screw 340531
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
862GEN WB01X1178
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTR INSTALL OVN DOOR
999WB18T10577 GE Control Latch Harness
999GEN 49-80668P
999GEN 31-17016P
999WB02T10303 GE Cleaner Lubricant
999GEN 31-10856
