PT7550BL7TS CONTROL PANEL

PT7550BL7TS CONTROL PANEL

Written by

in

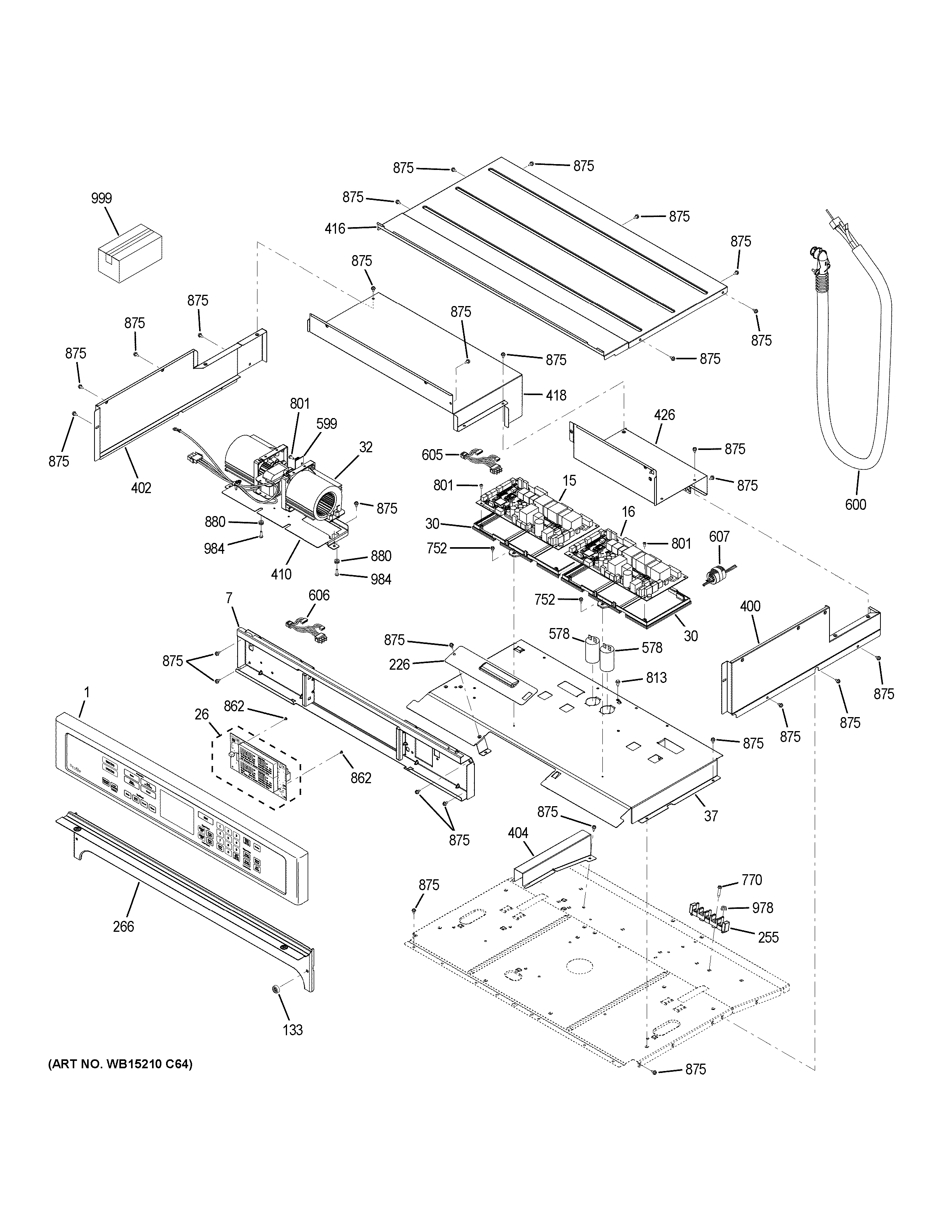

PT7550BL7TS CONTROL PANEL

Products

PositionProduct
1WB56X30829 GE Oven Control Panel Assembly TS
1LABEL WIRE DIAGRAM
7MOUNTING PANEL – CONTROL
15WB27X25552 GE Oven Control Board Machine
16WB27X26042 GE Oven Control Machine Board
26WB27X29601 GE Oven Control Board and Overlay Assembly
30WB02X20274 GE Plastic Frame Board
32WB26X24020 GE Range Cooling Fan
37AIR DIVIDER
133WB03T10341 GE Oven Door Bumper
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07T10797 GE Oven Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18X33486 GE Conduit Wire Assembly
605WB18X24071 GE Main Wire Harness
606WB18X24057 GE Wire Latch Harness
606HARNESS WIRE LATCH COM
607HARNESS DISPLAY MAIN BD
752WB1K5200 GE Oven Screw 340531
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM OWNERS MANUAL
999MANUAL U&C TIP SHEET
999PM MINI MANUAL
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
