PT7550DF7BB LOWER OVEN

PT7550DF7BB LOWER OVEN

Written by

in

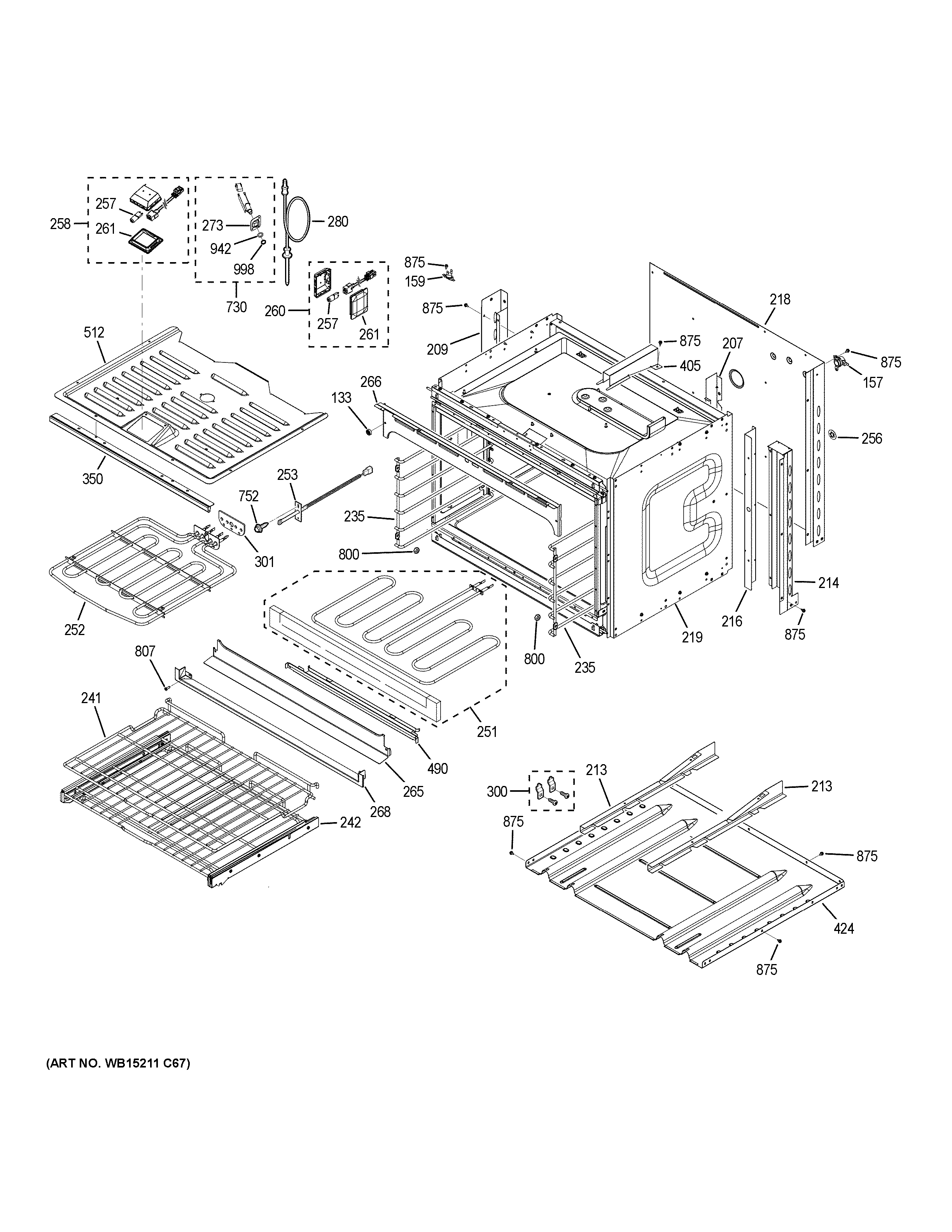

PT7550DF7BB LOWER OVEN

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207DIVIDER AIR CENTER
209WB34X21910 GE Oven Rear Channel LT
213WB34T10163 GE Air Divider Bottom
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
219WB34X21913 GE Side Insulation Retainer
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X23857 GE Oven Flat Rack
242WB48X21764 GE Oven Rack Slide Assembly
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31223 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
265WB07X21783 GE Oven Lower Vent Trim
266WB07T10797 GE Oven Upper Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
273PROBE COVER
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
405WB34T10160 GE Lower Air Channel
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5200 GE Oven Screw 340531
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
