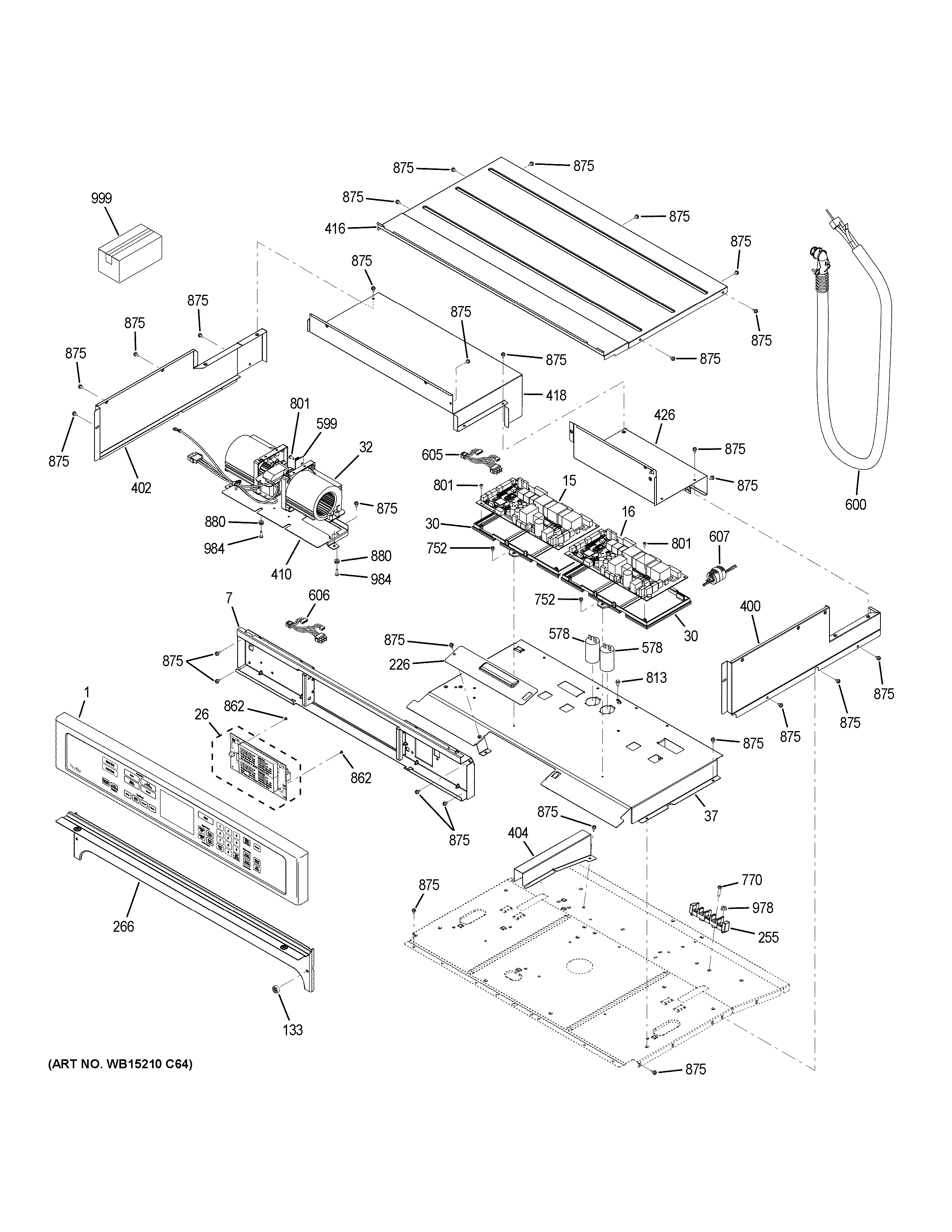

PT7550EH9ES CONTROL PANELadmin2025-04-26T10:01:36+00:00PT7550EH9ES CONTROL PANEL ProductsPositionProduct1WB56X25763 GE Control Panel Assembly1LABEL WIRE DIAGRAM7MOUNTING PANEL - CONTROL15WB27X25552 GE Oven Control Board Machine16WB27X26042 GE Oven Control Machine Board26WB27X29601 GE Oven Control Board and Overlay Assembly30WB02X20274 GE Plastic Frame Board32WB26X31060 GE Oven Blower Fan37AIR DIVIDER133WB03T10341 GE Oven Door Bumper226WB34T10161 GE Access Latch Cover255WB17K10001 GE Oven Block Terminal266WB07T10797 GE Oven Upper Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB34X32773 GE Rear Top Cover Kit426WB35T10273 GE Oven Rear Wire Cover578WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18T10580 GE Oven 6 FT Optional Conduit600WB18X33486 GE Conduit Wire Assembly605WB18X24071 GE Main Wire Harness606HARNESS WIRE LATCH COM606WB18X24057 GE Wire Latch Harness607HARNESS DISPLAY MAIN BD752WB1K5200 GE Oven Screw 340531770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw862GEN WB01X1178875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS999PM OWNERS MANUAL999MANUAL U&C TIP SHEET999WB02T10303 GE Cleaner Lubricant999PM MINI MANUAL
