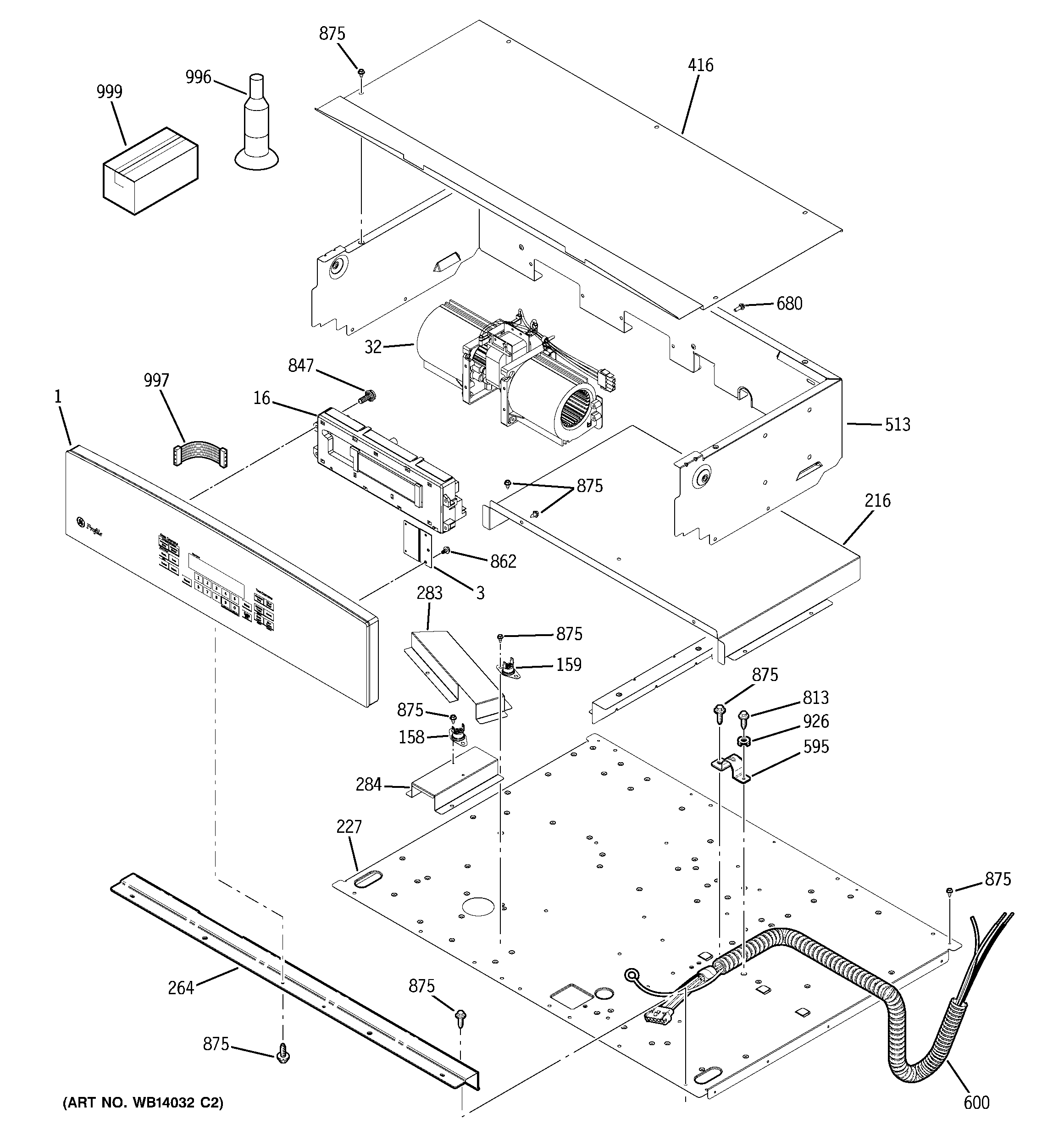

PT916DR1WW CONTROL PANEL

PT916DR1WW CONTROL PANEL

Written by

in

PT916DR1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11324
1GEN WB36T11323
1GEN WB36T11322
3GEN WB02T10386
16WB27T11442 GE Oven Control Assembly
32WB26X10264 GE Oven Fan Kit
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10444 GE Conduit Wire Assembly 52"
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
996WB02T10303 GE Cleaner Lubricant
997GEN WB18T10451
999GEN 31-14861
999INSTR INSTALL OVN DOOR
999PM MANUAL USE & CARE
999GEN 31-10730
