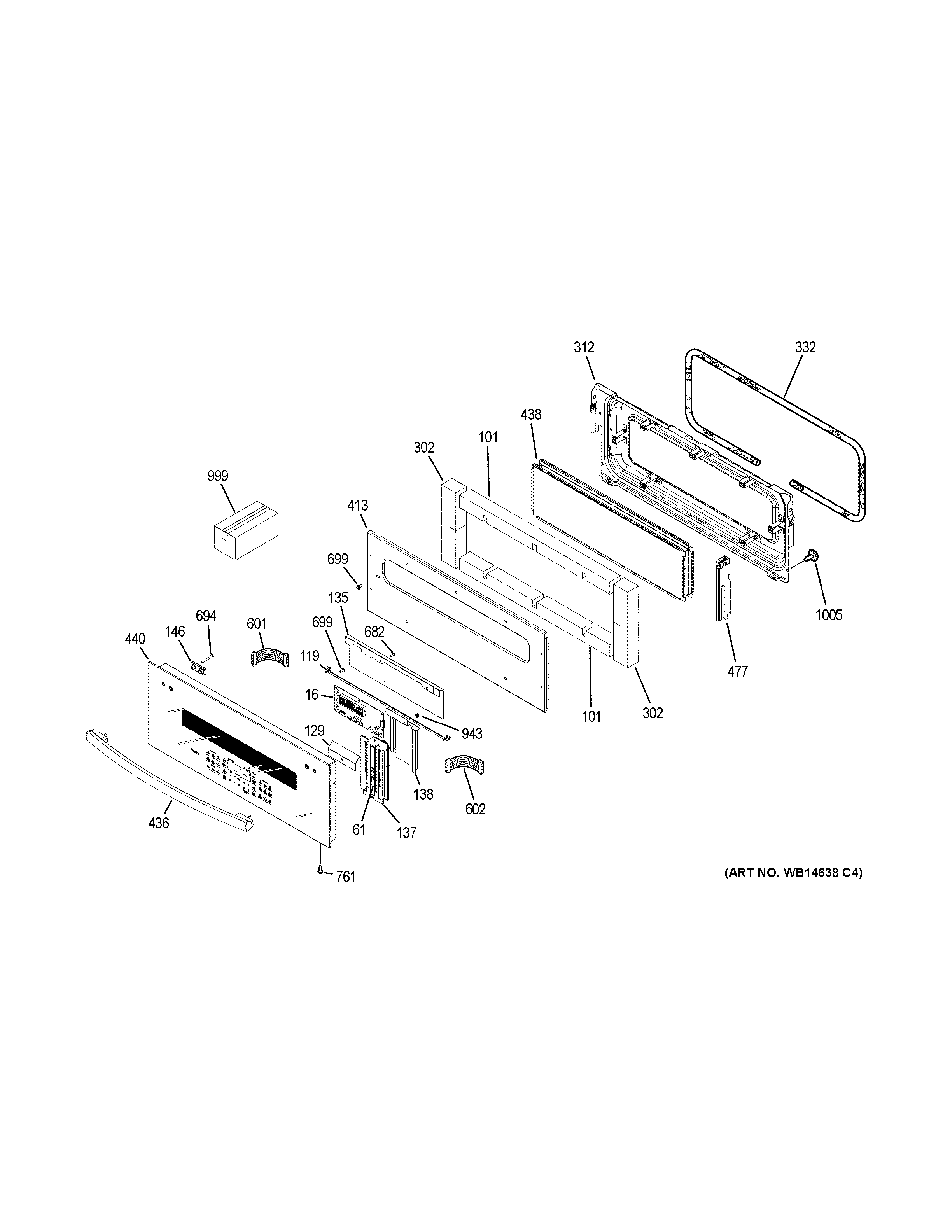

PT9200SL1SS CONTROL PANEL & DOOR

PT9200SL1SS CONTROL PANEL & DOOR

Written by

in

PT9200SL1SS CONTROL PANEL & DOOR

Products

PositionProduct
16WB27X27912 GE Display Module Control
61WB63T10143 GE Oven Base Slider Assembly
101WB35T10167 GE Oven Door Top Insulation Up
119WB02T10444 GE Oven Door Wiper
129COVER SLIDER TOP
135WB02T10446 GE Oven Touch Board Cover
138COVER SLIDER
146HANDLE BRACKET MTG (BK)
302WB35T10168 GE Oven Upper Side Insulation Door
312WB63X20011 GE Oven Upper Back Liner Assembly
332WB35X27911 GE Oven Door Gasket
413WB02T10423 GE Door Insulation Retainer
436WB15X27281 GE Oven Handle and End Cap Assembly
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X27909 GE Upper Outer Door Assembly 30"
477WB10T10101 GE Oven Upper Receiver Hinge
477WB10T10100 GE Oven Right-Hand Hinge Receiver
601WB18T10420 GE Oven LED Connector Ribbon
602WB18X31100 GE Oven Door Signal Harness
602GLASS TOUCH RIBN CONN
682WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
694WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
699WB1M1 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
943WB01T10074 GE Nut Keps 8-32 Special
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM OWNERS MANUAL
1005WB01T10008 GE Oven Screw 10-32
