PT9200SL1SS LOWER OVEN

PT9200SL1SS LOWER OVEN

Written by

in

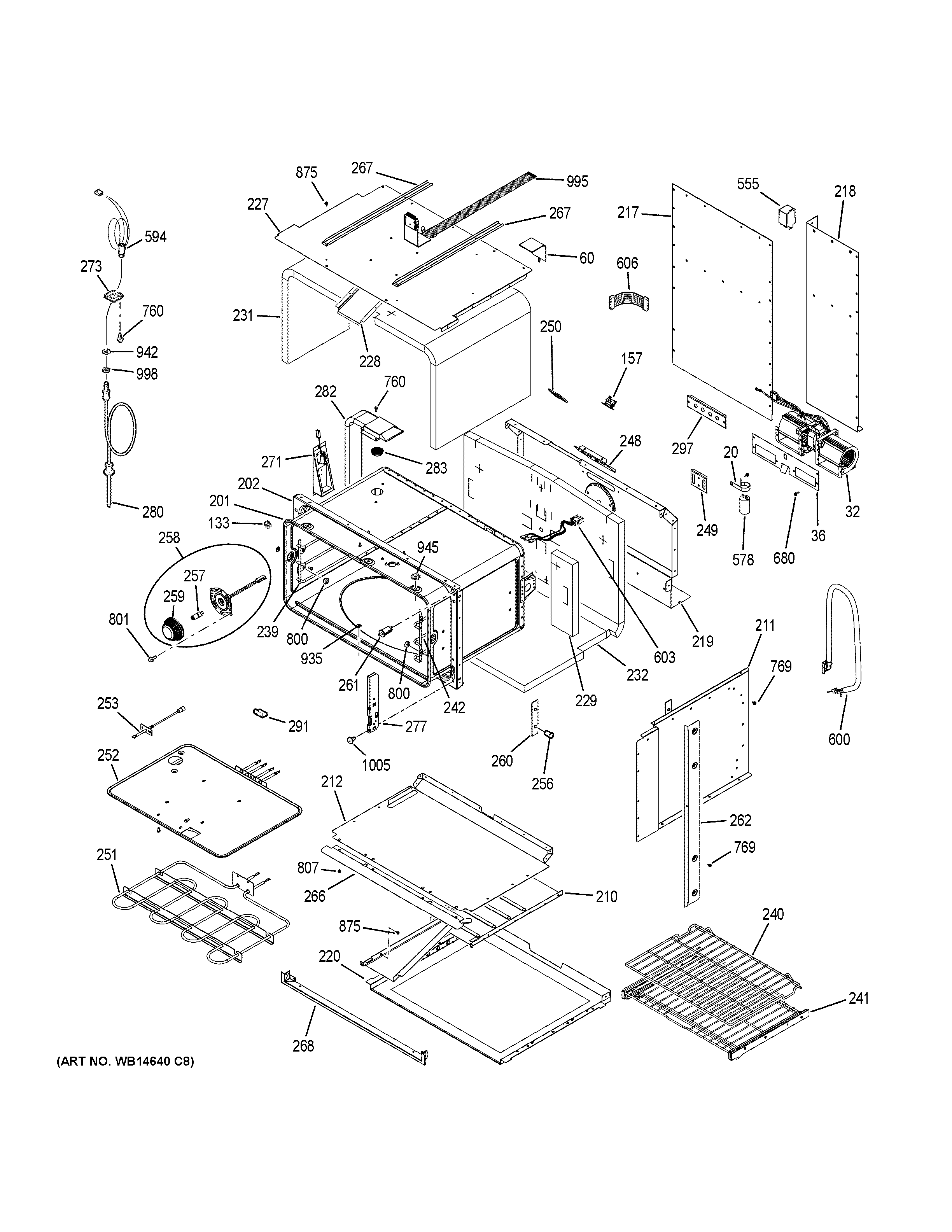

PT9200SL1SS LOWER OVEN

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
32WB26X31059 GE Oven Blower Fan
36PLATE BLOWER ASM
60SLEEVE SPRING STEEL
133WB01T10022 GE Oven Door Bumper
157WB24T10161 GE Oven High Limit Switch
201OVEN CAVITY WRAPPER ASM LWR
202FRONT FRAME LOWER
210RAIL BTM VENTURI SUPT
211RETAINER INSLN LWR SIDE
212RETAINER INSLN LWR BTM
217COVER RELAY BOARD
218WB02T10435 GE Back Cover
219LOWER BACK RETAINER INSULATION
220GEN WB02T10422
227RETAINER INSN LWR ASM
228RETAINER LATCH
229WB35T10208 GE Lower Back Insulation
231INSULATION WRAPPER
232INSULATION BACK/BTM LWR
239OVEN RACK GUIDE LH (GY)
240WB48X27904 GE Oven Rack
241OVEN RACK SLIDE ASM
242OVEN RACK GUIDE RH (GY)
248PLATE BACK BROIL LWR
249PLATE BACK BAKE
250GASKET BACK LAMP
251WB44T10092 GE Oven Lower Bake Element Assembly
252WB44T10091 GE Oven Lower Broil Element Assembly
253WB21X22134 GE Oven Sensor Assembly
256WB01T10107 GE Oven Bolt Retainer
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25T10093 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
260CAVITY BRACE ASM
261WB24T10160 GE Oven High AMP SPDT Switch
262TRIM VERT SDE (LT)
266DIVIDER AIR
267WB63T10141 GE Support Rail
268WB07T10647 GE Oven Bottom Trim Assembly
271SWITCH SAIL ASM
273GEN WB02X8309
277WB10X28563 GE Oven Receiver Hinge
280WB20T10024 GE Oven Thermistor Probe
282TUBE VENT ASM LWR
283WB38T10033 GE Oven Smoke Eliminator
291GEN WB02X9152
297PLATE BACK CONVX
555WB18T10352 GE Oven Relay
578WB27T10662 GE Oven Capacitor
594WB18T10394 GE Oven Wire Probe Harness
600OPTIONAL 6' CONDUIT WIRE ASM
600CONDUIT WIRE ASM
603PLUNGER HARNESS WIRE
606SIGNAL HARNESS WIRE
680WR1X1850 GE Refrigerator Screw
760WB1X536 GE Oven Screw
769WB1X500D GE Oven Screw Package
800WB01X21270 GE Oven Rack Guide Nut
801WB01M10002 GE Oven Screw
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
995WB18T10419 GE Oven Connector Ribbon Assembly
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
