PT9200SL3SS CONTROL PANEL & UPPER DOOR

PT9200SL3SS CONTROL PANEL & UPPER DOOR

Written by

in

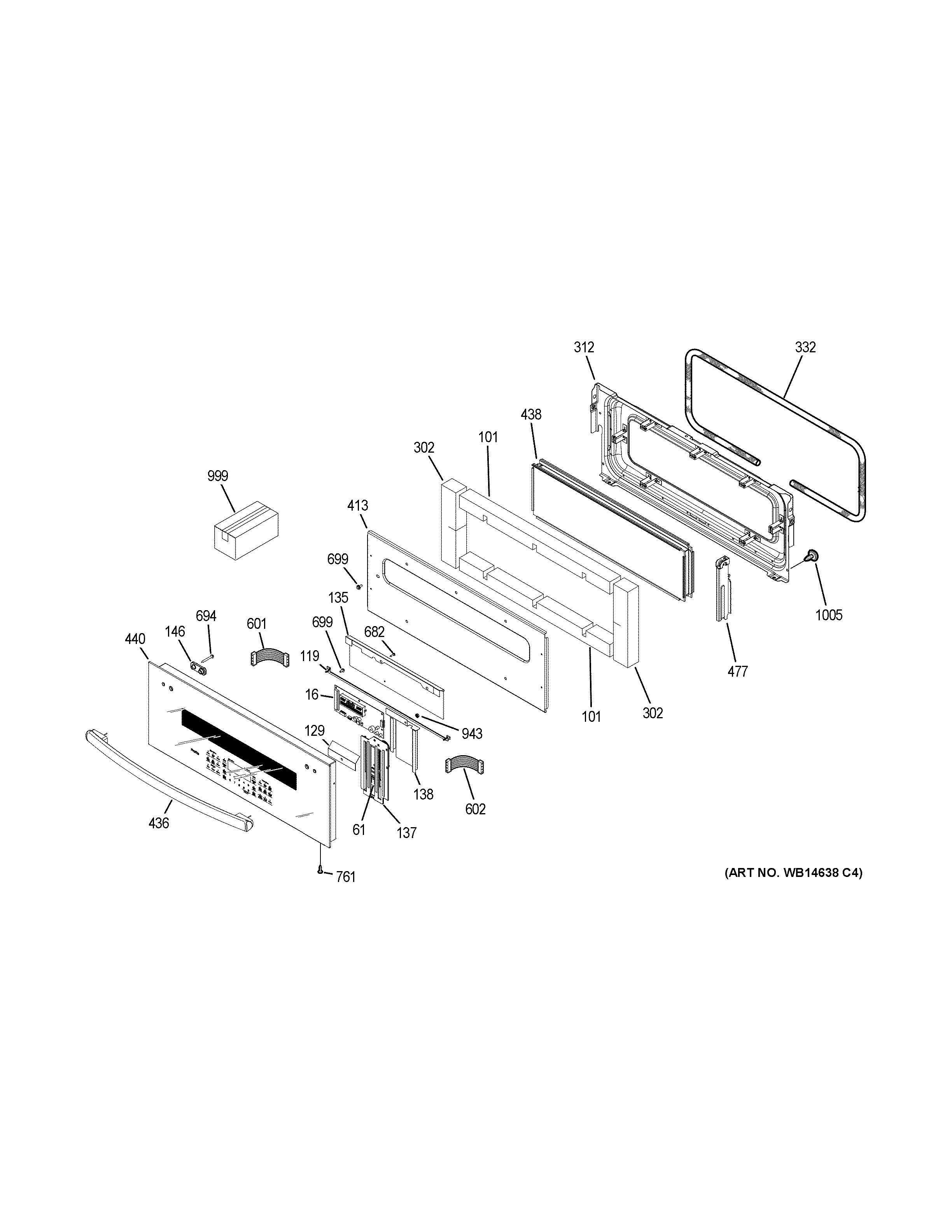

PT9200SL3SS CONTROL PANEL & UPPER DOOR

Products

PositionProduct
16WB27X30360 GE White Display Control Module
101WB35T10167 GE Oven Door Top Insulation Up
119WB02T10444 GE Oven Door Wiper
129COVER SLIDER TOP
135WB02T10446 GE Oven Touch Board Cover
137WB63T10143 GE Oven Base Slider Assembly
138COVER SLIDER
146HANDLE BRACKET MTG (BK)
302WB35T10168 GE Oven Upper Side Insulation Door
312WB63X20011 GE Oven Upper Back Liner Assembly
332WB35X27911 GE Oven Door Gasket
413UPPER OVEN DOOR INSULATION RETAINER
436WB15X27281 GE Oven Handle and End Cap Assembly
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X30359 GE Oven Assembly Outer Door
477WB10T10101 GE Oven Upper Receiver Hinge
477WB10T10100 GE Oven Right-Hand Hinge Receiver
601WB18T10420 GE Oven LED Connector Ribbon
602GLASS TOUCH RIBN CONN
602WB18X31100 GE Oven Door Signal Harness
682WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
694WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
699WB1M1 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
943WB01T10074 GE Nut Keps 8-32 Special
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
1005WB01T10008 GE Oven Screw 10-32
