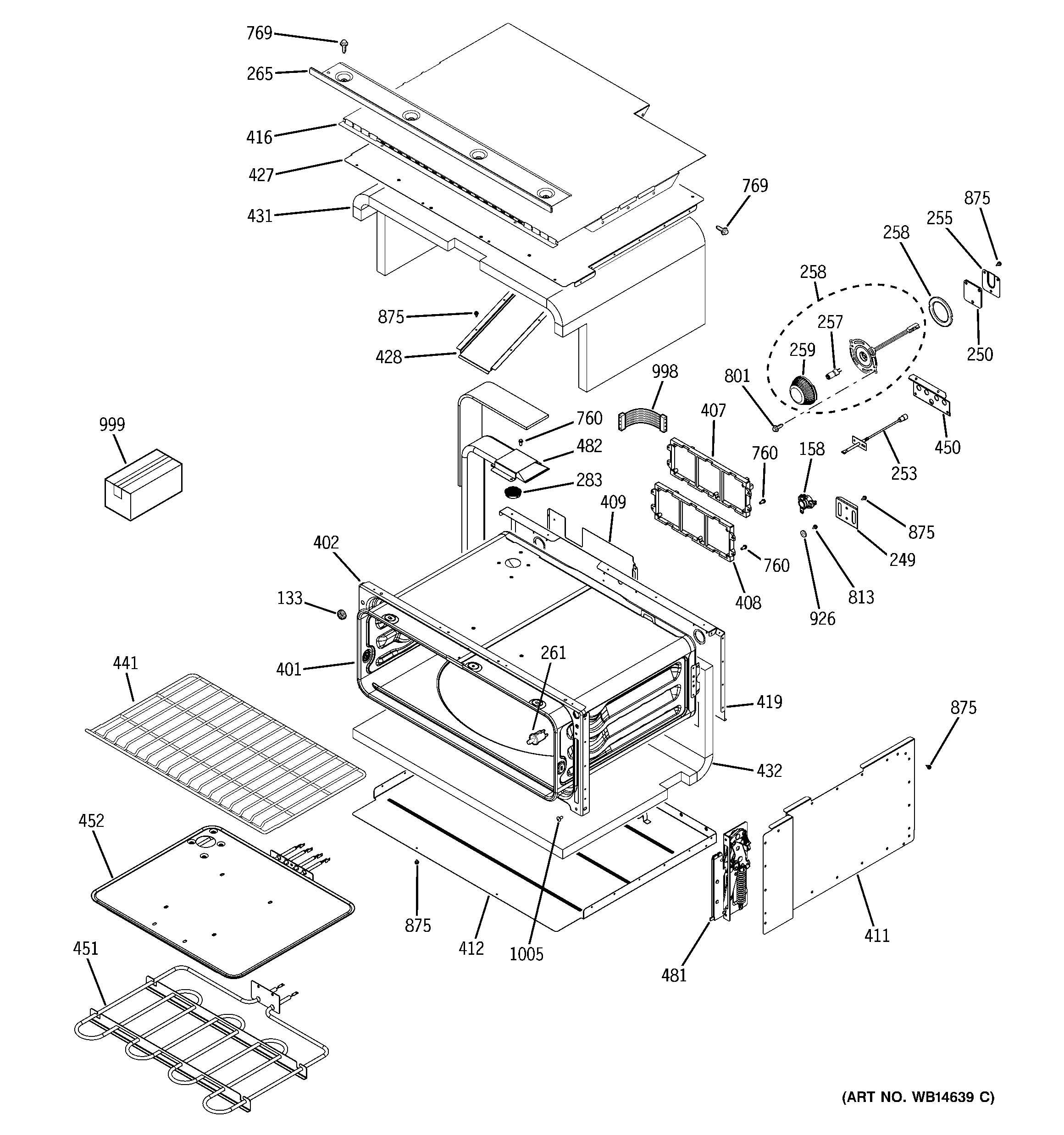

PT925DN1BB UPPER OVEN

PT925DN1BB UPPER OVEN

Written by

in

PT925DN1BB UPPER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
158WB24T10155 GE Oven High Limit Switch
249PLATE BACK BAKE
250PLATE BACK BROIL LWR
253WB21X22134 GE Oven Sensor Assembly
255GEN WB02T10451
257WB08T10023 GE Oven Halogen Lamp 35W 130V
257GASKET BACK LAMP
258GEN WB08T10006
258GEN WB25T10025
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
265WB07T10650 GE Top Cabinet Trim (Black)
283WB38T10033 GE Oven Smoke Eliminator
401WB63T10136 GE Wrapper Oven Cav Assembly Upper
402WB63T10137 GE Upper Front Frame
407WB27T11068 GE Oven Frame Assembly
408WB27T11069 GE Oven Frame Assembly Board
409GEN WB02T10441
411RETAINER INSLN UPR SIDE
411RETAINER INSLN UPR SIDE
412WB02T10433 GE Rtner Insulation Upper Bottom Assembly
416COVER TOP
419RETAINER INSLN UPR BACK
427RETAINER INSN UPR ASM
431INSULATION WRAPPER
432INSULATION BACK/BTM UPR
441WB48T10042 GE Oven Rack
450WB02T10436 GE Upper Broil Back Plate
451WB44T10090 GE Oven Bake Element Assembly
452WB44T10089 GE Oven Broil Shield Assembly
481WB10K10030 GE Hinge Assembly
481WB10K10031 GE Oven Hinge Assembly
482TUBE VENT ASM UPR
760WB1X536 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
926GROUND WASHER
998WB18X31102 GE Sail Switch and Probe Harness
998WB1X5572 GE Oven Nut
998GLASS TOUCH RIBN CONN
998WB18T10426 GE Oven Relay Board and Sensor Harness
999GEN 31-10696
999GEN 31-10699
999GEN 31-14768
999GEN 49-80548
1005WB01T10008 GE Oven Screw 10-32
