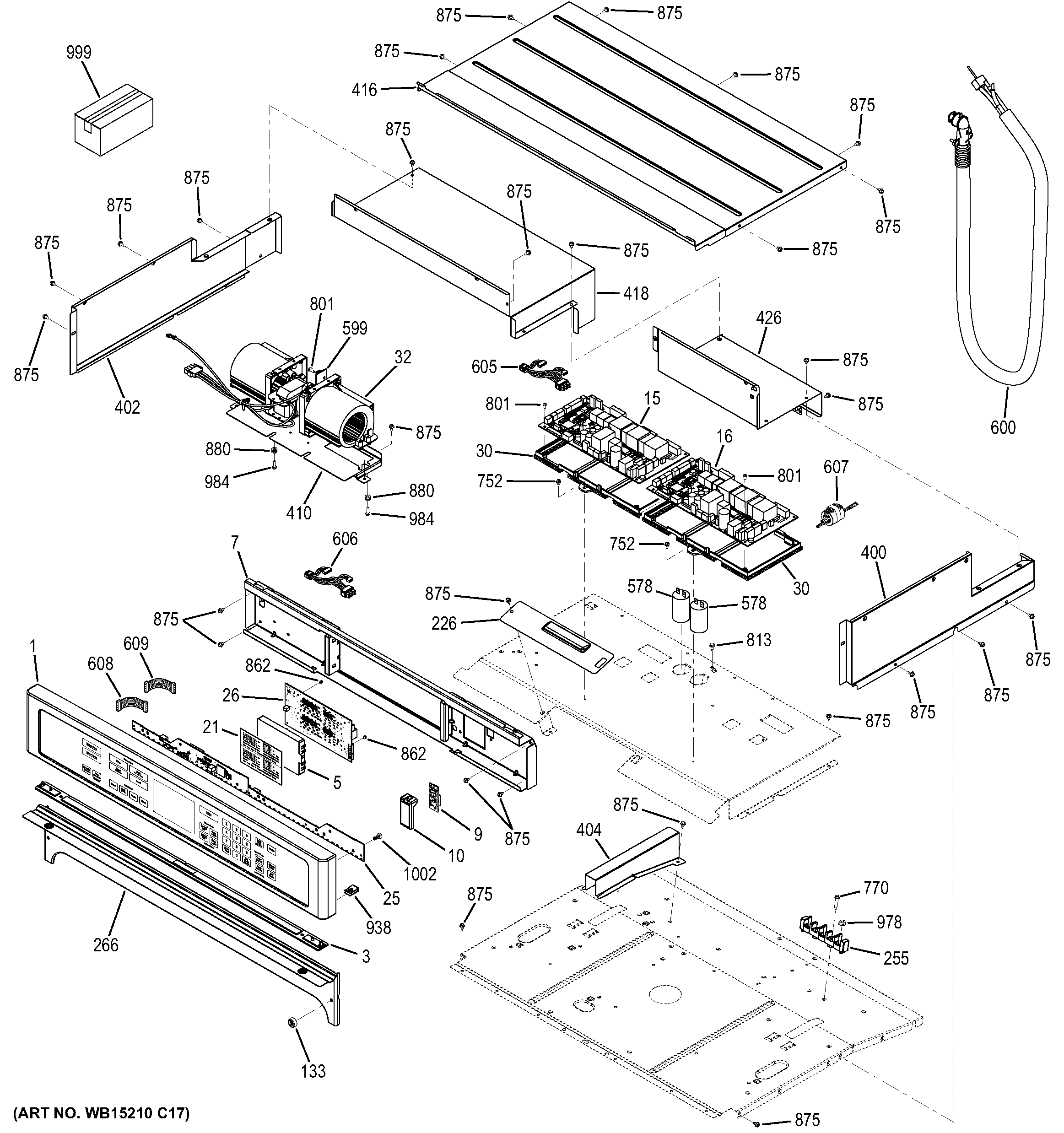

PT9550DF1BB CONTROL PANEL

PT9550DF1BB CONTROL PANEL

Written by

in

PT9550DF1BB CONTROL PANEL

Products

PositionProduct
1GEN WB27T11483
3WB34T10166 GE Assembly Diffuser and Tape
7WB34X29940 GE Refrigerator Control Panel Mounting Bracket
9WB27X31514 GE Oven WiFi Module Kit
10WB02X20265 GE Transceiver Housing
15WB27X21657 GE Oven Control Board Machine
16WB27X25553 GE Oven Machine Control Board
21WB27X29601 GE Oven Control Board and Overlay Assembly
25WB27T11522 GE Oven LED Lights Board
30WB02X20274 GE Plastic Frame Board
32COOLING FAN
133WB03T10341 GE Oven Door Bumper
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07T10800 GE Oven Upper Black Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18T10573 GE Oven Wire Assembly Conduit
605GEN WB18T10595
606GEN WB18X20177
607GEN WB18X20176
608WB18T10557 GE Oven Wifi Display Wire Harness
609WB18T10558 GE Oven LED Jumper Wire Harness
752WB1K5200 GE Oven Screw 340531
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
880WB01T10128 GE Grommet
938WB1K5209 GE Oven Clip
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTR INSTALL OVN DOOR
999GEN 49-80668P
999WB02T10303 GE Cleaner Lubricant
999GEN 49-80678
999GEN 31-10856
999GEN 31-17016P
1002WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn
