PT9551SL3SS CONTROL PANEL

PT9551SL3SS CONTROL PANEL

Written by

in

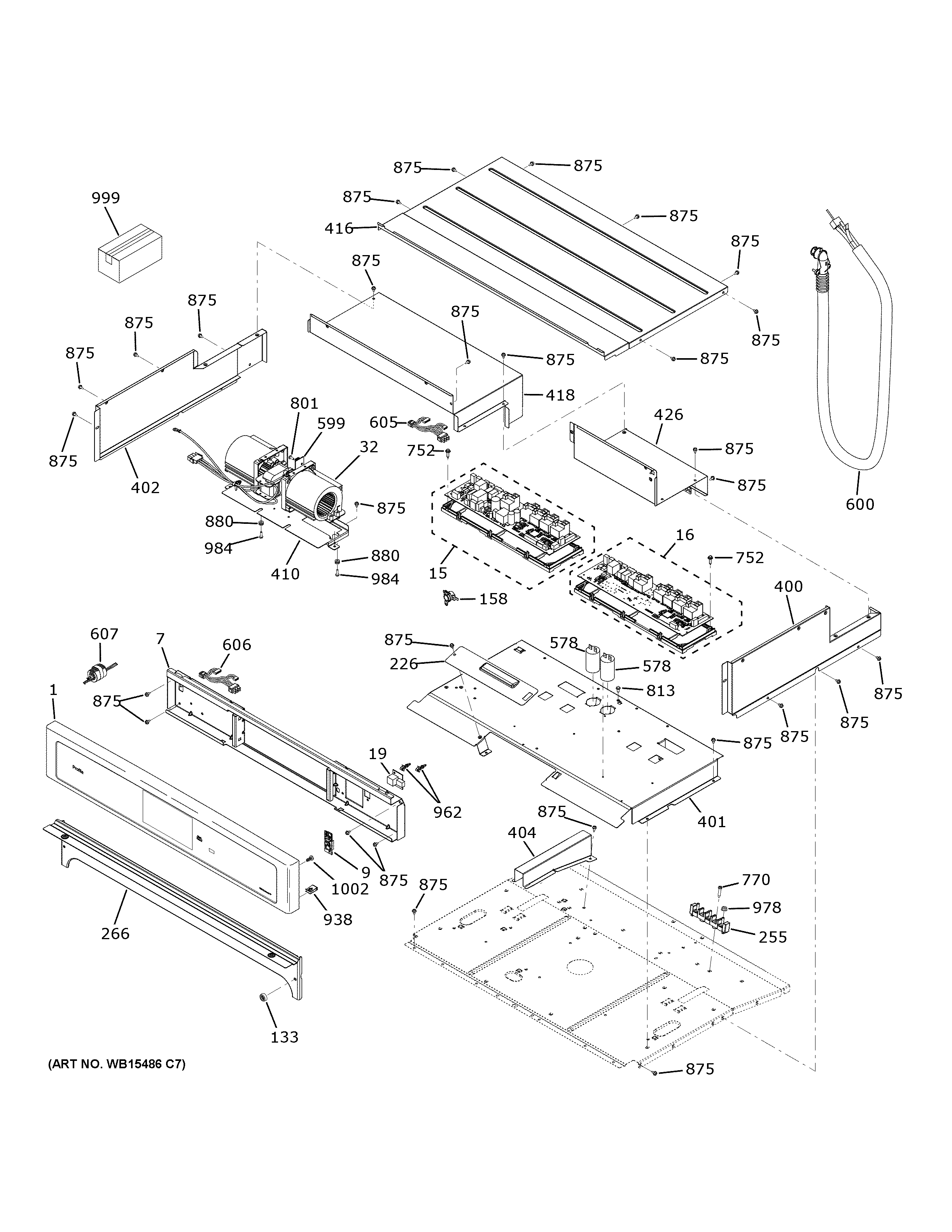

PT9551SL3SS CONTROL PANEL

Products

PositionProduct
1WB27X31837 GE Stainless Steel Intuitive LCD
1LABEL WIRE DIAGRAM
7WB34X29940 GE Refrigerator Control Panel Mounting Bracket
9WI-FI BOARD
15WB27X31842 GE Oven Upper Control Board
16WB27X31840 GE Oven Lower Control Board
19WB27X20933 GE Oven RJ45 Housing Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
158WB24T10161 GE Oven High Limit Switch
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07T10800 GE Oven Upper Black Vent Trim
400COVER TOP RIGHT EDGE
401AIR DIVIDER
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18X33486 GE Conduit Wire Assembly
605WB18X32231 GE Dishwasher Main Wire Harness
606LATCH COM HARNESS WIRE
606LATCH COM HARNESS WIRE
607WB18X30266 GE Communication Harness Wire
752WB01X21742 GE Screw
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
938WB1K5209 GE Oven Clip
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM MANUAL MINI & WD ASM
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM OWNERS MANUAL
1002WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn
