PT956SR2SS CONTROL PANEL

PT956SR2SS CONTROL PANEL

Written by

in

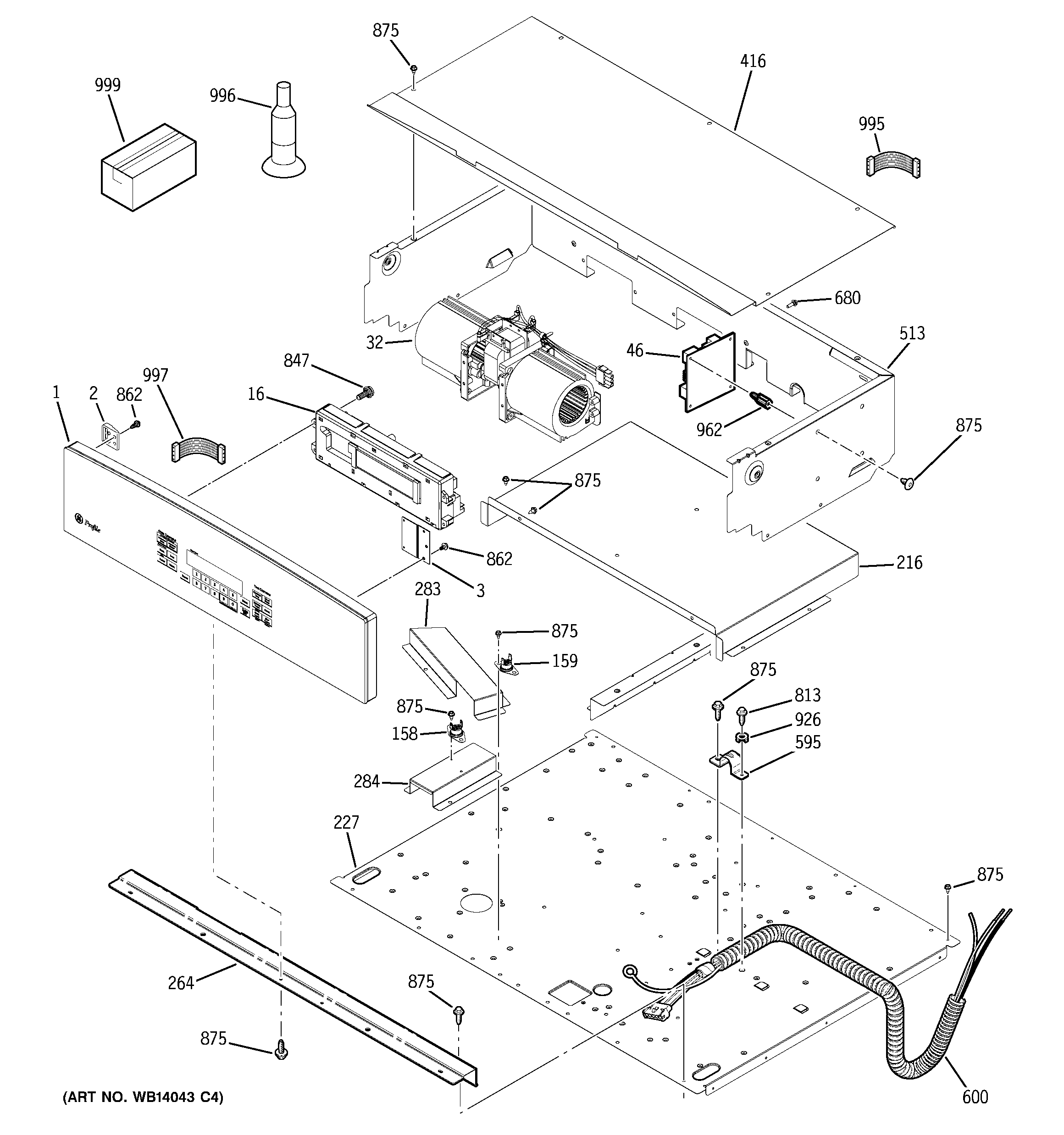

PT956SR2SS CONTROL PANEL

Products

PositionProduct
1WB36T11145 GE Oven Control Panel Tape Assembly
2GEN WB02T10387
3GEN WB02T10386
16WB27T11441 GE Oven User Control
32WB26X10264 GE Oven Fan Kit
46WB27T10569 GE Oven Range Control Board
158WB24T10060 GE Oven Safety Thermostat
159WB24T10175 GE Oven Bake Limit Switch (TCO)
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416WB02T10565 GE Fan Housing Cover
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10445 GE Oven 52" Wire Conduit Assembly
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
862GEN WB01X1178
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
995WB18T10342 GE Oven Logic/Display Harness
996WB02T10303 GE Cleaner Lubricant
997WB18T10371 GE Oven Ribbon Connector GLS Touch
999PM MANUAL USE & CARE
999GEN 31-10730
999GEN 31-14860
999INSTR INSTALL OVN DOOR
