PT960SM3SS CONTROL PANEL

PT960SM3SS CONTROL PANEL

Written by

in

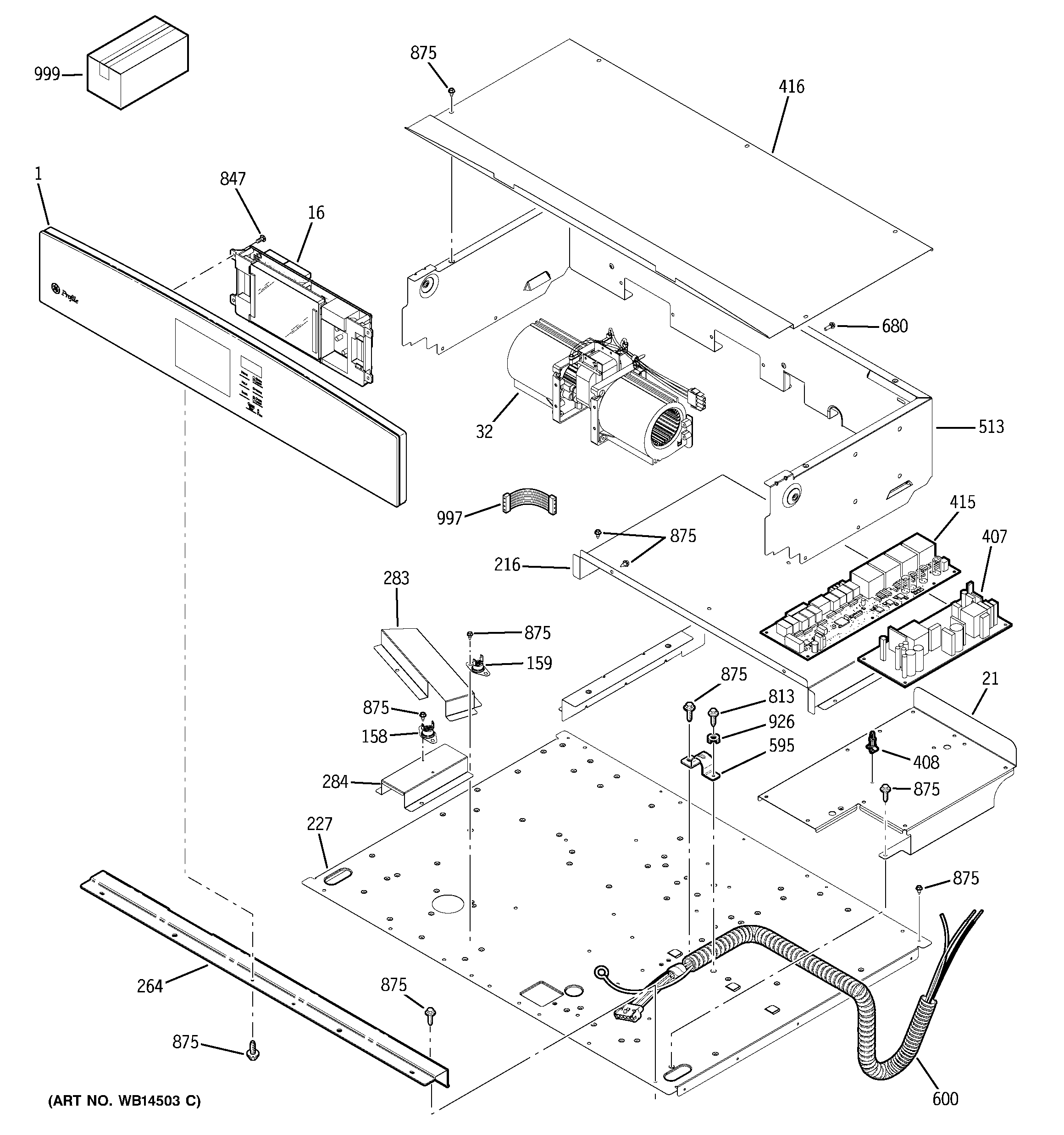

PT960SM3SS CONTROL PANEL

Products

PositionProduct
1GEN WB27T11057
16GEN WB27T11062
21GEN WB02T10400
32WB26X10264 GE Oven Fan Kit
158WB24T10127 GE Oven Bimetal Limit Switch
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407GEN WB27T11037
408WB02T10207 GE PCB Standoff
415WB27T11060 GE Oven Relay Board Assembly
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10445 GE Oven 52" Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
997GEN WB18T10402
999INSTR INSTALL OVN DOOR
999GEN 31-14818
999GEN 49-80431
999GEN 31-10730
