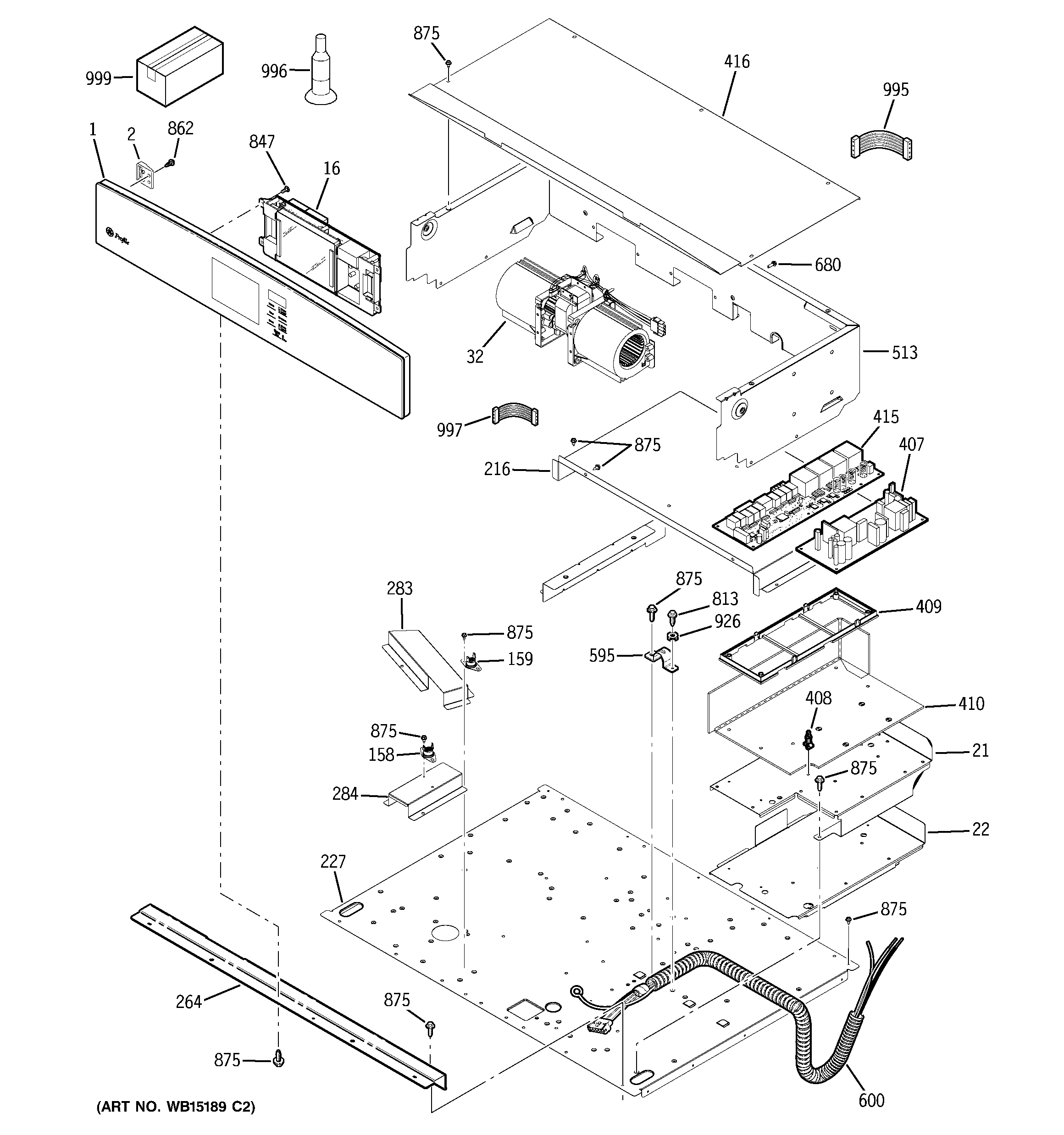

PT960SR2SS CONTROL PANEL

PT960SR2SS CONTROL PANEL

Written by

in

PT960SR2SS CONTROL PANEL

Products

PositionProduct
1GEN WB27T10997
2GEN WB02T10387
16HOUSING LCD & BKT ASM
21GEN WB02T10400
22GEN WB02T10513
32WB26X10264 GE Oven Fan Kit
158WB24T10127 GE Oven Bimetal Limit Switch
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407GEN WB27T11302
408WB02T10207 GE PCB Standoff
409WB02T10512 GE Range Relay Board Frame
410GEN WB35T10234
415WB27T11299 GE Oven Relay Board Assembly
416WB02T10565 GE Fan Housing Cover
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
600WB18T10445 GE Oven 52" Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
995GEN WB18T10476
995GEN WB18T10477
996WB02T10303 GE Cleaner Lubricant
997GEN WB18T10474
997GEN WB18T10402
999GEN 40-80607
999GEN 31-10730
999INSTR INSTALL OVN DOOR
999GEN 31-14859
