PT970DR2BB BODY WITH MICROWAVE SUPPORT

PT970DR2BB BODY WITH MICROWAVE SUPPORT

Written by

in

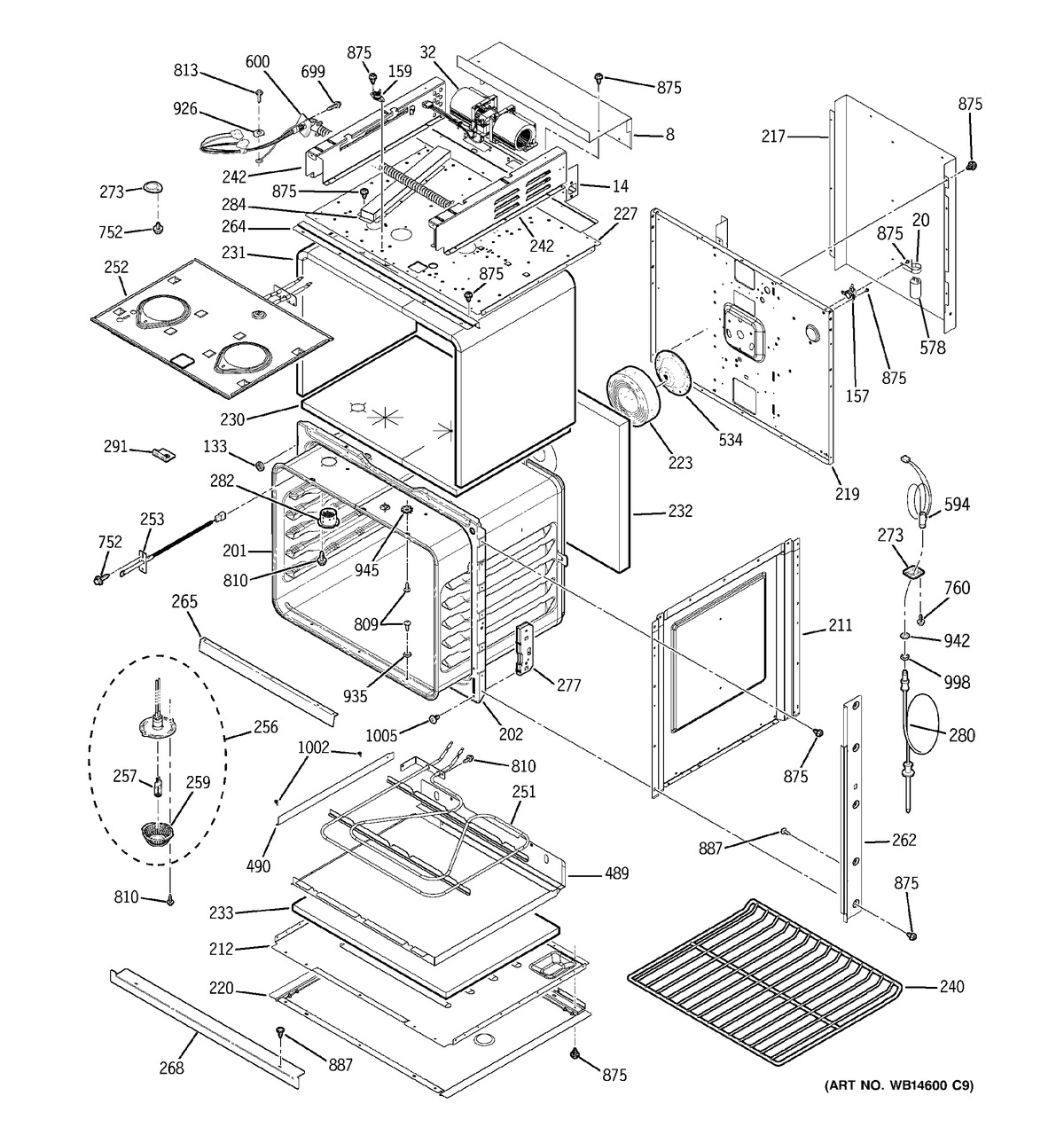

PT970DR2BB BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8HOUSING FAN
14BRACKET MOTOR MOUNT
20WB02T10152 GE Oven Motor Capacitor Bracket
32WB26X10264 GE Oven Fan Kit
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
159WB24T10060 GE Oven Safety Thermostat
201GEN WB63T10160
202GEN WB63T10153
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10373
219WB02X20948 GE Oven Back Insulation Retainer
220WB02T10502 GE Air Duct Bottom
223WB35T10090 GE Oven Back & Bottom Insulation
227WB02T10378 GE Insulation Retainer Top
230WB35T10183 GE Top Insulation
231WB35T10186 GE Oven Insulation
232WB35T10182 GE Insulation
233WB35T10181 GE Bottom Insulation
240WB48T10059 GE Oven Rack
242RAIL SLIDE (LT)
242RAIL SLIDE (RT)
251WB44T10110 GE Oven Bake Element
252WB44T10106 GE Oven Broil Assembly
253WB21T10018 GE Oven Sensor Assembly
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262TRIM VERT SDE LT (BK)
262GEN WB07T10606
262GEN WB07T10607
262TRIM VERT SDE 30 RT (BK)
264WB07T10580 GE Oven Inner Trim Vent
265WB02T10456 GE Oven Divider Air Assembly (White)
265GEN WB02T10421
268GEN WB07T10583
268WB07T10589 GE Oven Bottom Trim (White)
273GEN WB02X8309
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB28T10215 GE Oven Vent Tube Assembly
284DUCT OVN EXHAUST
291GEN WB02X9152
489GEN WB49T10019
490WB49T10018 GE Side Reflector Pan
534WB26T10015 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
594GEN WB18T10397
600GEN WB18T10446
600CONDUIT WIRE ASM
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
752WB1X1130 GE Oven Screw 10-32
760WB1X536 GE Oven Screw
809WR01X10788 GE White Screw
809WB1K5165 GE Oven Black Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
887WB1K5172 GE Oven Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002GEN WB01T10121
1005WB01T10008 GE Oven Screw 10-32
