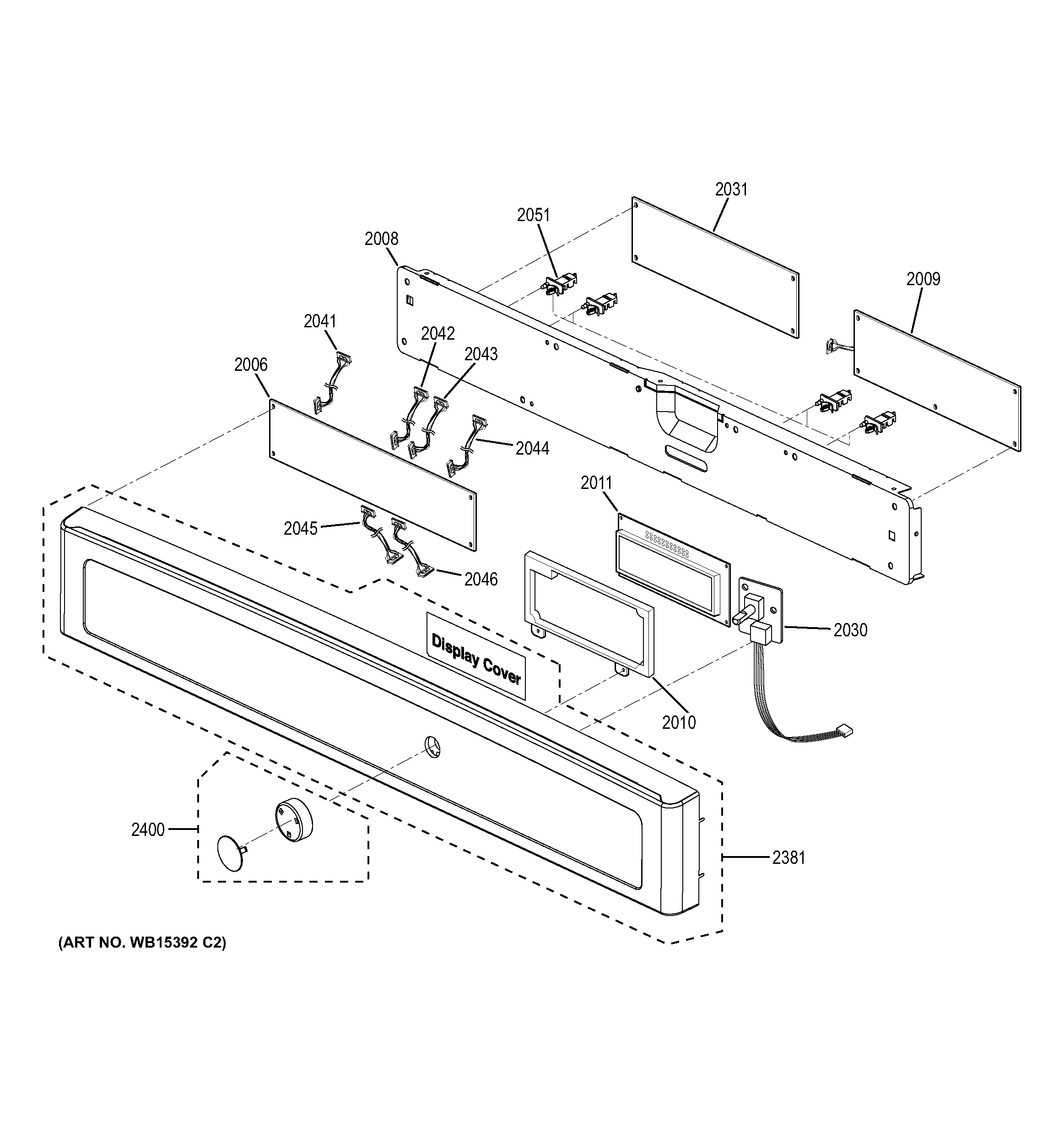

PT9800SH1SS CONTROL PANEL

PT9800SH1SS CONTROL PANEL

Written by

in

PT9800SH1SS CONTROL PANEL

Products

PositionProduct
2006WB27X32633 GE Oven Main Control Board
2008WB02X32630 GE Control Board Bracket
2009WB27X32625 GE Oven Relay Board
2010WB02X32631 GE Display Holder
2011WB27X44086 GE VFD Module
2030WB27X32632 GE Oven Encoder Board
2031WB27X32626 GE Oven Power Board
2041WB18X32619 GE Relay Signal Harness
2042WB18X32616 GE Encoder Signal Harness
2043WB18X32614 GE Touch Signal Harness
2044WB18X32613 GE VFD Signal Harness
2045WB18X32620 GE Signal Harness
2046WB18X32615 GE Power Board Harness
2051WB02X32634 GE Board Supporter
2381WB56X32697 GE Oven Control Panel Assembly White LED
2400KNOB
