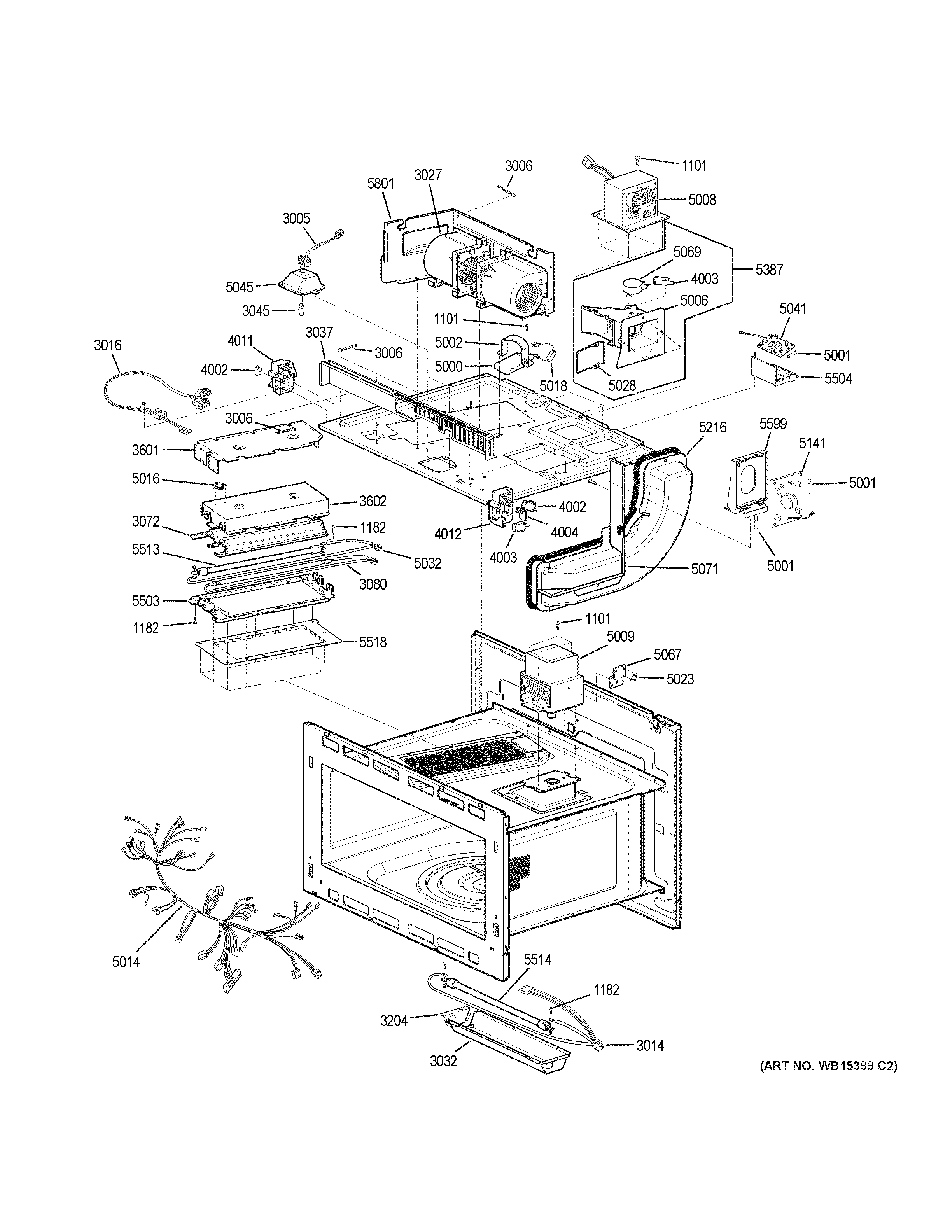

PT9800SHASS INSULATOR PARTS

PT9800SHASS INSULATOR PARTS

Written by

in

PT9800SHASS INSULATOR PARTS

Products

PositionProduct
1101WB02X10745 GE Binding Head Screw
1182WB02X10726 GE Screw
3005WB06X10646 GE Oven Holder Assembly
3006HOLDER WIRE
3014WB18X32597 GE Wire Harness
3016WB18X32611 GE Harness Single
3027WB26X10182 GE Oven Circular Circulation Motor
3032REFLECTOR
3037WB34X32592 GE Microwave Protector
3045HALOGEN LAMP
3072WB02X32572 GE Oven Heat Shield
3080WB21X28572 GE Oven Halogen Heater
3204WB02X11223 GE Heater Bracket
3601WB34X32589 GE Heater Cover
3602WB06X32848 GE Heater Cover
4002PRIMARY INTERLOCK SWITCH
4003WB24X25397 GE Oven Interlock Monitor Switch
4004WB02X32588 GE Oven Lever
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
5000WB27X11033 GE Oven High Voltage Capacitor
5001WB27X10928 GE Oven Line Fuse
5002WB02X32593 GE Bracket Capacitor
5006WB34X32607 GE Duct Assembly
5008TRANSFORMER HIGH VOLTAGE
5009MAGNETRON
5014WB18X32612 GE Wire Harness
5016WB21X10149 GE Oven Thermostat
5018DIODE-CABLE
5023WB20X10048 GE Oven Thermostat
5028WB02X40028 GE Damper Bracket
5032WB18X33768 GE Wire Harness
5041WB02X35865 GE Noise Filter Board
5045WB34X32583 GE Light Cover
5067WB06X10570 GE Microwave Bracket
5069WB26X10248 GE Oven Synchronous AC Motor
5071WB02X32590 GE Barrier Bracket
5141SURGE BOARD
5216WB34X32594 GE Duct Assembly
5387WB34X32608 GE Oven Duct Assembly
5503WB02X32606 GE Support
5504SUPPORTER
5513WB44X41527 GE Miraclon Heater
5514HEATER MIRACLON
5518WB02X32582 GE Bracket
5599WB02X32604 GE Support
5801WB02X32599 GE Motor Bracket
