PT9900SW1SS INSULATOR PARTS

PT9900SW1SS INSULATOR PARTS

Written by

in

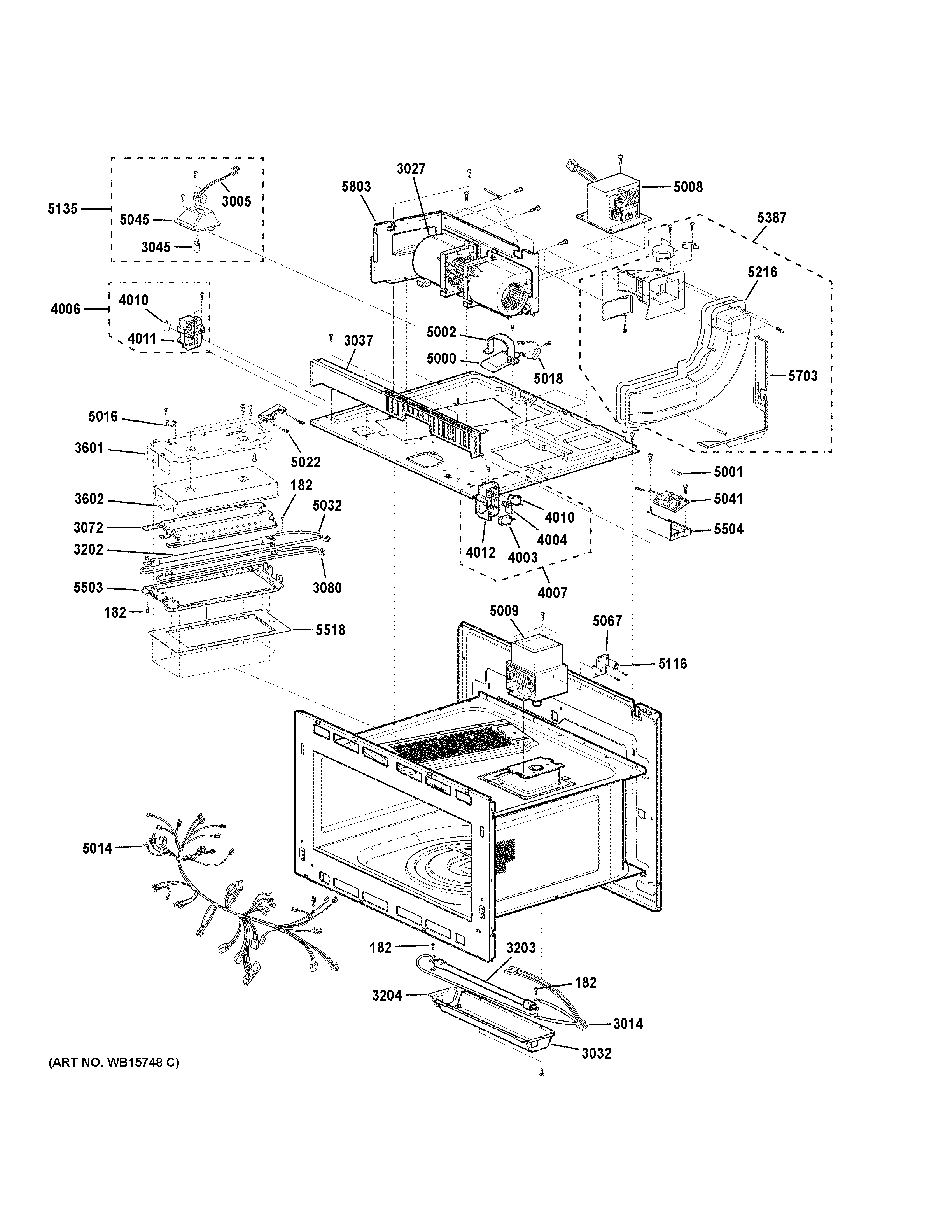

PT9900SW1SS INSULATOR PARTS

Products

PositionProduct
182WB02X10726 GE Screw
3005HOLDER ASM
3014HARNESS WIRE
3027WB26X10182 GE Oven Circular Circulation Motor
3032REFLECTOR
3037WB34X32592 GE Microwave Protector
3045HALOGEN LAMP
3072WB02X32572 GE Oven Heat Shield
3080WB21X28572 GE Oven Halogen Heater
3202WB44X41527 GE Miraclon Heater
3203WB44X41528 GE Miraclon Heater
3204BRACKET HEATER
3601WB34X32589 GE Heater Cover
3602HEATER COVER
4003WB24X25397 GE Oven Interlock Monitor Switch
4004WB02X32588 GE Oven Lever
4006WB10X33305 GE Latch Body Assembly Left
4007WB10X33309 GE Right Latch Body Assembly
4010PRIMARY INTERLOCK SWITCH
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
5000WB27X11033 GE Oven High Voltage Capacitor
5001WB27X10928 GE Oven Line Fuse
5002WB02X32593 GE Bracket Capacitor
5008TRANSFORMER HIGH VOLTAGE
5009MAGNETRON
5014HARNESS
5016WB21X10149 GE Oven Thermostat
5018WB27X35382 GE Diode
5022FUSE ASM
5032WB18X33768 GE Wire Harness
5041WB02X35865 GE Noise Filter Board
5045WB34X32583 GE Light Cover
5067WB06X10570 GE Microwave Bracket
5116WB20X10048 GE Oven Thermostat
5135REFLECTOR ASM
5216WB34X32594 GE Duct Assembly
5387WB34X32608 GE Oven Duct Assembly
5503WB02X32606 GE Support
5504SUPPORT
5518WB02X32582 GE Bracket
5703WB02X32590 GE Barrier Bracket
5803WB02X32599 GE Motor Bracket
