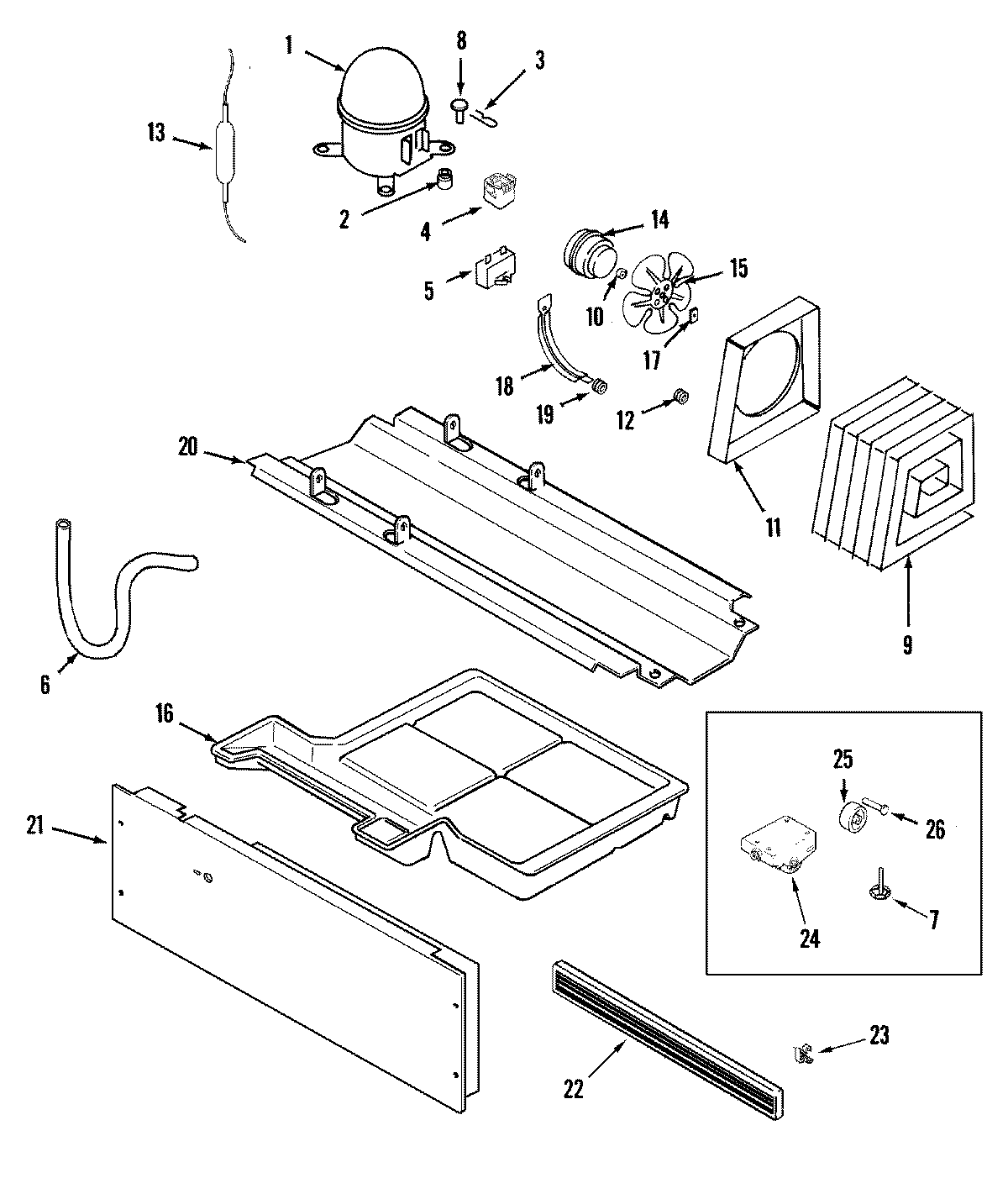

PTB1953GRW 03 – COMPRESSOR (REV 19)

Products

Position	Product
1	MAY 61005322
1	W10160407 Whirlpool Refrigerator Compressor
2	GROMMET (SERVICE)
3	MAY 61003099
4	MAY 61006187
4	12002794 Whirlpool Refrigerator Overload Relay Kit
5	WP65889-4 Whirlpool Refrigerator Capacitor
6	MAY 61002214
7	MAY 61002014
8	MAY 52656-2
9	MAY 61004378
9	MAY 61005427
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	833697 Whirlpool Condenser Fan Motor
14	MAY 65275-33
15	MAY 60683-1
16	WP489478 Whirlpool Refrigerator Screw
16	MAY 61001955
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61005388
20	MAY 65275-1
20	MAY 61004654
21	WP67006715 Whirlpool Refrigerator Screw
21	MAY 61005272
22	MAY 61002427
23	MAY 61001975
24	MAY 61005232
24	SCREW
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 12001492
28	MAY 61005299
29	MAY 16008248
