PTB21BBGRQ 03 – COMPRESSOR (REV 15)

PTB21BBGRQ 03 – COMPRESSOR (REV 15)

Written by

in

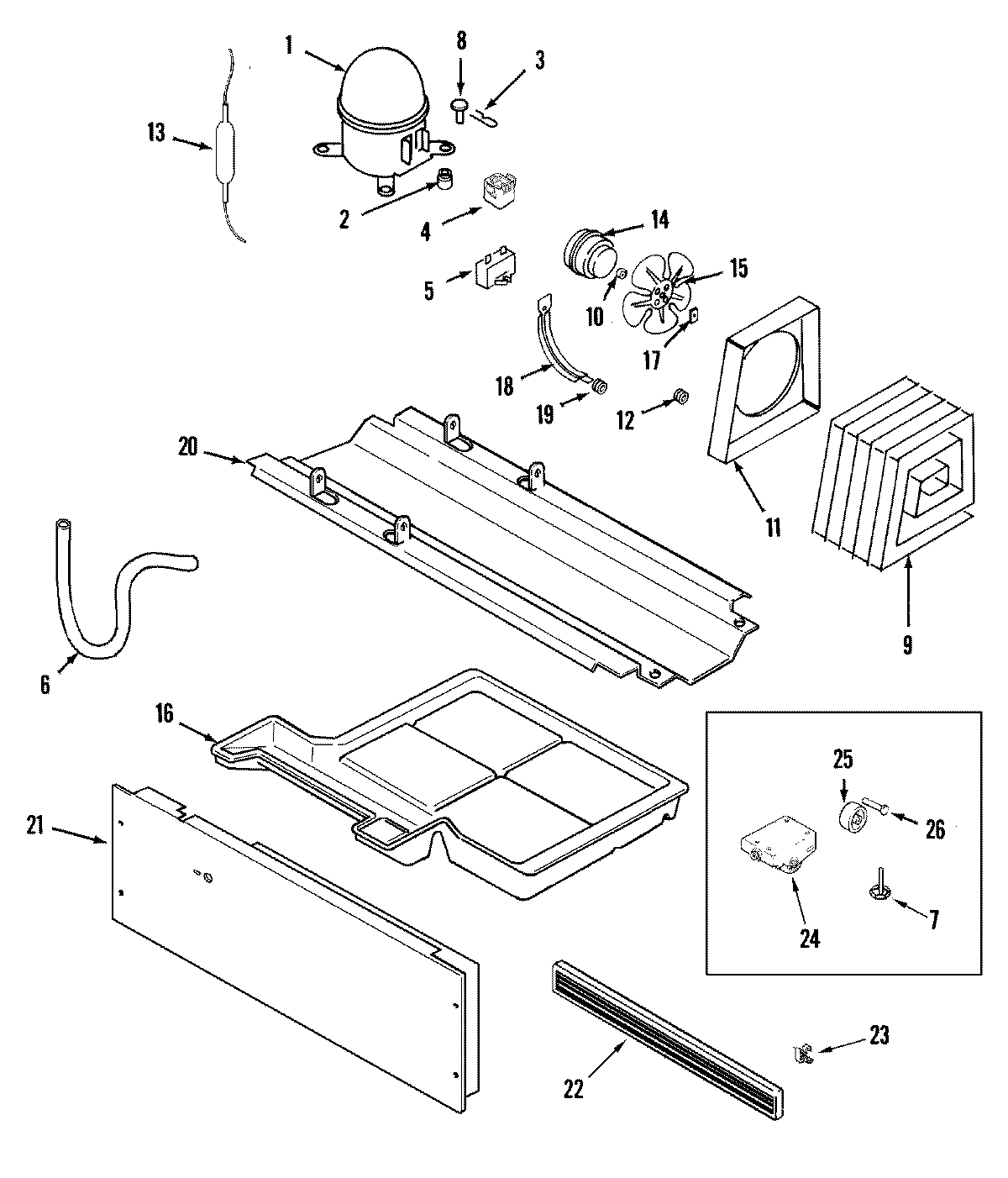

PTB21BBGRQ 03 – COMPRESSOR (REV 15)

Products

PositionProduct
1MAY 61004917
1W10160407 Whirlpool Refrigerator Compressor
2GROMMET (SERVICE)
3MAY 61005561
4MAY 61006187
412002794 Whirlpool Refrigerator Overload Relay Kit
5WP489478 Whirlpool Refrigerator Screw
5WP65889-4 Whirlpool Refrigerator Capacitor
6MAY 61002214
7MAY 61002014
8MAY 52656-2
9MAY 61004378
9MAY 61005454
10MAY 61001686
11MAY 61001941
12MAY 61002033
13WPW10143759 Whirlpool Dryer Filter
14MAY 65275-33
14833697 Whirlpool Condenser Fan Motor
15MAY 60683-1
16MAY 61004095
17WP486692 Whirlpool Refrigerator Nut
18MAY 69181-1
19GROMMET, BRACKET
20MAY 61005268
20WP67006715 Whirlpool Refrigerator Screw
21MAY 61005751
21MAY 61005388
21MAY 65275-1
22MAY 61004901
23MAY 61001975
24MAY 61005232
24MAY 65275-50
25WP61003826 Whirlpool Wheel
26WP61002104 Whirlpool Refrigerator Pin Wheel
27MAY 12001492
28MAY 61005299
29MAY 16008248
