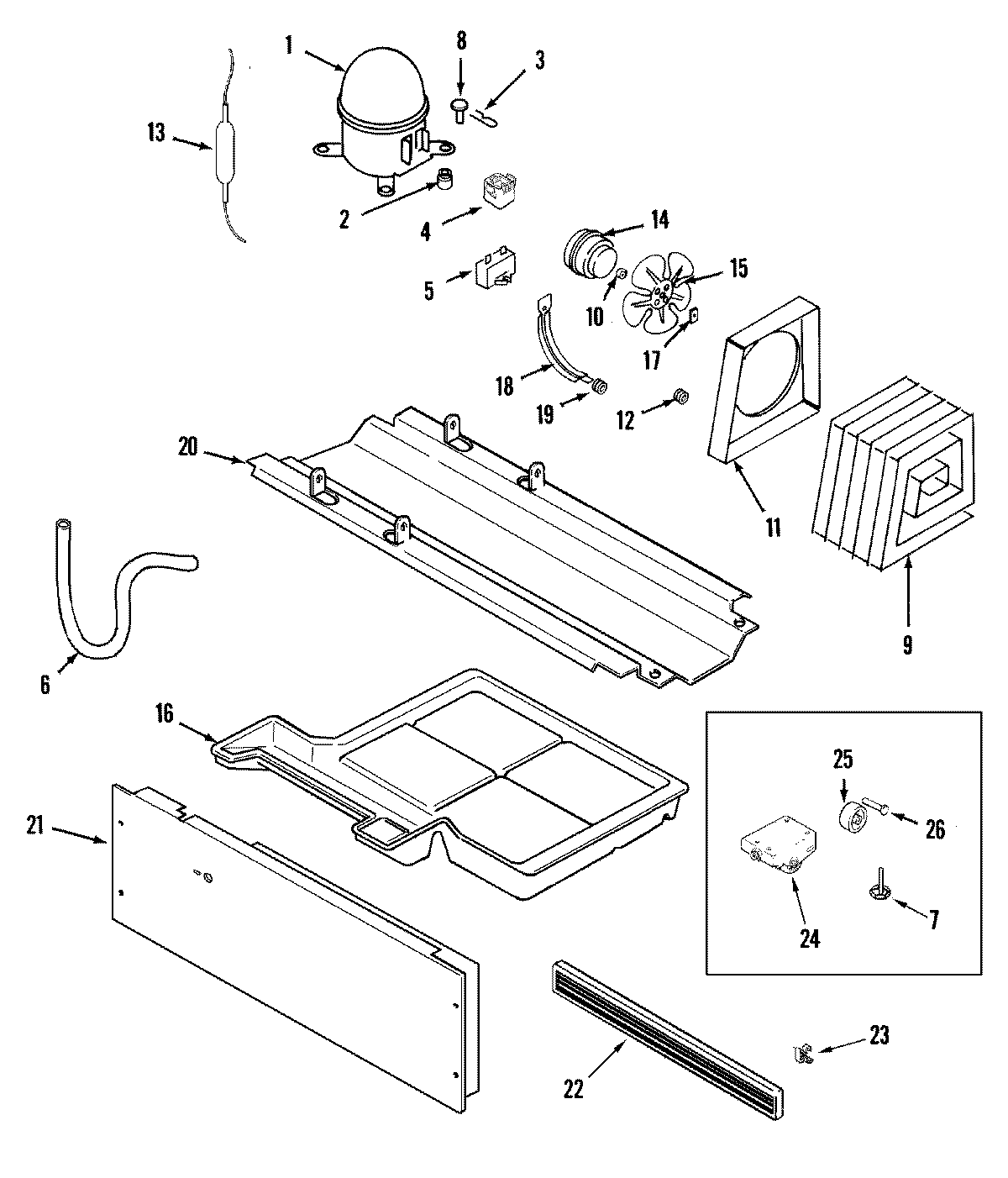

PTB2454GRQ 02 – COMPRESSOR (REV 10)

Products

Position	Product
1	MAY 12001872
1	MAY 61004917
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
3	MAY 61005561
4	12002782 Whirlpool Refrigerator Overload Relay Kit
4	MAY 61005620
5	WP65889-4 Whirlpool Refrigerator Capacitor
6	MAY 61002214
7	MAY 61002014
8	MAY 52656-2
9	MAY 61005427
9	MAY 61004378
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	WP489478 Whirlpool Refrigerator Screw
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	WP67006715 Whirlpool Refrigerator Screw
20	MAY 61005268
21	MAY 65275-1
21	MAY 61005061
21	MAY 61005388
22	MAY 61004901
23	MAY 61001975
24	SCREW
24	MAY 61005232
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 12001492
28	MAY 61005299
29	MAY 16008248
