PTD60EBPR2DG CABINET & TOP PANEL

PTD60EBPR2DG CABINET & TOP PANEL

Written by

in

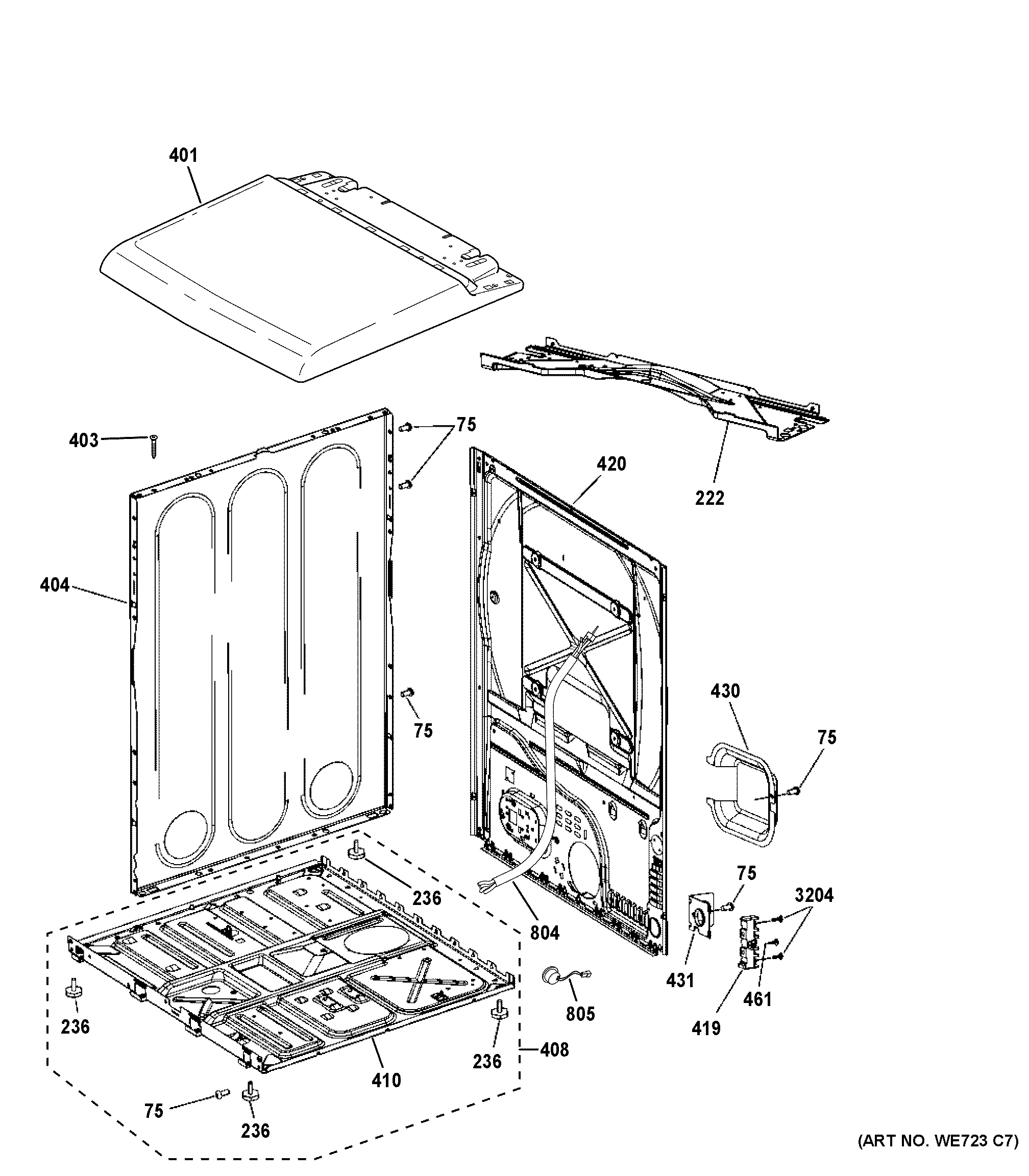

PTD60EBPR2DG CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
401WE13X33129 GE Top Cover Diamond Gray
403WE01X25318 GE Screw
404WE20X26817 GE Side Panel
408WE04X25158 GE Appliance Chassis and Leg Assembly
410WE13X29562 GE Base Chassis
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE02X23955 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE08X37197 GE Dryer Electric Main Harness
805WE08X33119 GE Harness High Limit
3204WZ4X241D GE Screw Package
