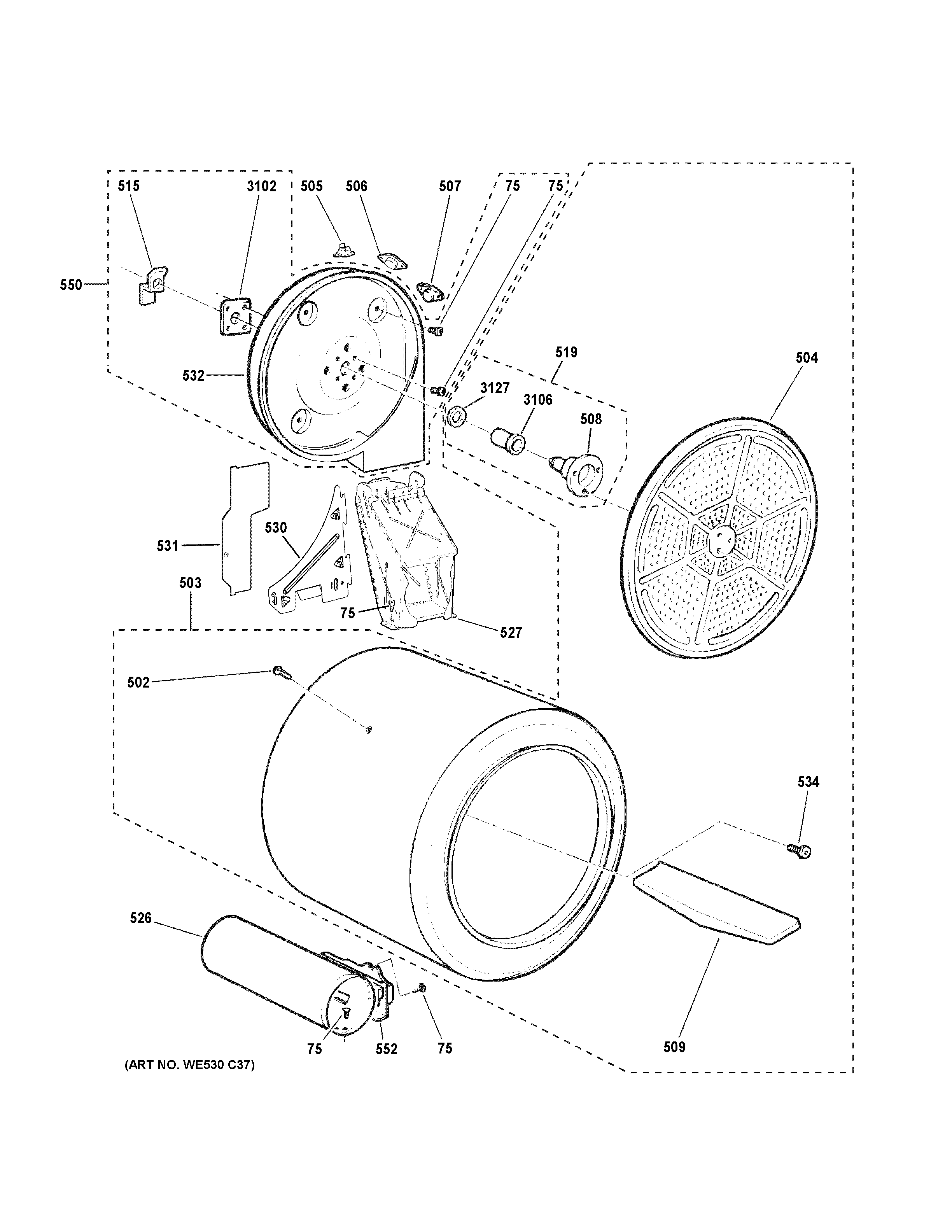

PTD60GBPR0DG DRUM

Products

Position	Product
75	WE01X25535 GE Screw
502	WE2M174 GE Screw #10
503	WE21X23869 GE Drum Assembly
504	WE11X29438 GE Washer Drum Mounting Hub
505	THERMOSTAT HI LIMIT
506	WE04X31017 GE Thermostat
507	WE4M398 GE Dryer Inlet Control Thermostat
508	SHAFT
509	DRYER BAFFLE
515	WE13X29439 GE Assembly Ground Strap
519	SHAFT & BRACKET ASS'Y
526	WE11X29440 GE Combustion Chamber
527	WE11X29441 GE Duct Transition
530	WE10X30380 GE Diffuser Plate
531	WE11X25154 GE Flame Deflector
532	DIFFUSER GAS
534	WE2M163 GE Washer Screw
550	WE11X29464 GE Gas Diffuser Assembly
552	WE4X448 GE Heat Detector Assembly
3102	WE1M300 GE Dryer Bearing Bracket
3106	WE1M462 GE Dryer Rear Drum Bearing Sleeve
3127	WE1M461 GE Washer O-Ring
