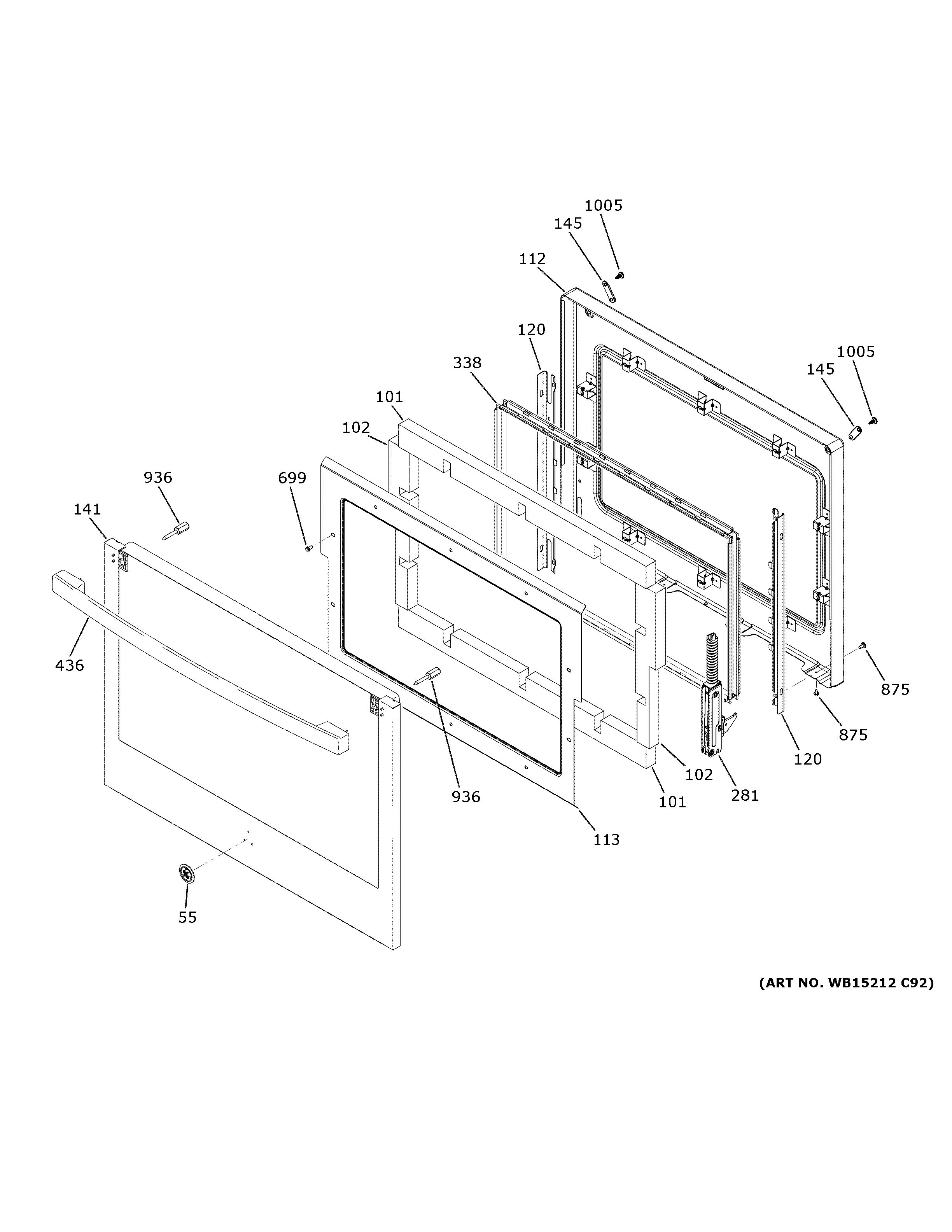

PTD7000BN1TS LOWER DOOR

Products

PositionProduct
55WB02X29637 GE Oven Badge Assembly
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
141WB56X35474 GE Black Stainless Outer Door with
145WB02X32816 GE Oven Door Liner Plug
281HINGE DOOR RT
281HINGE DOOR LT
338WINDOW PACK ASM
436WB15X32927 GE Black Stainless Handle
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
