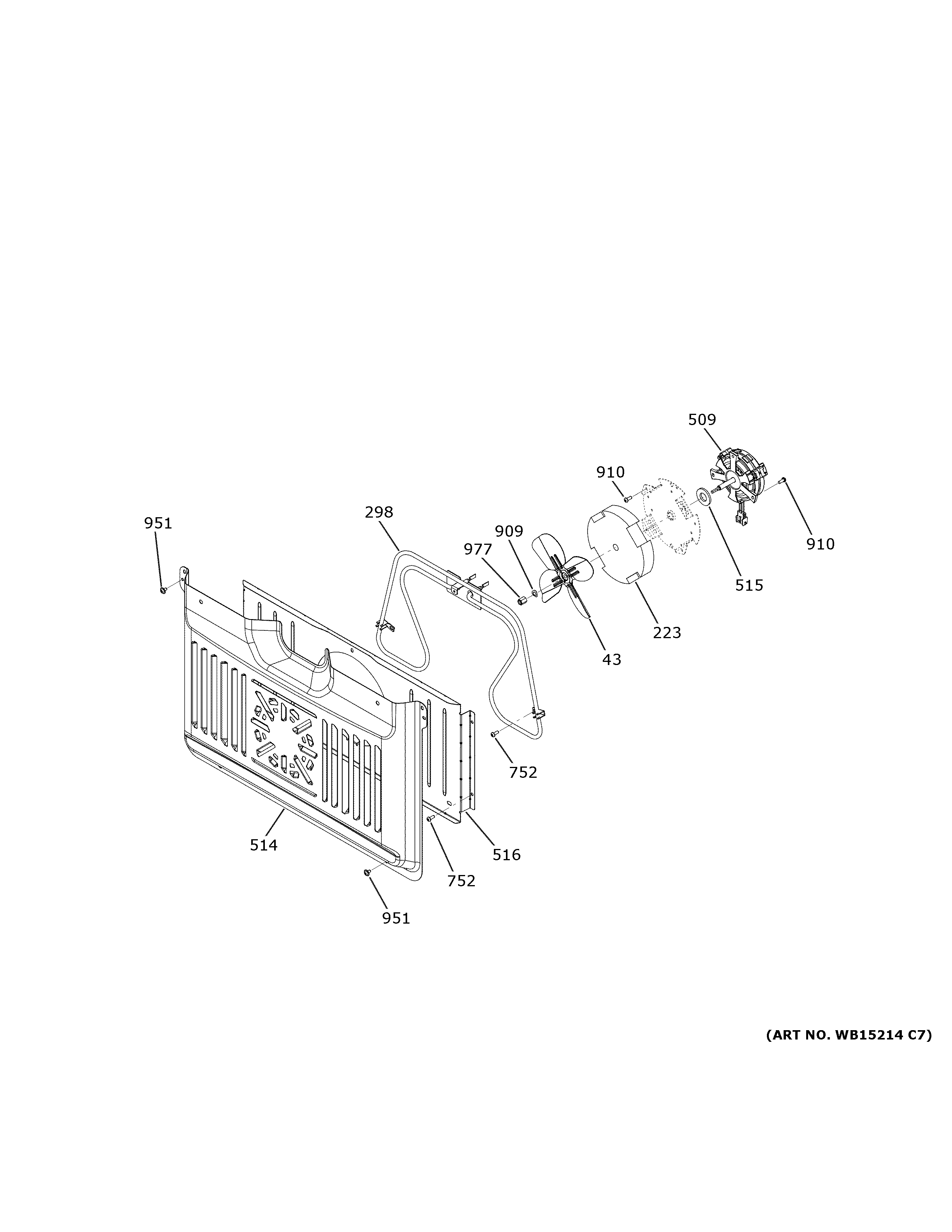

PTD7000BN6TS UPPER CONVECTION FAN

PTD7000BN6TS UPPER CONVECTION FAN

Written by

in

PTD7000BN6TS UPPER CONVECTION FAN

Products

PositionProduct
43WB02T10598 GE Oven Convection Fan Blade
223WB35T10259 GE Convection Fan Insulation
298BROIL ELEMENT
509WB26X44167 GE Convection Motor Kit
514WB37T10023 GE Convection Fan Cover
515WB01T10079 GE Range Gasket
516WB37T10022 GE Convection Fan Duct
752WB01X21742 GE Screw
909WB01X36465 GE Washer Spring
910WB01X34726 GE Screw 8-18 Ab Pnt-20
951SCREW 8-18 T20 3/8 IN
977WB02T10608 GE Oven Hex Nut
