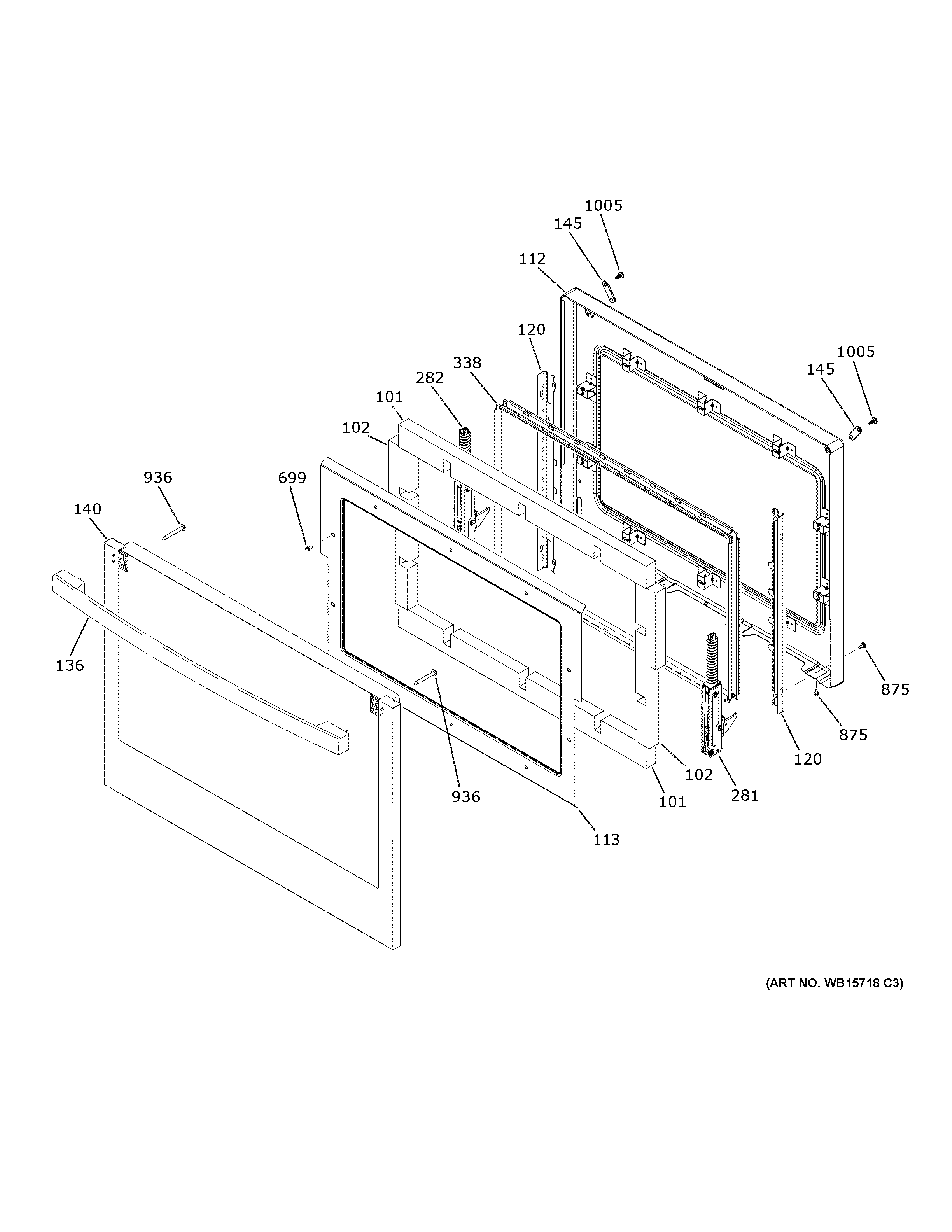

PTD7000SN5SS UPPER DOOR

PTD7000SN5SS UPPER DOOR

Written by

in

PTD7000SN5SS UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136STAINLESS STEEL HANDLE AND ENDCAP
140WB56X45686 GE Outer Door Stainless
145WB02X32816 GE Oven Door Liner Plug
281HINGE DOOR RT
282HINGE DOOR LT
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005WB01T10008 GE Oven Screw 10-32
