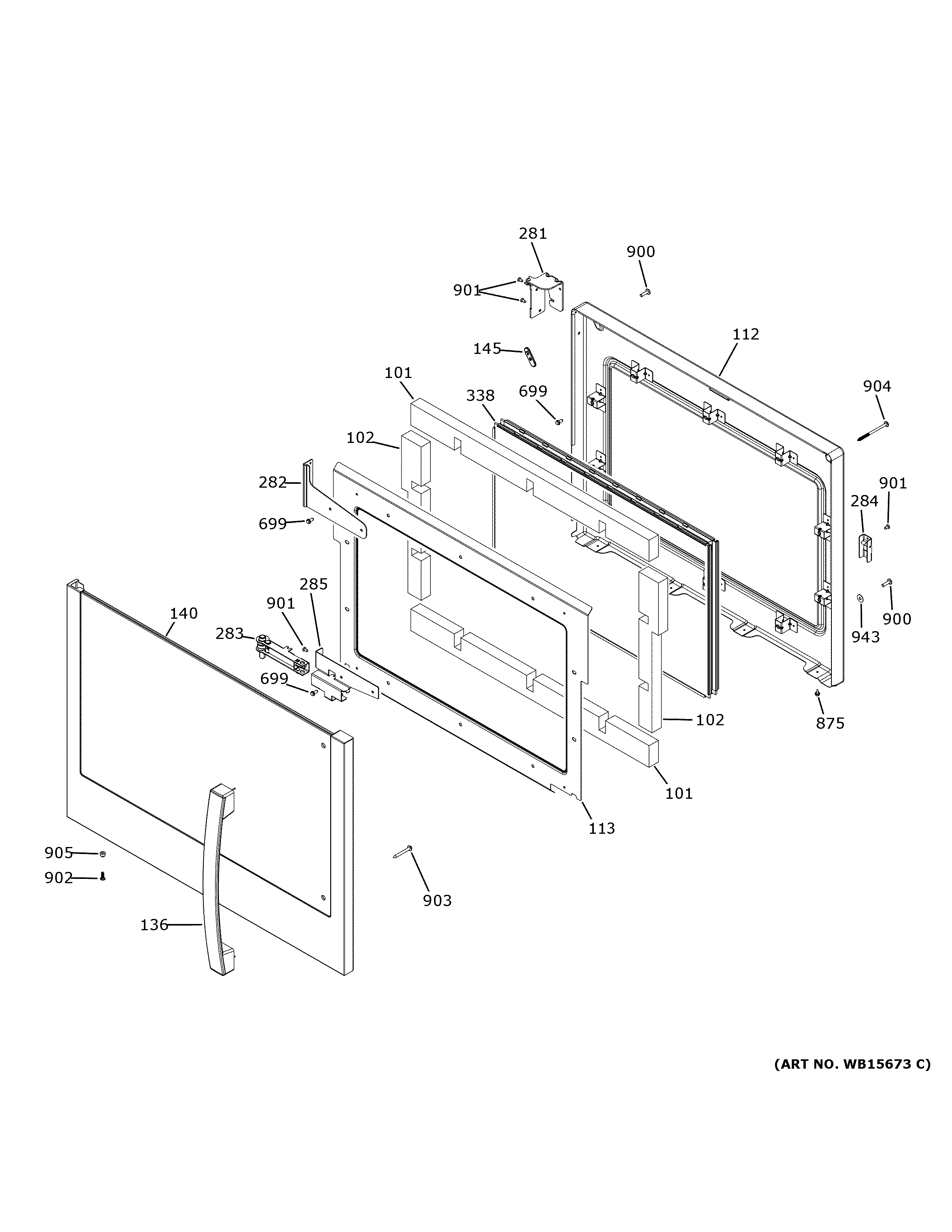

PTD700LSN3SS UPPER DOOR

PTD700LSN3SS UPPER DOOR

Written by

in

PTD700LSN3SS UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112OVEN DOOR LINER
113DOOR INSULATION RETAINER
136WB15X34645 GE Stainless Handle
140STAINLESS OUTER LEFT HINGE UPPER DOOR
145WB02X37056 GE Door Liner Plug
281HINGE UPR LH
282HINGE UPPER LEFT BRACKET
283WB10X34643 GE Left Door Hinge Closure
284WB26X34732 GE Roller
285SLEEVE LEFT LOWER HINGE
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
900WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
901WB01T10012 GE Oven Screw
902WR01X24363 GE Scr 8-18 Bolt 5/8 SS
903WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
904SCREW 10-32 CA TRT15 3.06
905SPACER LINK
943WB02X40586 GE Washer Black
