PTD700LSN3SS UPPER OVEN

PTD700LSN3SS UPPER OVEN

Written by

in

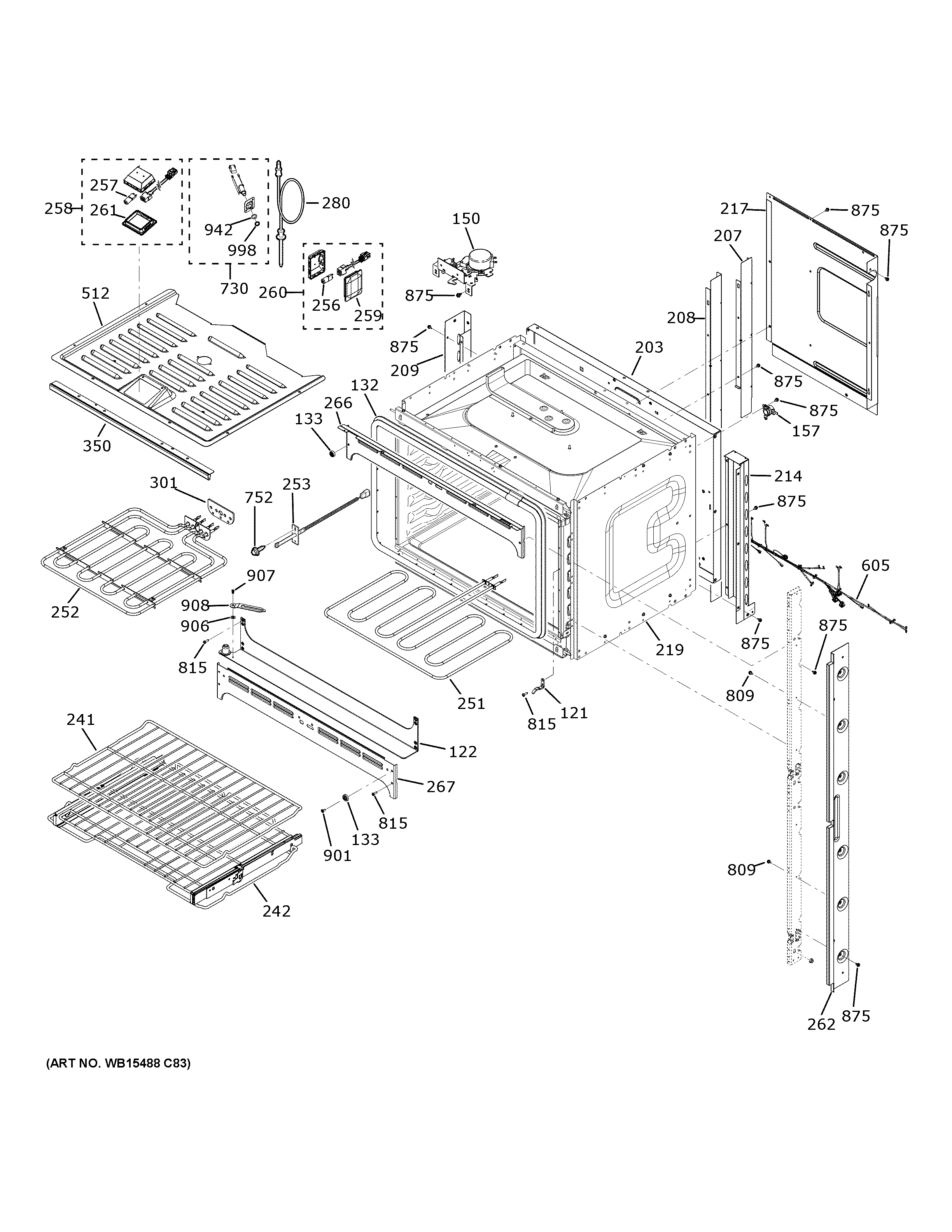

PTD700LSN3SS UPPER OVEN

Products

PositionProduct
121STRIKE DOOR
122BRACKET LOWER LEFT HINGE
132WB35X32825 GE Oven Door Gasket
133WB02X23561 GE Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203WB34X40468 GE Insulation Retainer – Rear
207WB34T10134 GE Center Air Divider
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
242WB48X38086 GE Oven Rack Slide Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
256WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259OVEN LIGHT LENS
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07X34906 GE Stainless Trim Vertical Side
266TRIM VENT UPPER
267TRIM VENT MID
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
512WB37T10024 GE Oven Top Plate
605MAIN WIRE HARNESS
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
809WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
901WB01T10012 GE Oven Screw
906WASHER OFFSET
907SCREW 8-32 TT FLT15 7/20
908LINK DOOR
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
