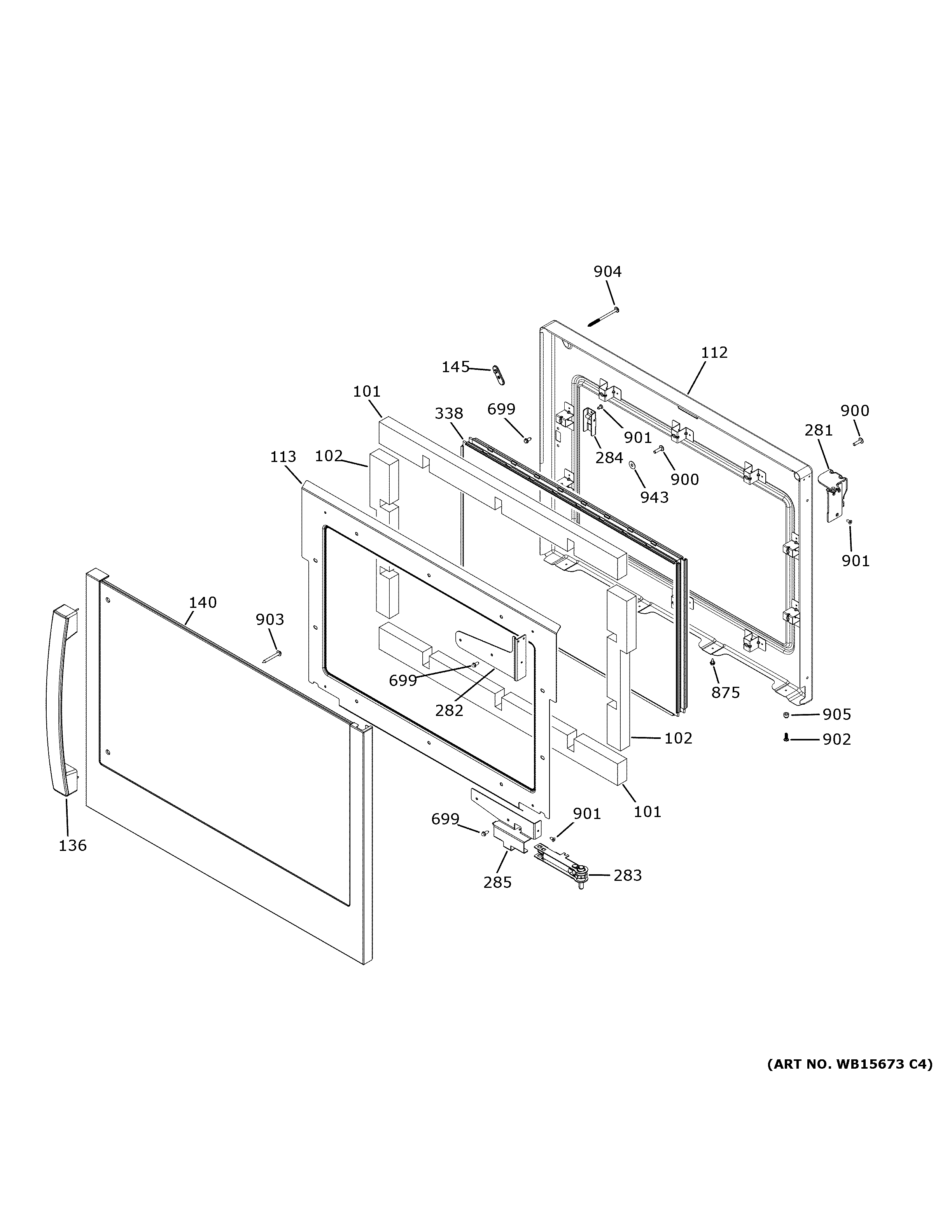

PTD700RSN4SS UPPER DOOR

PTD700RSN4SS UPPER DOOR

Written by

in

PTD700RSN4SS UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112LINER OVEN RIGHT DOOR
113DOOR INSULATION RETAINER
136WB15X34645 GE Stainless Handle
140STAINLESS OUTER RIGHT HINGE UPPER DOOR
145WB02X37056 GE Door Liner Plug
281HINGE UPR RH
282HINGE UPPER RIGHT BRACKET
283HINGE CLOSURE RIGHT DOOR
284WB26X34732 GE Roller
285SLEEVE RIGHT LOWER HINGE
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
900WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
901WB01T10012 GE Oven Screw
902WR01X24363 GE Scr 8-18 Bolt 5/8 SS
903WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
904SCREW 10-32 CA TRT15 3.06
905SPACER LINK
943WB02X40586 GE Washer Black
