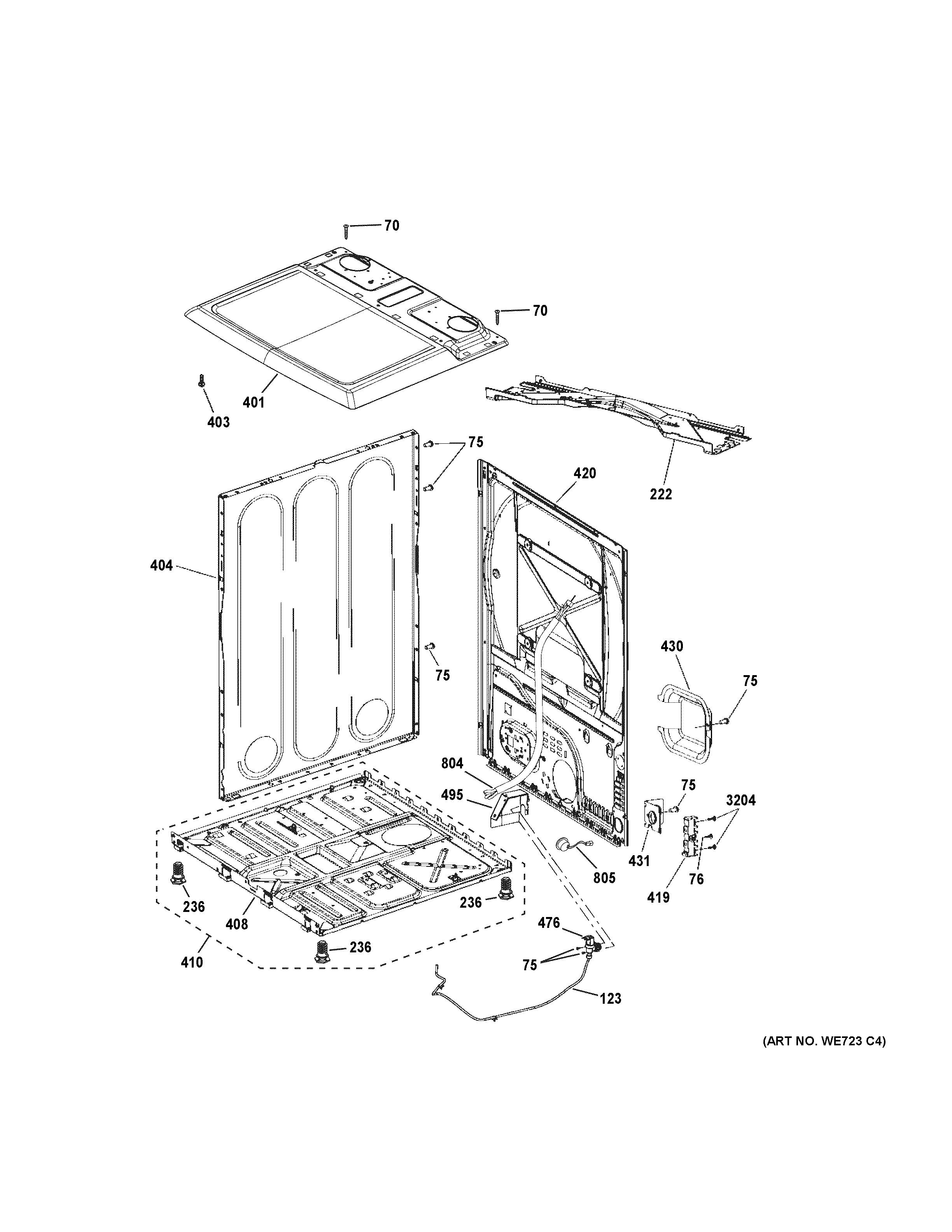

PTD70EBST0WS CABINET & TOP PANEL

PTD70EBST0WS CABINET & TOP PANEL

Written by

in

PTD70EBST0WS CABINET & TOP PANEL

Products

PositionProduct
70WE2M304 GE Screw 8-18 AB OVQ1 2 S ZN
75WE01X25535 GE Screw
76WZ5X158D GE Screw Package of 12
123WE01X29465 GE Tube
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
401WE13X33128 GE Top Cover White
403WE01X25318 GE Screw
404WE20X23867 GE Side Panel
408WE13X29562 GE Base Chassis
410WE04X25158 GE Appliance Chassis and Leg Assembly
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE02X23955 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804WE08X37198 GE Electric Dryer Main Harness
805WE08X33647 GE High Limit Harness
3204WZ4X241D GE Screw Package
