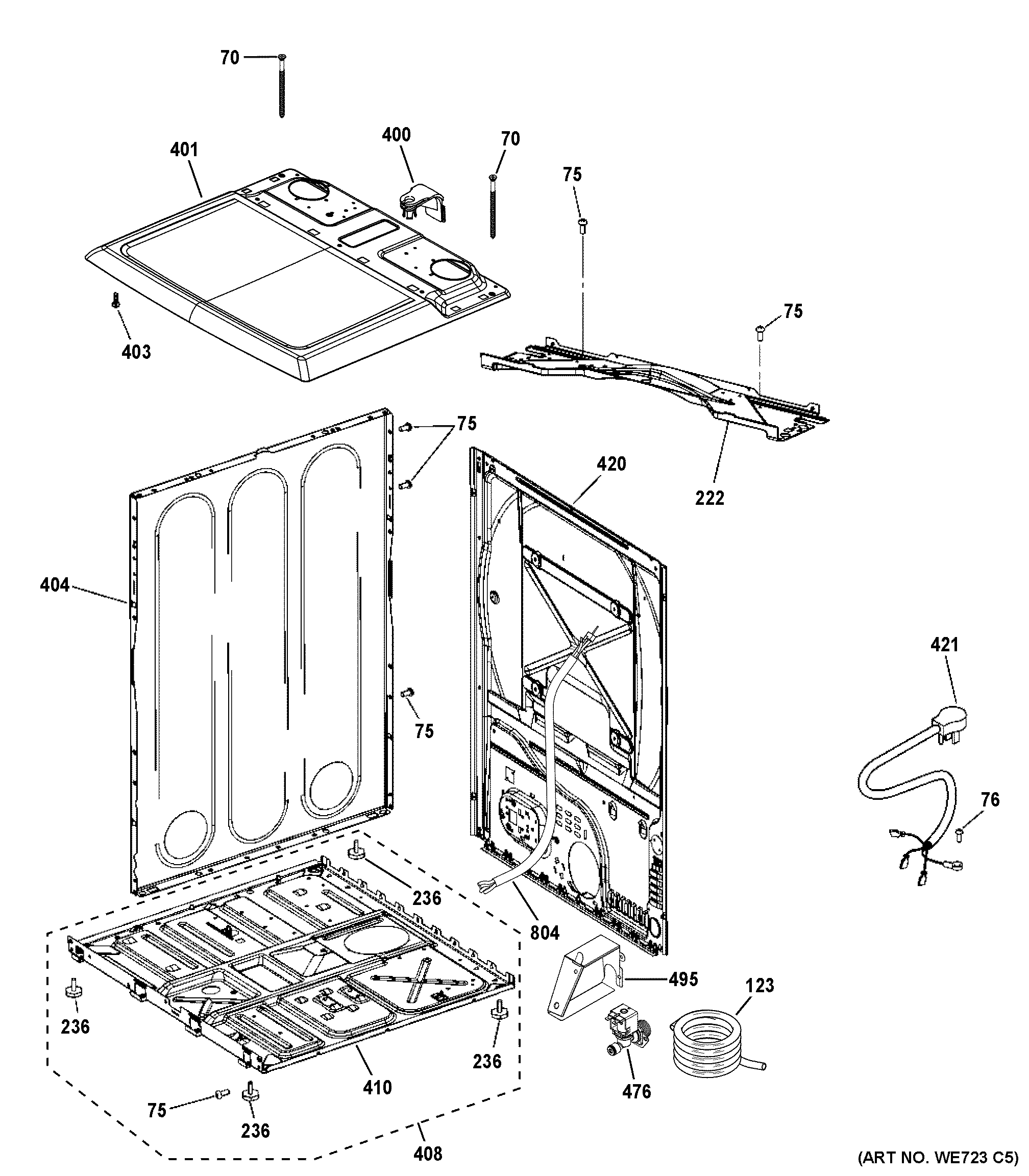

PTD70GBST0WS CABINET & TOP PANEL

PTD70GBST0WS CABINET & TOP PANEL

Written by

in

PTD70GBST0WS CABINET & TOP PANEL

Products

PositionProduct
70WE2M304 GE Screw 8-18 AB OVQ1 2 S ZN
75WE01X25535 GE Screw
76WZ5X158D GE Screw Package of 12
123WE01X29465 GE Tube
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
400HARNESS GROMMET
401WE13X33128 GE Top Cover White
403WE01X25318 GE Screw
404WE20X23867 GE Side Panel
408WE04X25158 GE Appliance Chassis and Leg Assembly
410WE13X29562 GE Base Chassis
420WE02X23955 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804MAIN HARNESS GAS
