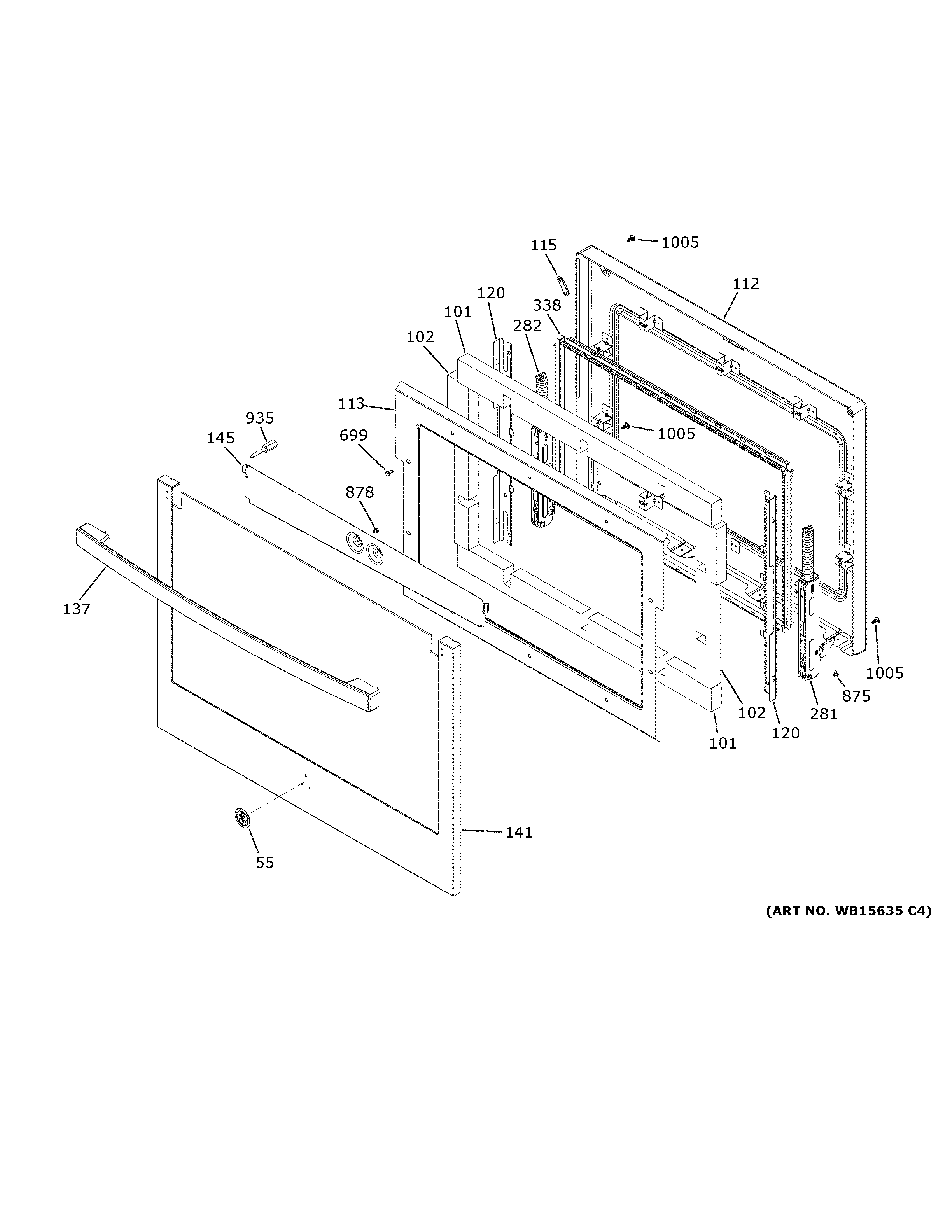

PTD9000BN1TS LOWER DOOR

PTD9000BN1TS LOWER DOOR

Written by

in

PTD9000BN1TS LOWER DOOR

Products

PositionProduct
55WB02X29637 GE Oven Badge Assembly
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
115WB02X32816 GE Oven Door Liner Plug
120LINER SUPPORT
137WB15X32882 GE Black Stainless Handle And End
141WB56X35474 GE Black Stainless Outer Door with
145DEFLECTOR OVEN DOOR
281WB10X33854 GE Refrigerator Soft Close Hinge Right Door
282WB10X36955 GE Soft Close Hinge Left Door
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
878GEN WB01X1178
935WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
