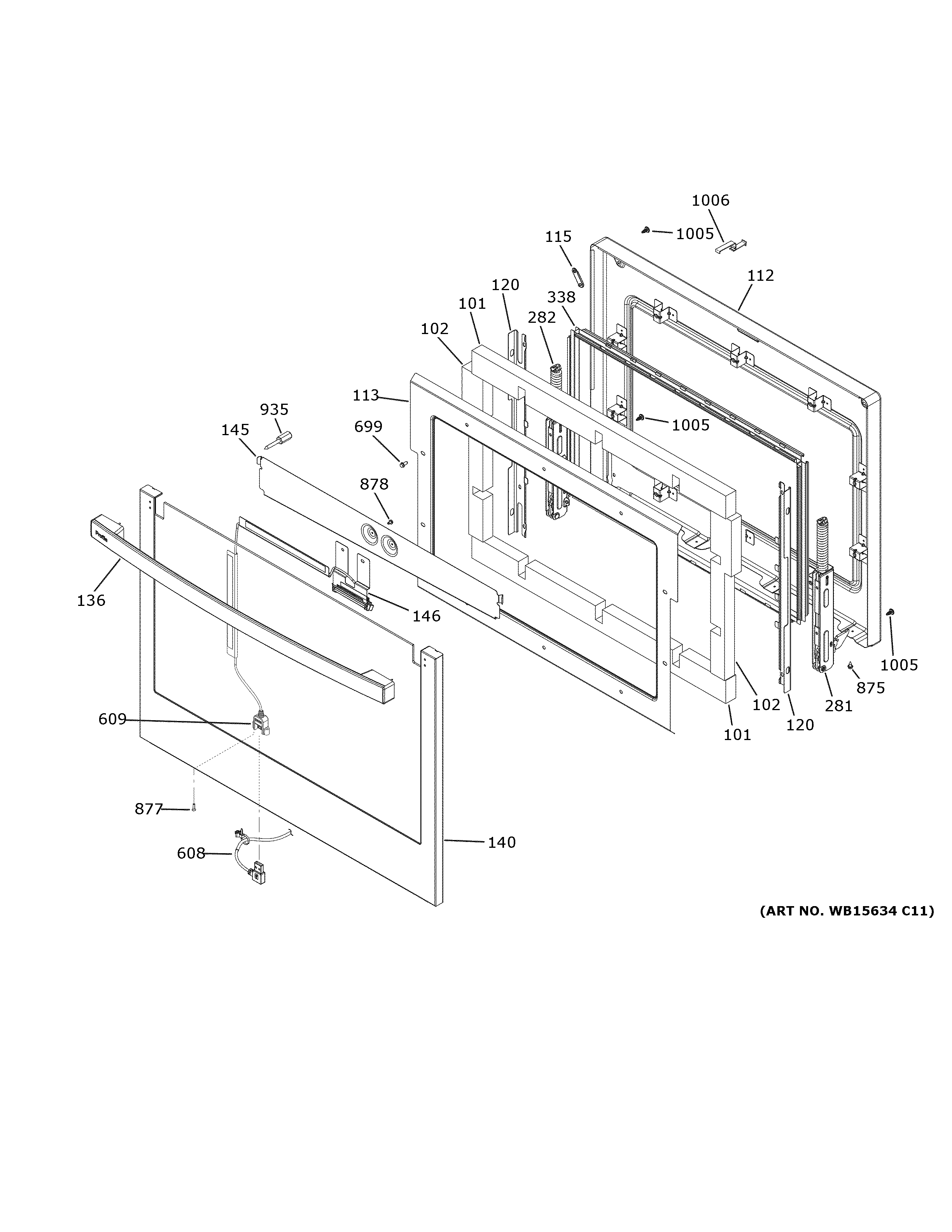

PTD9000SN1SS UPPER DOOR

PTD9000SN1SS UPPER DOOR

Written by

in

PTD9000SN1SS UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
115WB02X32816 GE Oven Door Liner Plug
120LINER SUPPORT
136WB15X32923 GE Stainless Steel Handle
140WB56X35577 GE Stainless Lower Outer Door
145DEFLECTOR OVEN DOOR
146WB34X34990 GE Camera Assembly
281WB10X33854 GE Refrigerator Soft Close Hinge Right Door
282WB10X36955 GE Soft Close Hinge Left Door
338WB56X27662 GE Window Pack Assembly
608WB18X35000 GE Camera Wire Harness
609WB18X35646 GE Door Wire Harness for Camera
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
877SCREW 6-32 FLT-10 1/4
878GEN WB01X1178
935WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
1006WB01X41366 GE Dehydrate Door Stop
