PTD9000SN5SS CENTER SPACER – Aparts

PTD9000SN5SS CENTER SPACER

Products

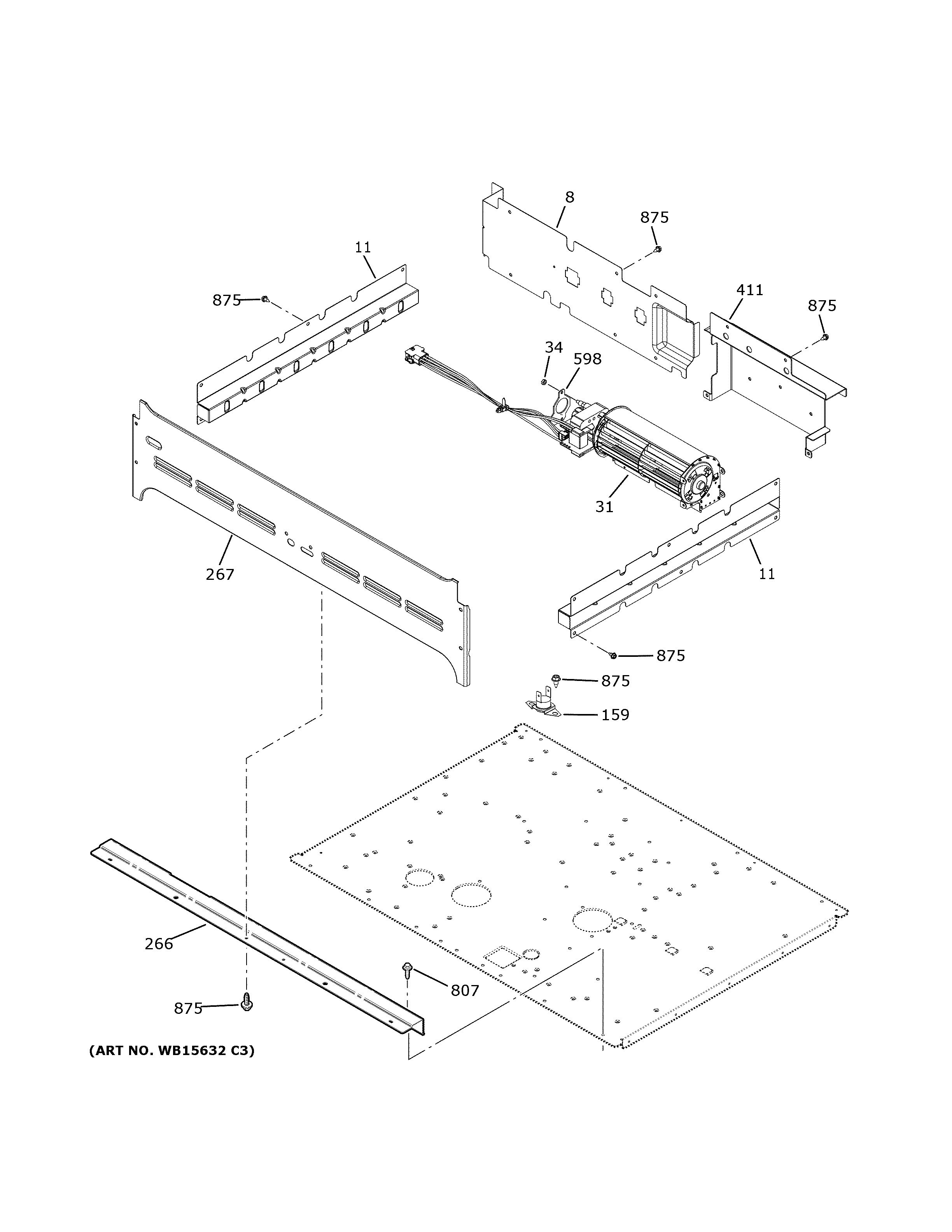

Position	Product
8	EXTENSION REAR
11	EXTENSION SIDE
31	COOLING FAN LOWER
34	WB01T10133 GE Hex Nut M4-0.7 Thread
159	WB24X46907 GE High Limit Switch
266	WB07X32831 GE Upper Trim Vent
267	TRIM VENT MIDDLE
411	BRACKET FAN MOUNTING LOWER
598	WB27X28659 GE Oven Sensor Board
807	WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
875	WH2X930 GE Screw
