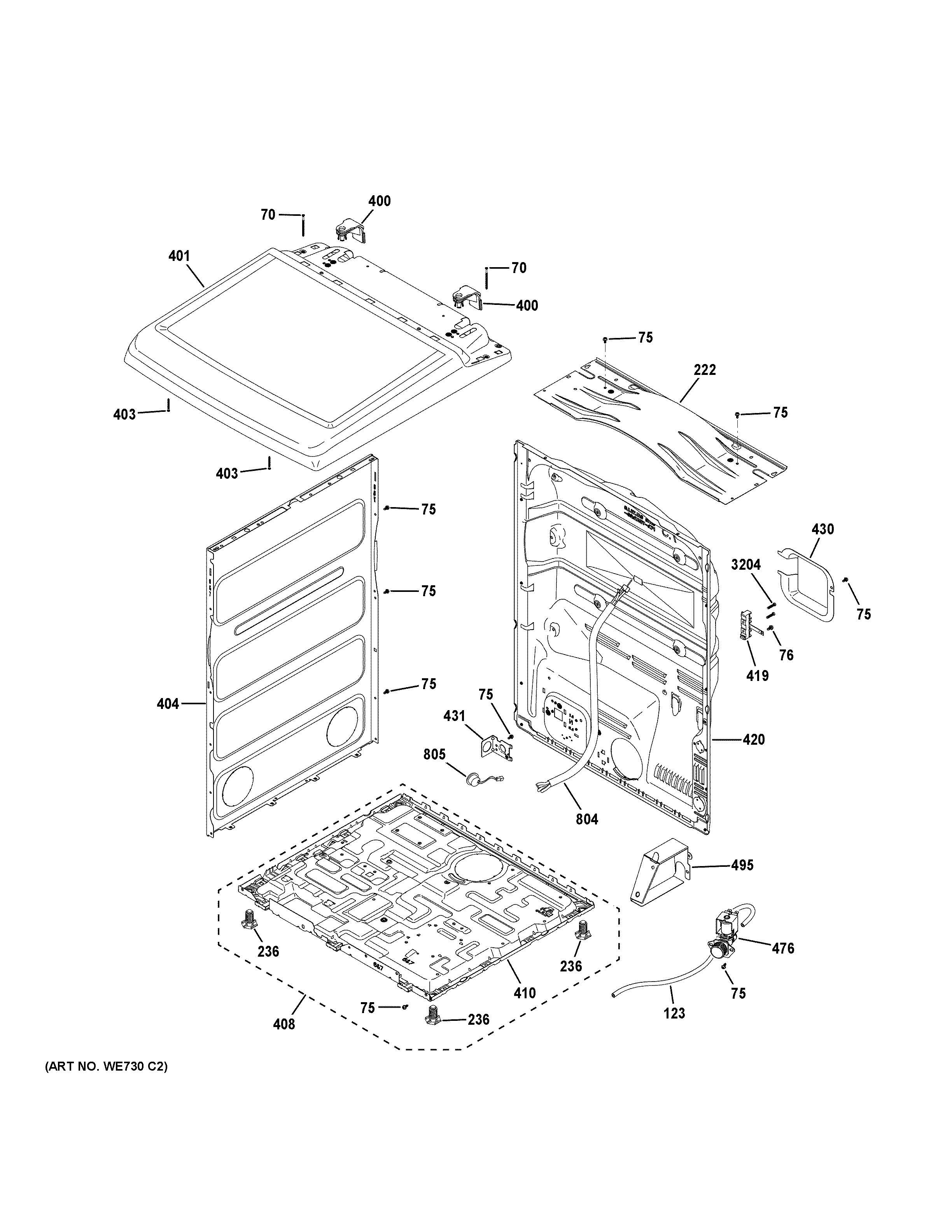

PTD90EBPT0DG CABINET & TOP PANELadmin2025-04-26T09:50:42+00:00PTD90EBPT0DG CABINET & TOP PANEL ProductsPositionProduct70WE2M304 GE Screw 8-18 AB OVQ1 2 S ZN75WE01X25535 GE Screw76WZ5X158D GE Screw Package of 12123WE01X29465 GE Tube222WE03X23883 GE Bottom Cover236WE01X29357 GE Washer Levelling Leg400HARNESS GROMMET401WE13X33129 GE Top Cover Diamond Gray403WE01X25318 GE Screw404WE20X26817 GE Side Panel408WE13X29562 GE Base Chassis410WE04X25158 GE Appliance Chassis and Leg Assembly419WE4M325 GE Dryer Terminal Block and Ground Strap420WE02X23955 GE Rear Panel430WE1M1007 GE Terminal Fuse Cover431WE01X20423 GE Strain Relief Bracket476WE4M503 GE Water Valve495WE1M933 GE Dryer Water Valve Shield804WE08X37199 GE Electric Dryer Main Harness805WE08X33647 GE High Limit Harness3204WZ4X241D GE Screw Package
