PTD90EBPT0DG DOOR

PTD90EBPT0DG DOOR

Written by

in

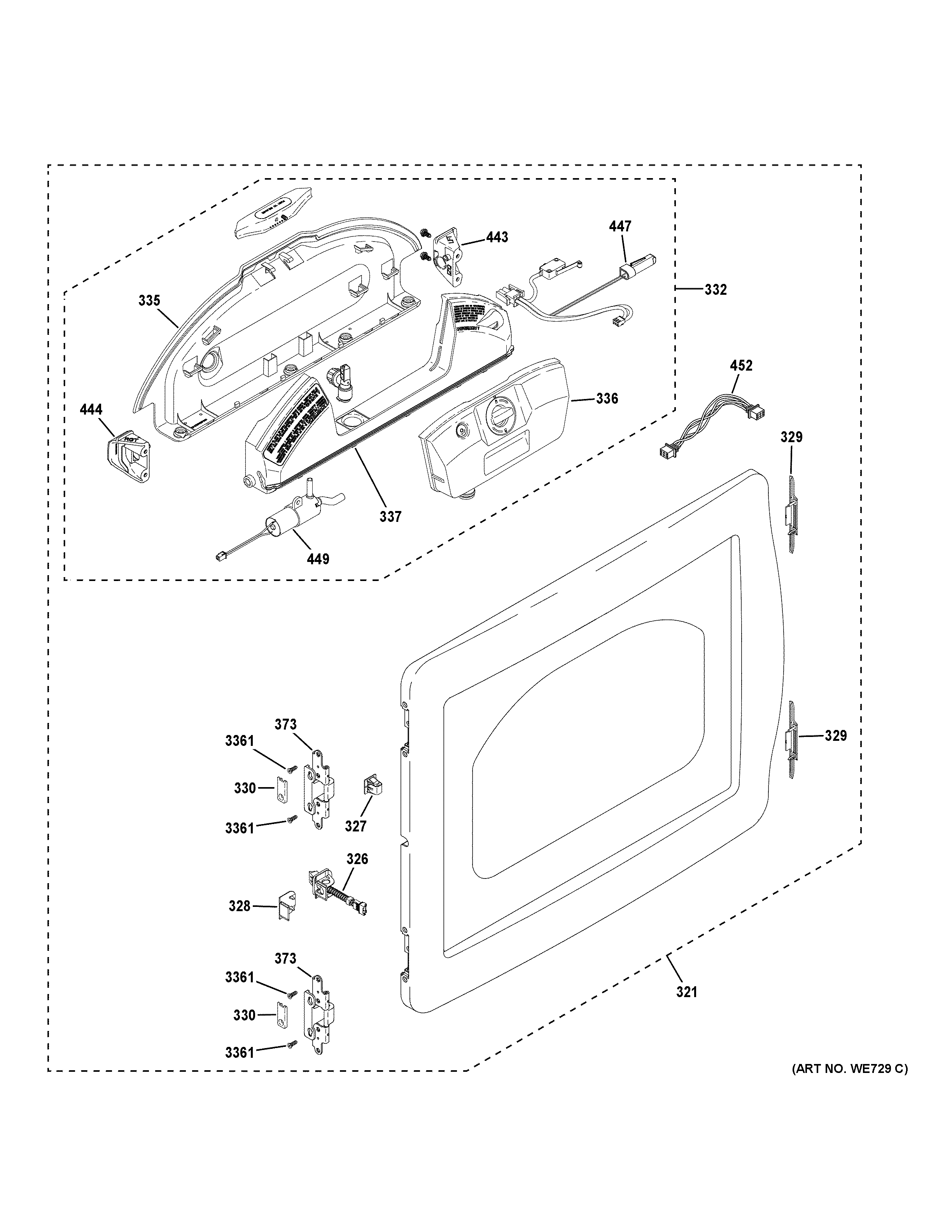

PTD90EBPT0DG DOOR

Products

PositionProduct
321WE10X36157 GE Door Assembly
326WE08X34109 GE Harness Pivot Assembly
327LATCH
328WE01X33135 GE Beauty Plug Latch
329WE01X33136 GE Beauty Plug
330WE01X33134 GE Door Hinge Cap
332WE01X36158 GE Scent Dispenser Assembly
335WE01X34099 GE Scent Dispenser Cover
336SCENT DISPENSER TANK
337SUPPORT ASM
373WE01X34338 GE Hinge Assembly
443WE01X34105 GE Scent Dispenser Cover Bracket
444WE01X34106 GE Bracket Scent Dispenser Cover
447SCENT DISPENSER REED SWITCH &
449PUMP
452WE08X34108 GE Asm Hinge Harness
3361WE2M302 GE Screw
