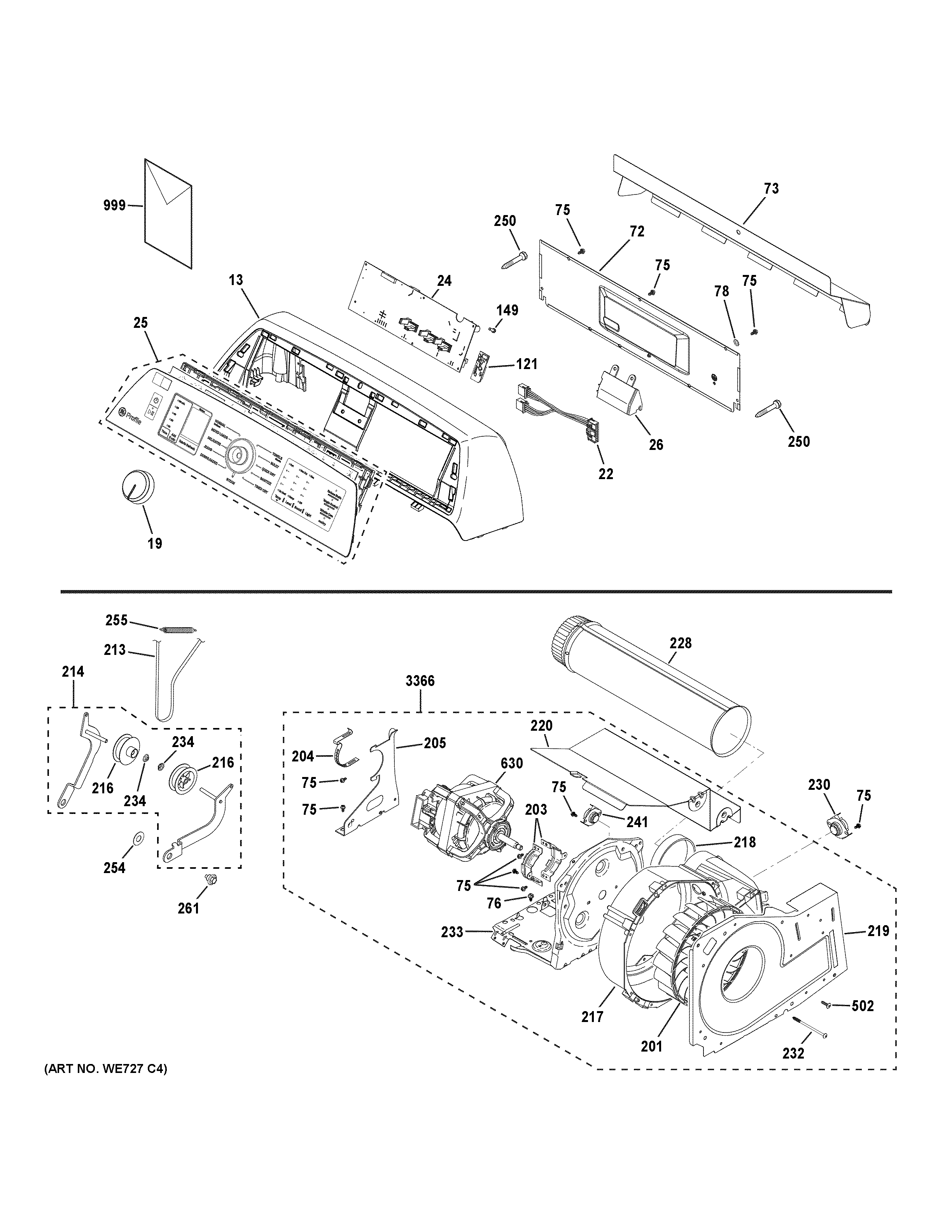

PTD90EBPT1DG BACKPLASH, BLOWER & MOTOR ASSEMBLY

PTD90EBPT1DG BACKPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

PTD90EBPT1DG BACKPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
13WE10X33198 GE Control Panel Housing Diamond
19WH01X35377 GE Selector Knob
22WE08X33257 GE UI Harness Assembly
24WE22X34377 GE Main Board and Instructions
25BOARD UI & IMD ASM
26WE01X33125 GE Support Bracket Board
72WE20X24556 GE Back Panel
73WE1M723 GE Heat Shield Rear
75WE01X25535 GE Screw
76WZ5X158D GE Screw Package of 12
78WE01X26154 GE Washer
121WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201WH16X34317 GE Blower Wheel
203WE13X30697 GE Washer Motor Strap
204WE1X921 GE Motor Strap
205WE13X34477 GE Motor Support and Nut Assembly
213DRIVE BELT
214WE03X38319 GE Dishwasher Idler Arm Left & Right Assembly
216PULLEY
217WE13X29560 GE Blower Housing
218WE09X27636 GE Exhaust Blower Gasket
219WE13X29444 GE Blower Plate
220WE1M976 GE Thermostat Shield
228WE01X23893 GE Exhaust Duct
230WE04X31007 GE Thermostat
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
241WE4M448 GE Washer Thermistor
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
254NYLON WASHER
255WE1M735 GE Idler Spring
261IDLER PIVOT SCREW
502WE2M174 GE Screw #10
630WE03X33640 GE Motor and Pulley Assembly
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
3366WE03X33639 GE Blower & Motor Assembly
