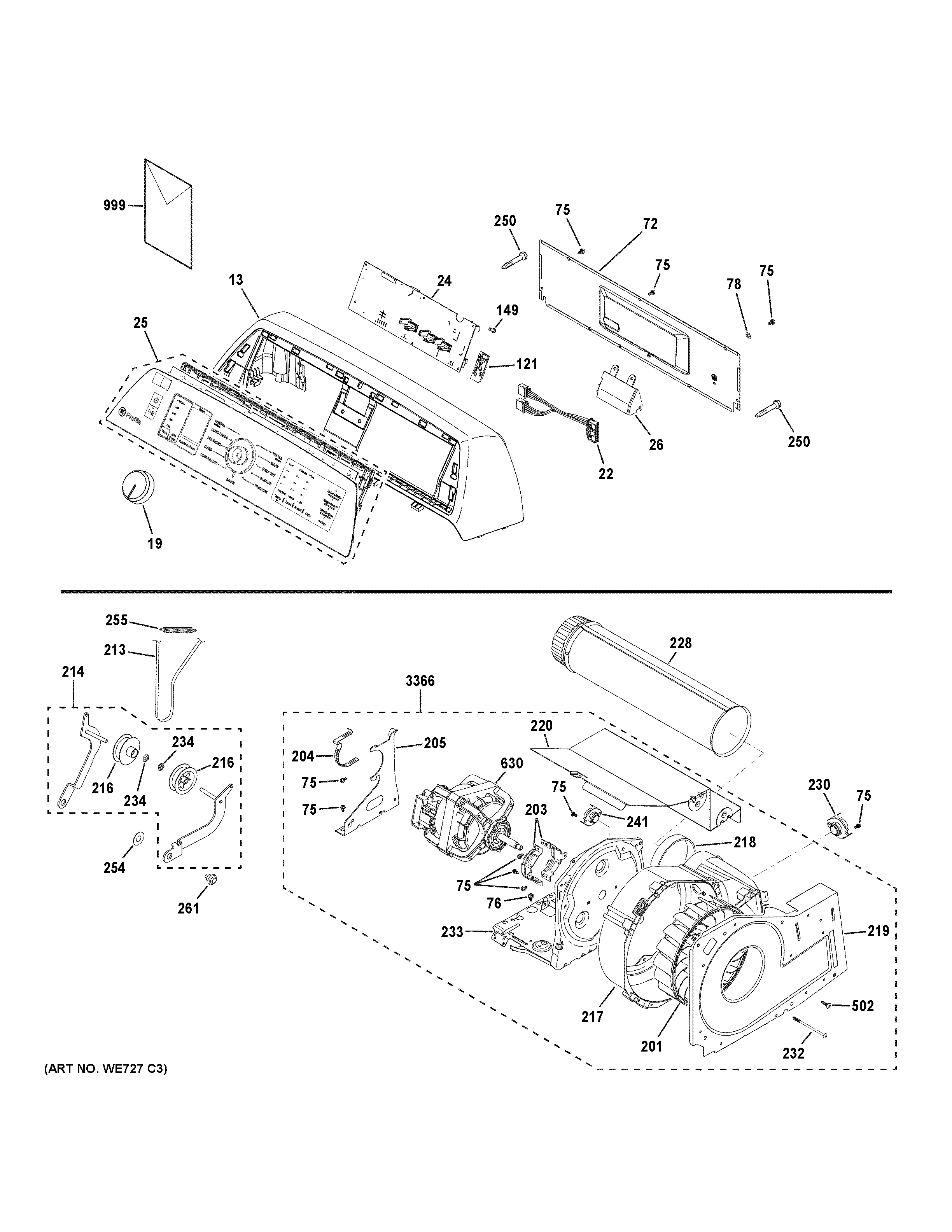

PTD90GBPT1RS BACKSPLASH, BLOWER & MOTOR ASSEMBLYadmin2025-04-26T09:51:27+00:00PTD90GBPT1RS BACKSPLASH, BLOWER & MOTOR ASSEMBLY ProductsPositionProduct13BACKSPLASH19WH01X35377 GE Selector Knob22WE08X33257 GE UI Harness Assembly24WE22X34377 GE Main Board and Instructions25BOARD UI & IMD ASM26WE01X33125 GE Support Bracket Board72WE20X24556 GE Back Panel75WE01X25535 GE Screw76WZ5X158D GE Screw Package of 1278WE01X26154 GE Washer121WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions149WR01X10196 GE Refrigerator Screw 8-18 HID02201WH16X34317 GE Blower Wheel203WE13X30697 GE Washer Motor Strap204WE1X921 GE Motor Strap205WE13X34477 GE Motor Support and Nut Assembly213DRIVE BELT214WE03X38319 GE Dishwasher Idler Arm Left & Right Assembly216PULLEY217WE13X29560 GE Blower Housing218WE09X27636 GE Exhaust Blower Gasket219WE13X29444 GE Blower Plate220WE1M976 GE Thermostat Shield228WE01X23893 GE Exhaust Duct230WE04X31007 GE Thermostat232WE2M202 GE Screw233WE03X23858 GE Motor Plate234GEN WE2M96?241WE4M448 GE Washer Thermistor250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW254NYLON WASHER255WE1M735 GE Idler Spring261IDLER PIVOT SCREW502WE2M174 GE Screw #10630WE03X33640 GE Motor and Pulley Assembly999PM OWNERS AND INSTALL999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING3366WE03X33639 GE Blower & Motor Assembly
