PTD915BM1BB WARMING DRAWER

PTD915BM1BB WARMING DRAWER

Written by

in

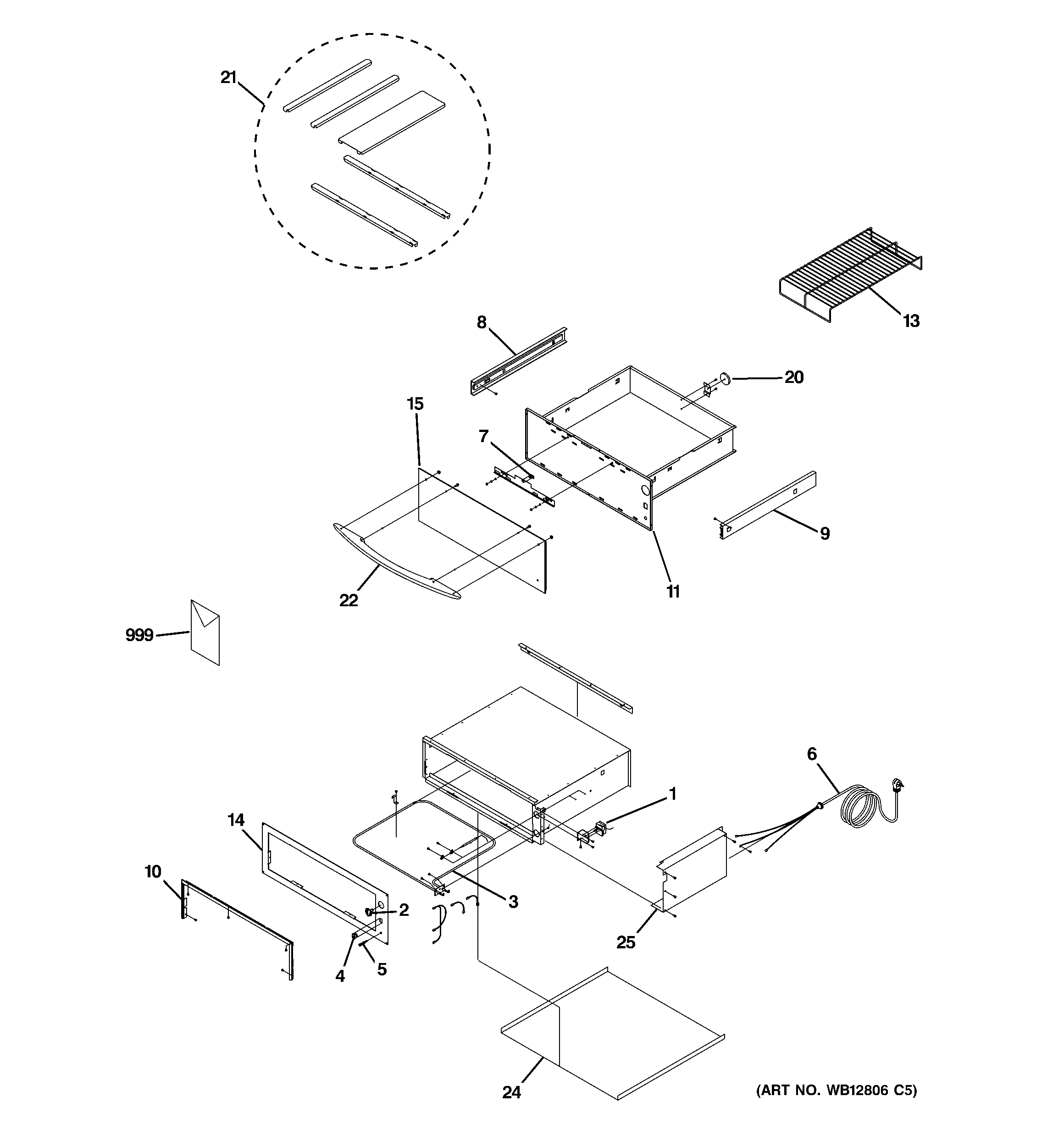

PTD915BM1BB WARMING DRAWER

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5GEN WB02X10819
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB39X10014
9GEN WB39X10015
10GEN WB02X11289
11WB58X10018 GE Oven Unitized Pan Weldment 30"
13WB48X10045 GE Wire Rack
14GEN WB56X10779
15GEN WB55X10913
20GEN WB02X11339
21WB64X10032 GE Oven 30" Rail Service Kit Assembly
22WB15T10136 GE Oven Drawer Handle
24WB56X10780 GE Oven Bottom Cover 30 Inch
25GEN WB02X11007
999USE & CARE MANUAL
