PTDN800GM0WW DRUM, BLOWER & MOTOR – Aparts

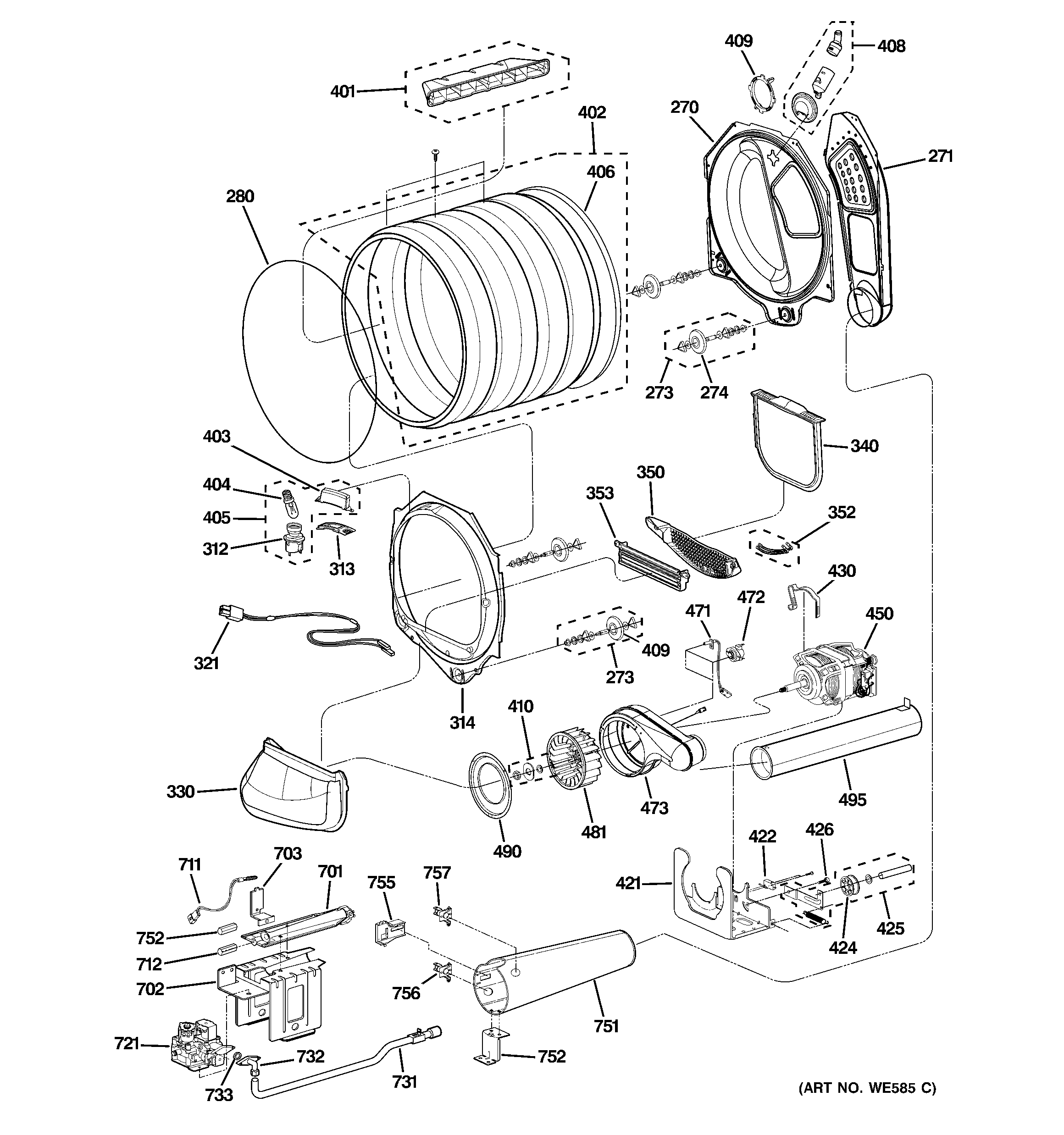

PTDN800GM0WW DRUM, BLOWER & MOTOR

Products

Position	Product
270	GEN WE21X10019
271	GEN WE14X10098
273	WE03X10008 GE Dryer Roller Assembly
274	GEN WE03X10012
280	WE12X10011 GE Belt
312	SOCKET- LAMP
313	COVER BRACKET - LAMP
314	DRUM FRONT ASM
321	GEN WE04X10159
330	BLOWER DUCT ASM
340	GEN WE18X10019
350	GEN WE14X10089
352	SENSOR ASM
353	GEN WE14X10091
401	GEN WE14X10090
402	GEN WE21X10018
403	GEN WE01X10284
404	GEN WE04X10131
405	GEN WE04X10160
406	SEAL- REAR DRUM
408	GEN WE01X10289
409	ROLLER ASM
410	GEN WE02X10091
421	GEN WE13X10030
422	IDLER SWITCH
424	IDLER PULLEY
425	IDLER PULLEY ASM
426	GEN WE02X10103
426	GEN WE02X10062
430	CLAMP MOTOR
450	MOTOR ASM
471	OUTLET THERMISTOR
472	OUTLET THERMOSTAT
473	GEN WE14X10079
481	GEN WE16X10004
490	BLOWER GUIDE SUPPORT
495	GEN WE14X10093
701	GEN WE11X10014
702	GEN WE11X10015
703	GEN WE01X10199
711	WE04X10116 GE Igniter
712	GEN WE01X10240
721	GEN WE01X10243
731	WE01X10202 GE Pipe Assembly
732	GEN WE01X10203
733	GEN WE01X10204
751	GEN WE14X10063
752	GEN WE01X10205
755	GEN WE04X10117
756	GEN WE04X10118
757	GEN WE04X10142
