PTDN805EM0MS DRUM, BLOWER & MOTOR – Aparts

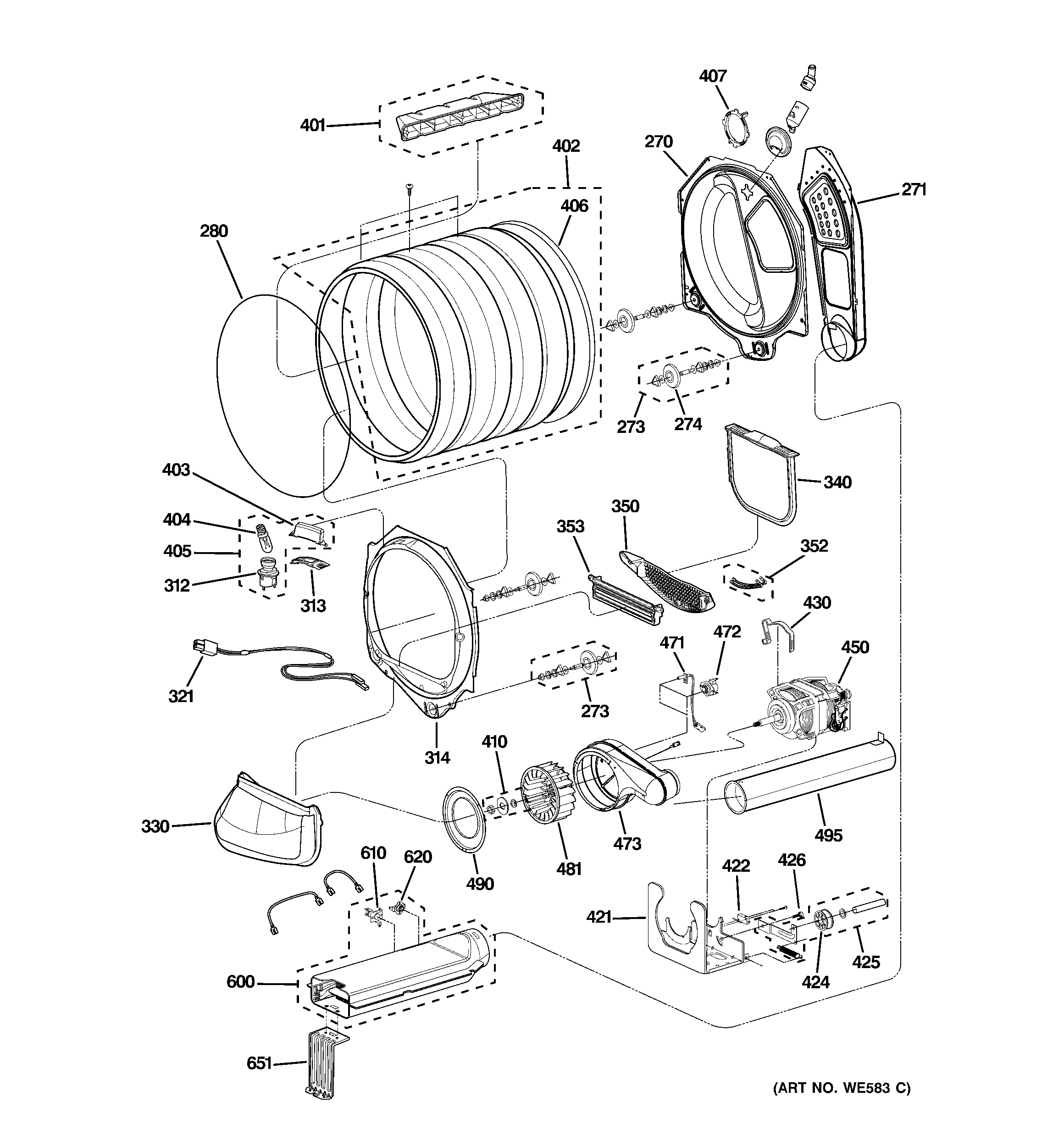

PTDN805EM0MS DRUM, BLOWER & MOTOR

Products

Position	Product
270	GEN WE21X10019
271	GEN WE14X10092
273	WE03X10008 GE Dryer Roller Assembly
274	ROLLER ASM
280	WE12X10011 GE Belt
312	SOCKET- LAMP
313	COVER BRACKET - LAMP
314	DRUM FRONT ASM
321	GEN WE04X10159
330	BLOWER DUCT ASM
340	GEN WE18X10019
350	GEN WE14X10089
352	SENSOR ASM
353	GEN WE14X10091
401	GEN WE14X10090
402	GEN WE21X10018
403	GEN WE01X10284
404	GEN WE04X10131
405	GEN WE04X10160
406	SEAL- REAR DRUM
407	GEN WE01X10289
410	GEN WE02X10091
421	GEN WE13X10030
422	IDLER SWITCH
424	IDLER PULLEY
425	IDLER PULLEY ASM
426	GEN WE02X10062
430	CLAMP MOTOR
450	MOTOR ASM
471	OUTLET THERMISTOR
472	OUTLET THERMOSTAT
473	GEN WE14X10079
481	GEN WE16X10004
490	BLOWER GUIDE SUPPORT
495	GEN WE14X10093
600	GEN WE11X10020
610	GEN WE04X10145
620	GEN WE04X10161
651	GEN WE01X10242
