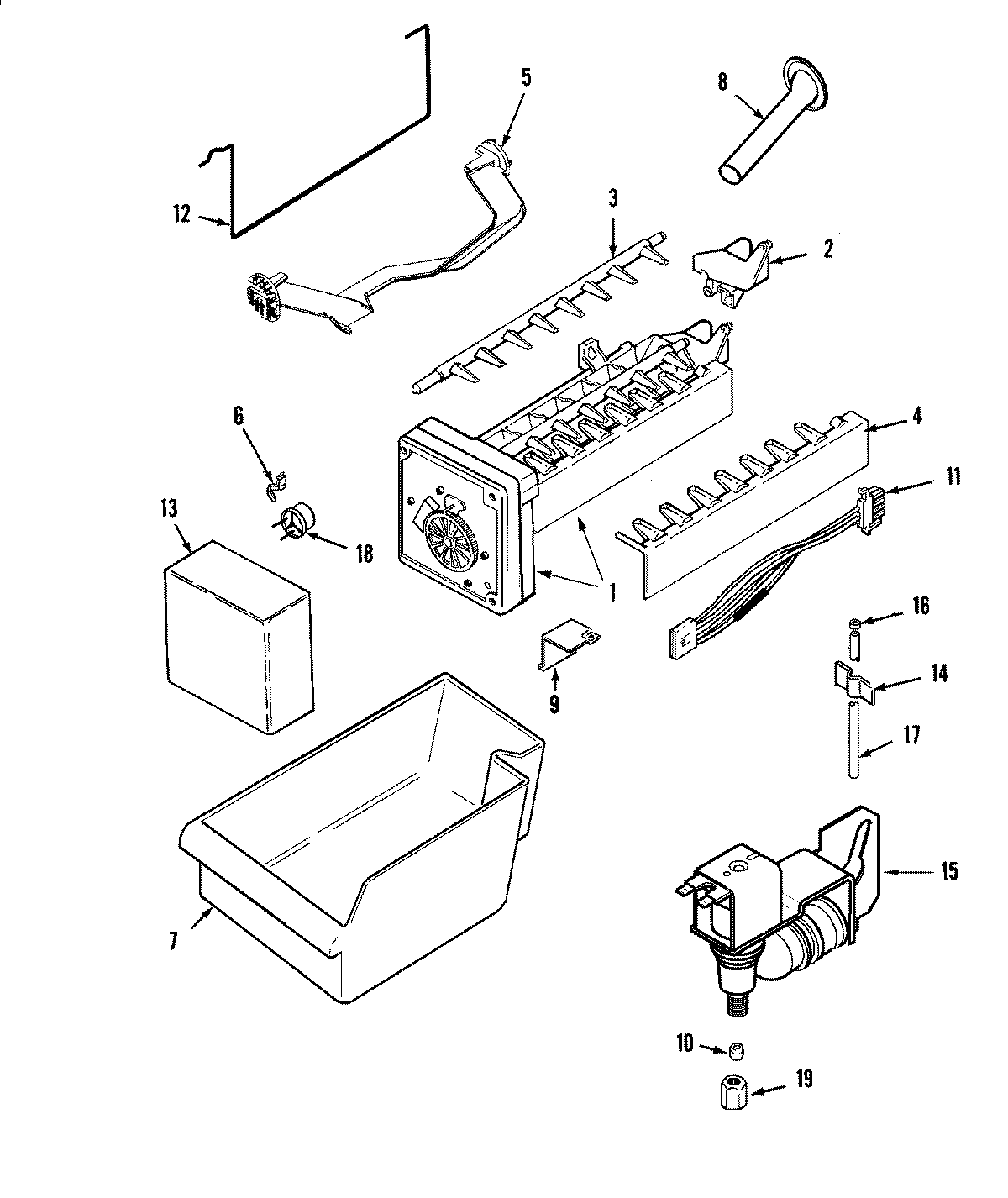

PTF216LHRQ 08 – ICE MAKER

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP489474 Whirlpool Refrigerator Screw
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 61005174
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61005940
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	WP487627 Whirlpool Refrigerator Sleeve
11	MAY 61001882
12	MAY 61005175
12	MAY 61005173
13	MAY 61005374
14	SCREW
14	MAY 61004913
14	W10833902 Whirlpool Refrigerator Clamp
15	WP61005273 Whirlpool Refrigerator Inlet Valve
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 61004390
18	MAY 95093-1
18	WP627985 Whirlpool Icemaker Cycling Thermostat
19	WP245183 Whirlpool Nut
