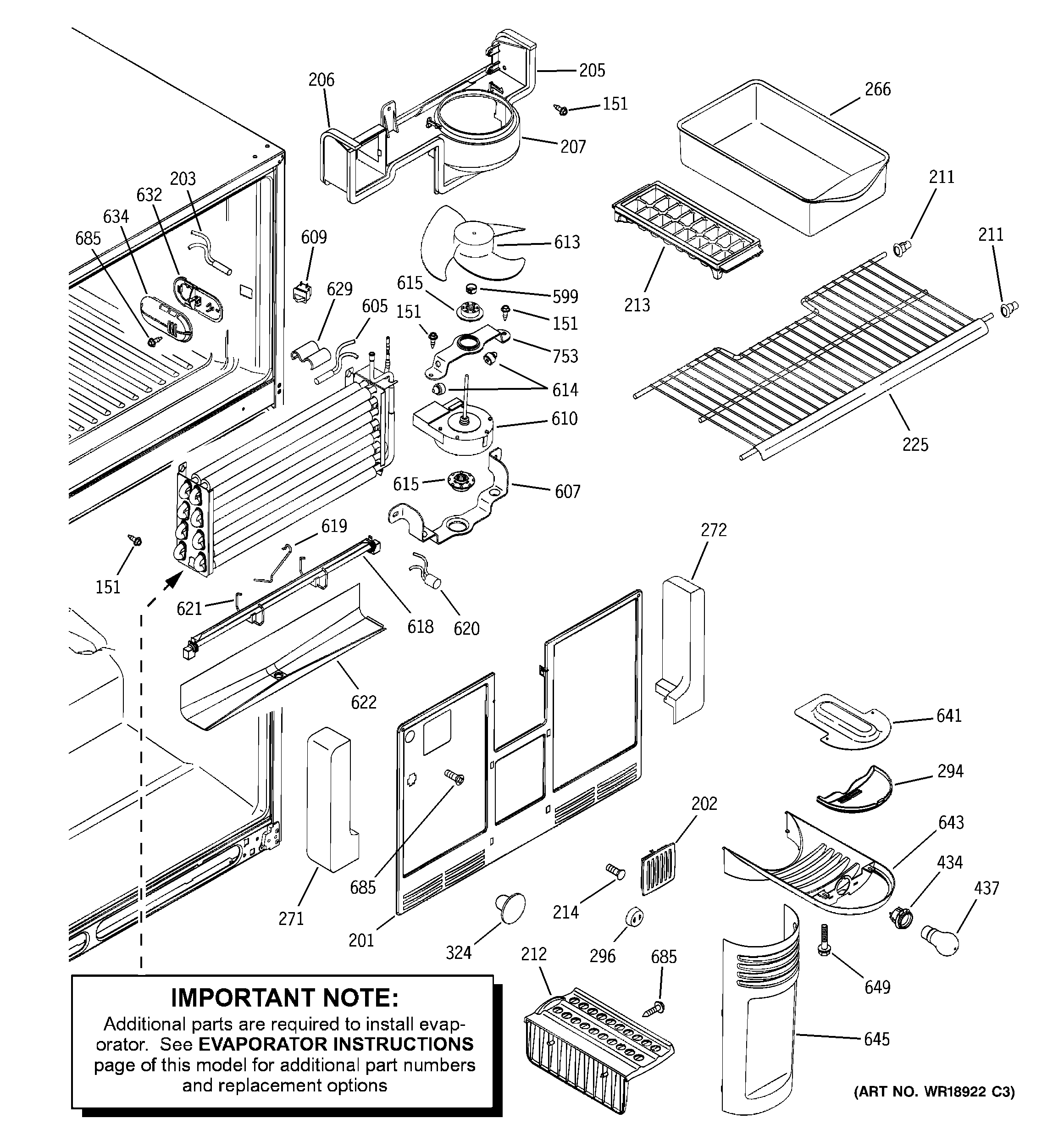

PTS22LBMARAA FREEZER SECTION

PTS22LBMARAA FREEZER SECTION

Written by

in

PTS22LBMARAA FREEZER SECTION

Products

PositionProduct
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
201GEN WR17X10968
202GEN WR72X10071
203WR55X10025 GE Refrigerator Temperature Sensor
205GEN WR14X10111
206GEN WR14X10110
207GEN WR17X10979
211GEN WR02X7973
212GEN WR30X10025
213WR30X10026 GE Refrigerator Ice Tray
214GEN WR02X10694
225GEN WR71X10322
266GEN WR30X10027
271GEN WR02X10877
272GEN WR02X10878
294GEN WR02X10883
296WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
324GEN WR02X7051
434WR02X30348 GE Refrigerator Lamp Socket
437RANGE ONLY 40W 120V APPL BULB
599WR02X12149 GE Refrigerator Ring
607GEN WR02X10876
609WR23X37285 GE Light Switch
610WR60X10185 GE Refrigerator Evaporator Fan Motor
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10068 GE Refrigerator Defrost Thermostat
621WR02X10518 GE Refrigerator Element Holder
622TROUGH DRAIN ASM
629WR02X10879 GE Refrigerator Evaporator Thermistor Clip
632GEN WR02X10863
634GEN WR02X10872
641GEN WR02X10887
643GEN WR17X10983
645GEN WR17X10987
649WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
753WR02X10764 GE Refrigerator Evaporator Bracket
