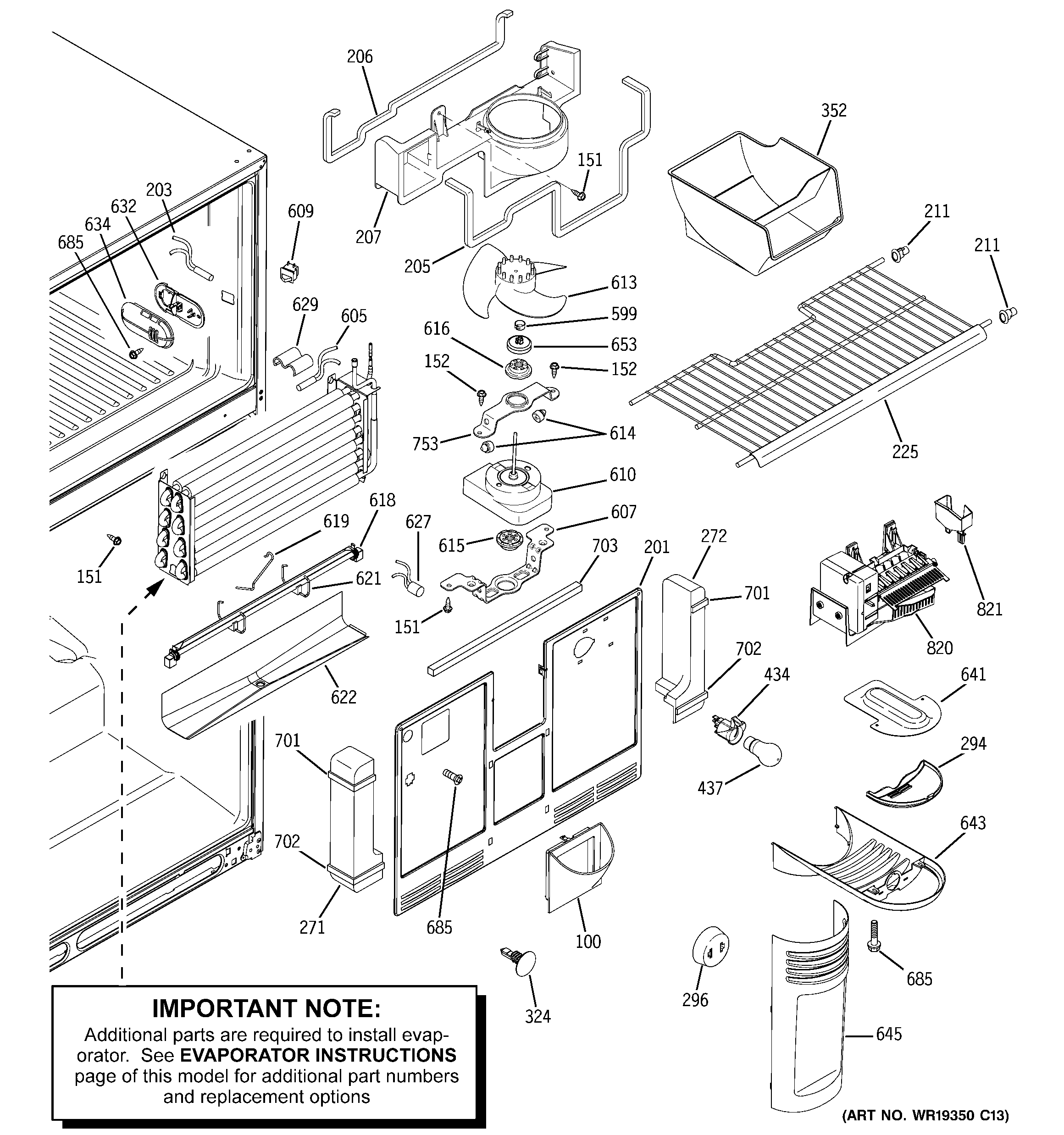

PTS22LHRARBB FREEZER SECTION

PTS22LHRARBB FREEZER SECTION

Written by

in

PTS22LHRARBB FREEZER SECTION

Products

PositionProduct
100GEN WR74X10095
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152WR01X10287 GE Refrigerator Screw 10-32 HX
201GEN WR17X10968
203WR55X10025 GE Refrigerator Temperature Sensor
205GEN WR14X10124
206GEN WR14X10123
207GEN WR17X10979
211GEN WR02X7973
225GEN WR71X10311
271GEN WR02X11181
272GEN WR02X11182
294GEN WR02X11180
296WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
324GEN WR02X7051
352WR30X10154 GE Refrigerator Ice Bucket Assembly
434WR02X30348 GE Refrigerator Lamp Socket
437RANGE ONLY 40W 120V APPL BULB
599WR02X12149 GE Refrigerator Ring
607GEN WR02X10876
609WR23X37285 GE Light Switch
610WR60X10228 GE Refrigerator DC Motor Evaporator Fan
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
616WR02X11331 GE Refrigerator Grommet
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
621WR02X10518 GE Refrigerator Element Holder
622TROUGH DRAIN ASM
627WR50X10068 GE Refrigerator Defrost Thermostat
629WR02X10879 GE Refrigerator Evaporator Thermistor Clip
632GEN WR02X10863
634GEN WR02X10872
641GEN WR02X10887
643GEN WR17X11171
645GEN WR17X10987
653WR02X10322 GE Refrigerator Dust Cap B02
685WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
701GEN WR14X10125
702GEN WR14X10126
703GEN WR14X10127
753WR02X10764 GE Refrigerator Evaporator Bracket
820WR30X10093 GE Refrigerator Ice Maker
821WR29X10092 GE Refrigerator Ice Maker Fill Cup
