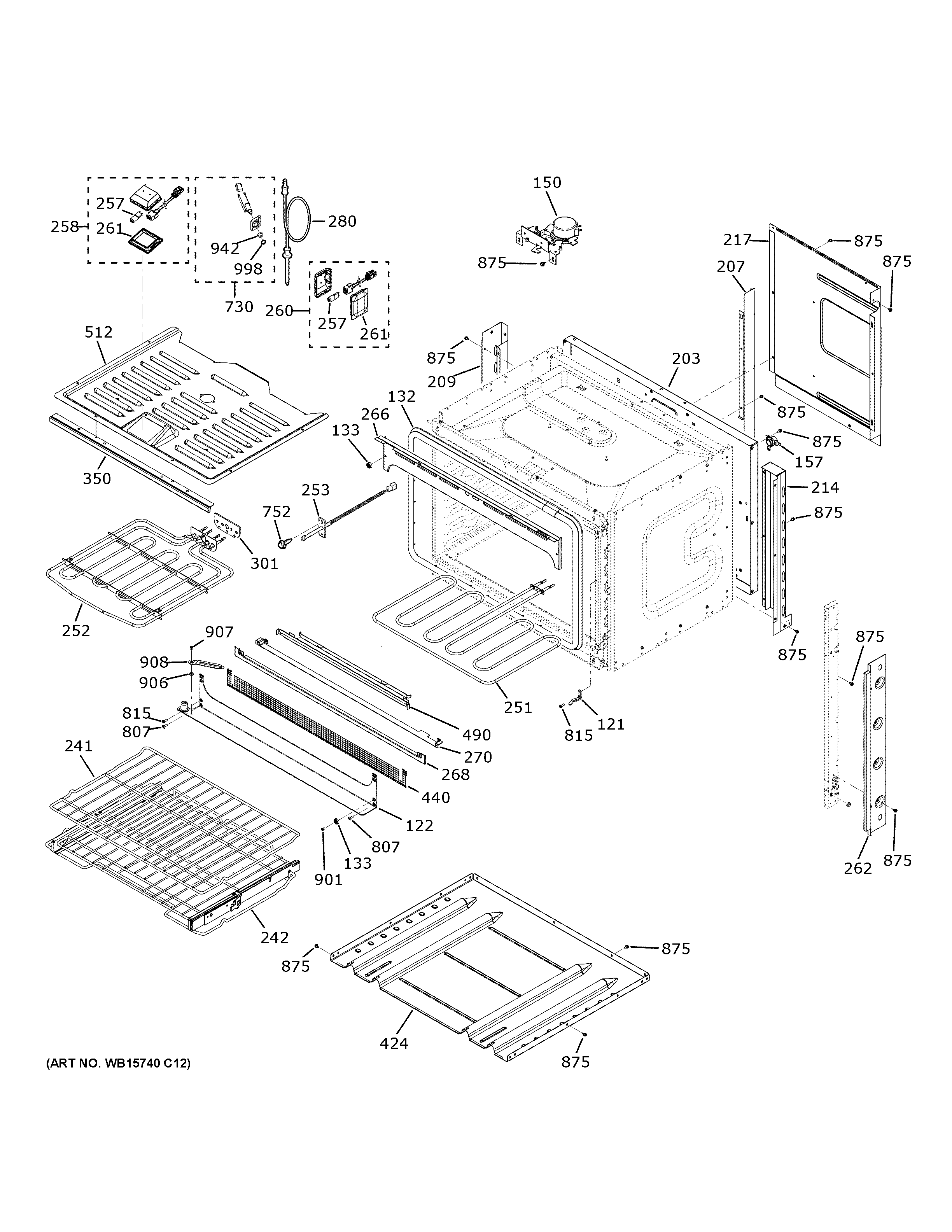

PTS700LSN4SS BODY PARTS

PTS700LSN4SS BODY PARTS

Written by

in

PTS700LSN4SS BODY PARTS

Products

PositionProduct
121STRIKE DOOR
122BRACKET LOWER LEFT HINGE
132WB35X32825 GE Oven Door Gasket
133WB02X23561 GE Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203WB34X40468 GE Insulation Retainer – Rear
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
241WB48X31582 GE Oven Rack
242WB48X38086 GE Oven Rack Slide Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262STAINLESS TRIM VERT SIDE (SWO)
266TRIM VENT UPPER
268STAINLESS TRIM BOTTOM
270SUPPORT TRIM BRACKET 30"
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
440SCREEN SUPPORT
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
901WB01T10012 GE Oven Screw
906WASHER OFFSET
907SCREW 8-32 TT FLT15 7/20
908LINK DOOR
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
